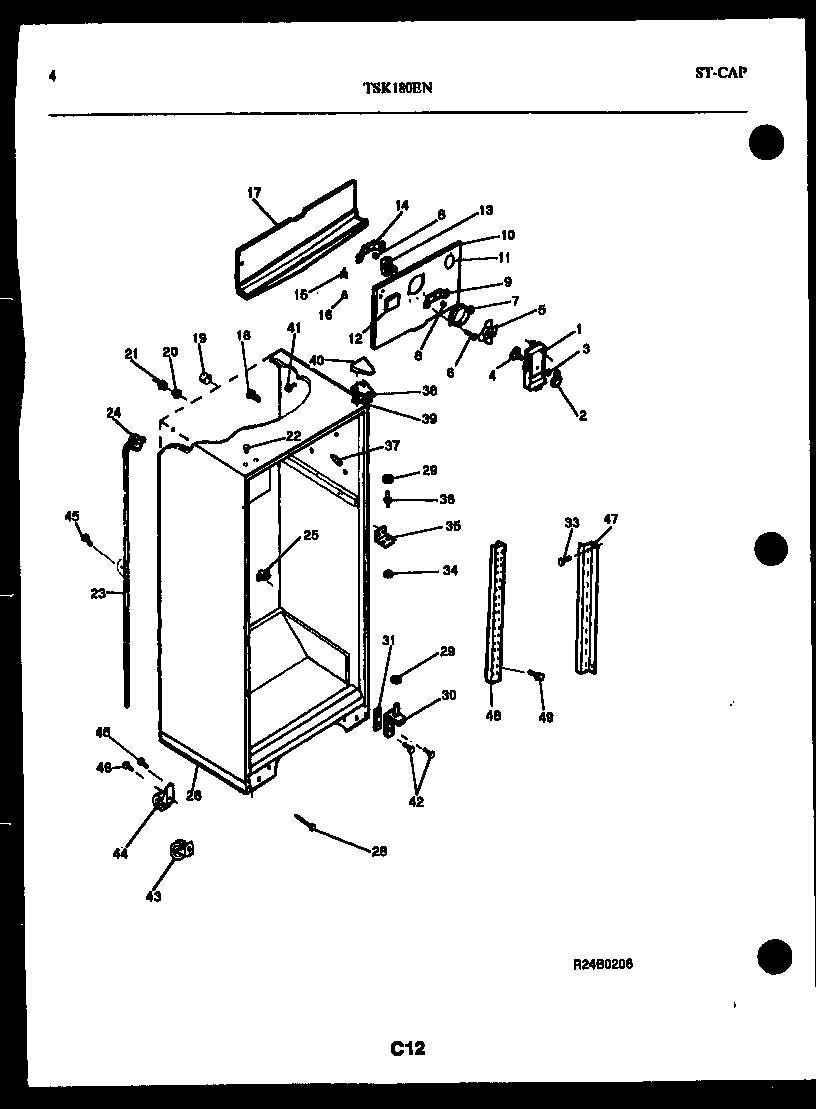

TSK180EN4W 03 – CABINET PARTS

Products

Position	Product
1	5304455650 Frigidaire Refrigerator Screw
1	WCI 5303271191
2	WCI 5308000081
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304455651 Frigidaire Refrigerator Screw
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 5308009771
11	5303208309 Frigidaire Refrigerator Plug Hole
12	BUTTON - DECORATIVE PLUG
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
15	WCI 5308000107
17	WCI 5303001470
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	PLUG-BUTTON, WHITE
23	WCI 5303210377
24	WCI 5303207353
25	WCI 5303001361
25	WCI 5308000056
26	WCI 5303212487
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WASHER, .34 X .62 X .05, NYLON
30	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE, W/ HINGE PIN
31	WCI 5303212488
33	5304455852 Frigidaire Refrigerator Screw
34	WCI 5308000186
35	BRACKET-CTR HINGE
35	WCI 5308012258
36	WCI 5308000184
37	TRIM-CABINET CORNER, WHITE
38	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
38	BRACKET-UPPER HINGE
39	SHIM - UPPER HINGE
40	COVER-UPPER HINGE, WHITE
41	5304509705 Frigidaire Refrigerator Grommet
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5303212490
44	WCI 5308009773
46	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47	CHANNEL, RH & LH
48	WCI 5303015409
49	WCI 5308016568
19360	PLUG, BUTTON, CABINET LINER (NI)
