TSK180JN0D 05 – SHELVES AND CONTROL

TSK180JN0D 05 – SHELVES AND CONTROL

Written by

in

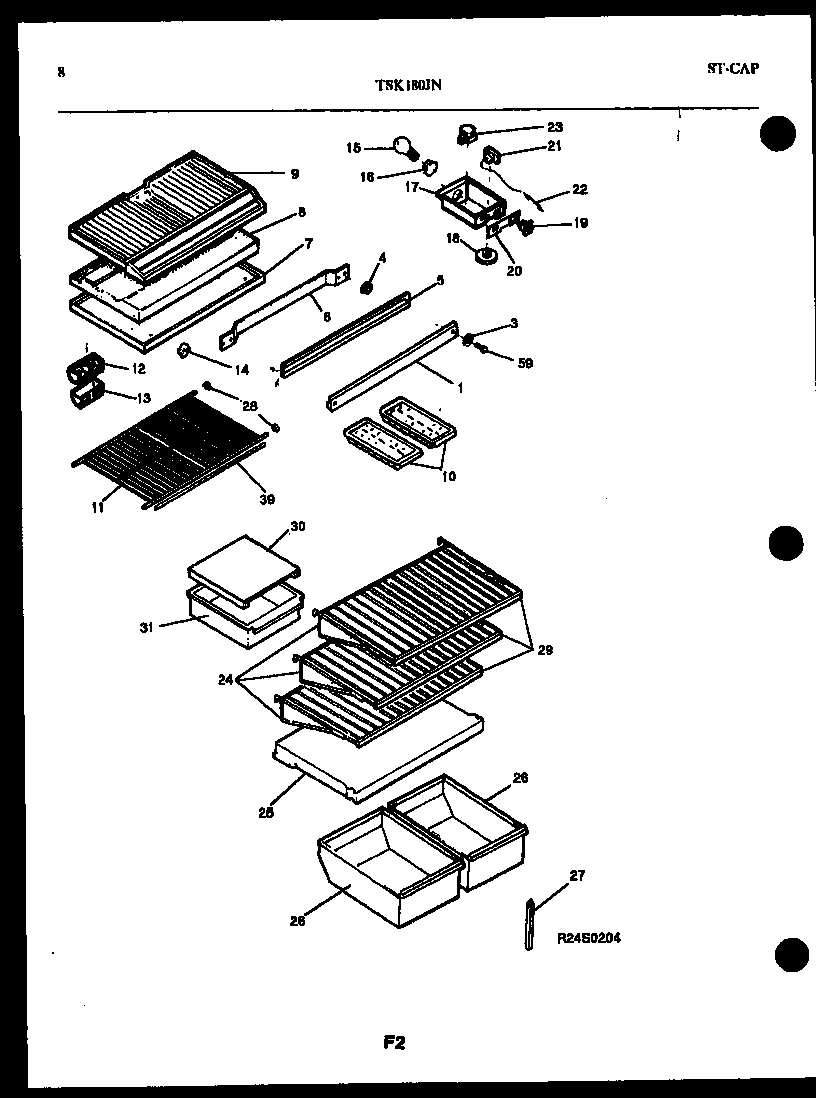

TSK180JN0D 05 – SHELVES AND CONTROL

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP PANEL-REFR, W/SNAP BUSHING
7WCI 5303001380
8HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8DIVIDER, STYROFOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303210761
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
175304455650 Frigidaire Refrigerator Screw
17WCI 5303015152
18WCI 5308010011
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 5303273167
21WCI 5303001260
21WCI 5303200810
22TUBE
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24SHELF-FULL, CANTILEVR, REFR
25COVER-CRISPER
26WCI 5303273192
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 5303273273
30WCI 5308000263
31WCI 5303273265
39CLIP-CANTILEVER SHLF
39WCI 5303273274
59WCI 5308012258
