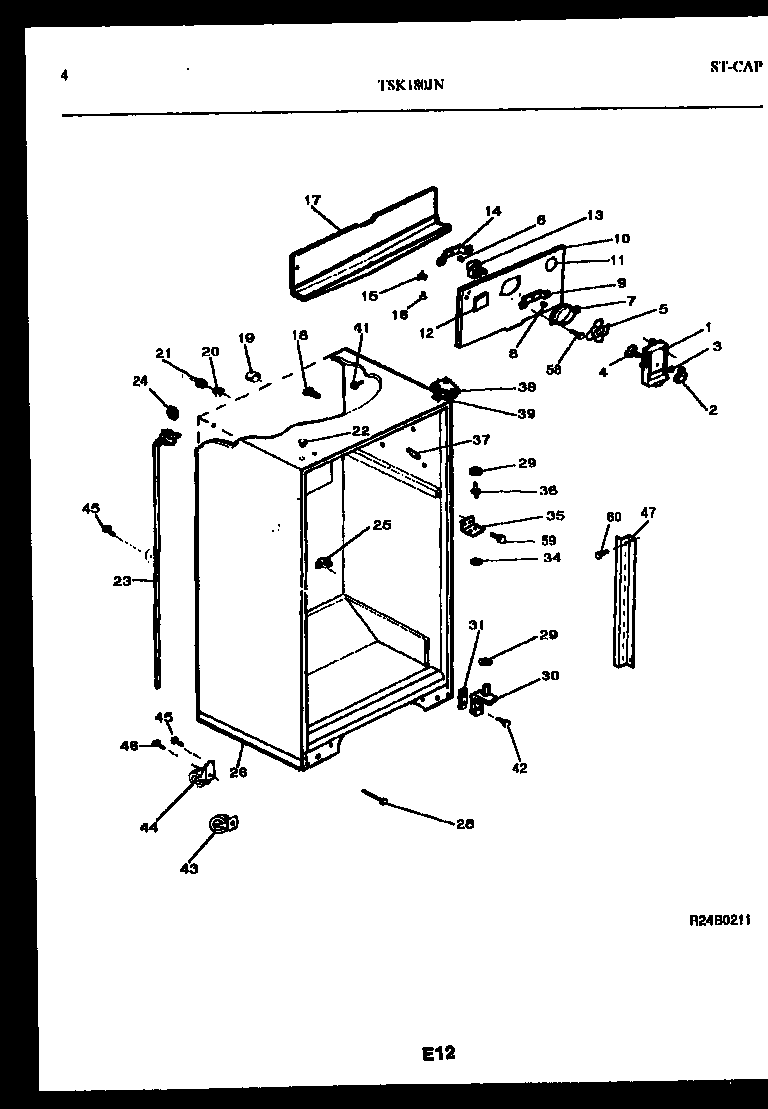

TSK180JN0W 03 – CABINET PARTS

Products

PositionProduct
*20214TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
*20214TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
15304455650 Frigidaire Refrigerator Screw
1WCI 5303200265
1WCI 5303273282
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 5308009771
10NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12BUTTON – DECORATIVE PLUG
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
17WCI 5303001470
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23WCI 5303210377
24WCI 5303207353
25WCI 5303001361
25WCI 5308000056
26WCI 5303212487
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER, .34 X .62 X .05, NYLON
30BRACKET-LOWER HINGE, W/ HINGE PIN
31WCI 5303212488
34WCI 5308000186
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
38BRACKET-UPPER HINGE
38TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
415304509705 Frigidaire Refrigerator Grommet
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47CHANNEL, RH & LH
59WCI 5308012258
605304455852 Frigidaire Refrigerator Screw
20216PLUG, BUTTON, CABINET LINER (NI)
