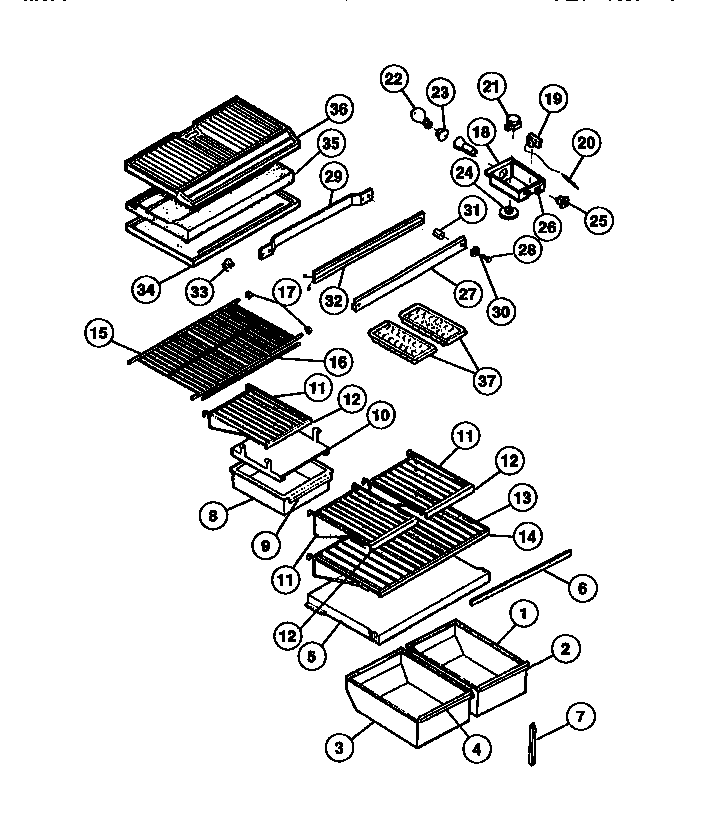

TSK206EN0D 04 – SHELVES AND SUPPORTS

Products

Position	Product
*12065	HARNESS-DIVIDER (NON-ILLUSTRATED)
1	WCI 3016529
2	WCI 3016531
3	WCI 3016530
4	TRIM-SMALL PAN
5	COVER-PAN
6	GASKET, COVER
7	WCI 3016528
8	WCI 3015333
9	WCI G161013-67
10	WCI G177106-01
11	WCI G177390-23
12	WCI G172434-09
13	WCI 3015157
14	WCI G172434-08
15	SHELF-FREEZER
16	WCI G172434-34
17	END CAP-SHELF,PROTECTOR
18	WCI G176722-03
18A	5304455650 Frigidaire Refrigerator Screw
19	WCI 3200810
19A	WCI G107080
20	TUBE
21	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
21A	5304455649 Frigidaire Refrigerator Screw
22	316538904 Frigidaire Oven Lamp Light
23	SOCKET LIGHT
24	KNOB
25	SWITCH SLIDE
26	LABEL
27	WCI 3200370
28	SCREW, BRACKET MOUNTING (4)
29	STRAP, MULLION MOUNTING
30	WASHER (2)
31	SPACER, MULLION (2)
32	WCI G177254
33	5309918806 Frigidaire Refrigerator Light Switch Door
34A	SCREW (5)
34	TOP-REFRIGERATOR
35	WCI G184683
36	WCI G184604
37	215667501 Frigidaire Refrigerator Ice Tray Primary
