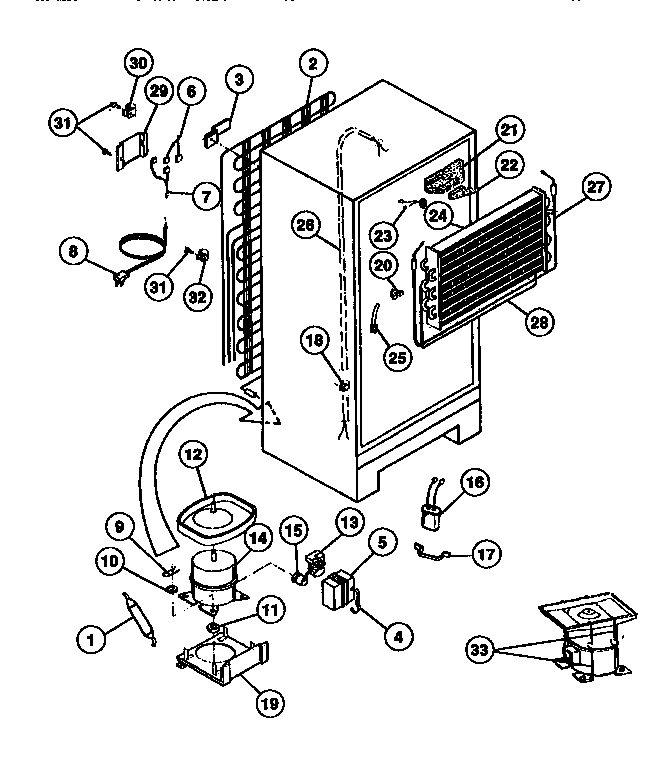

TSK206EN0F 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*12785	5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*12804	HOT TUBE REPAIR KIT
1	5303305677 Frigidaire Replacement Filter Dryer Filters
2	WCI G163133
3	BRACKET-CONDENSER MOUNTING (4)
4	5303006412 Frigidaire Refrigerator Cover Mounting Strap
6	HARNESS-DIVIDER (NON-ILLUSTRATED)
7	HARNESS-COMPRESSOR
8	CORD, SERVICE
9	CLIP, COMPRESSOR MOUNTING (4)
10	WASHER, COMPRESSOR MOUNTING (4)
11	218513300 Frigidaire Refrigerator Compressor Mount Grommet
12B	NUT, LOCK
12A	DEFROST PAN & NUT
13	WCI G182225-18
14	COMPR W/ ELECT
15	WCI G189006
16	CAPACITOR
17	STRAP-CAPACITOR
18A	5308000039 Frigidaire Refrigerator Screw
18	240396801 Frigidaire Refrigerator Tube Clamp
19	PLATE
20	BLOCK, LEFT SIDE
21	BLOCK, EVAPORATOR, RH
22	PLUG, EVAPORATOR INSULATION BLOCK, R H
23	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24	EVAPORATOR
25	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26	HEAT, EXCHANGE
27	5317842502 Frigidaire Defrost Heater
28	INSULATOR
29	WCI G183584
30	CLAMP-CABLE
31	5304455651 Frigidaire Refrigerator Screw
32	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
33	PAN RETAINER KIT-SERVICE
