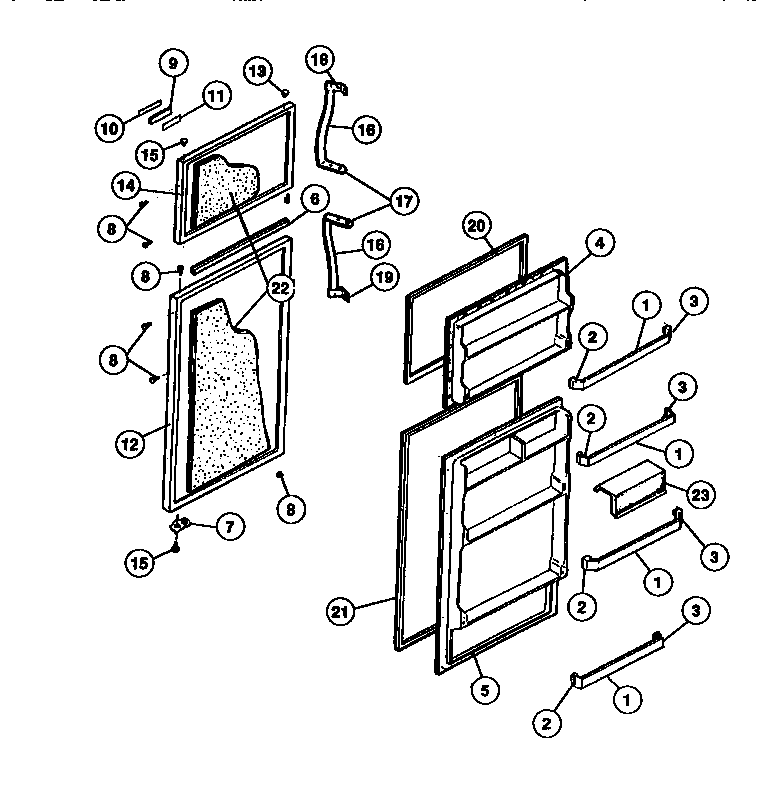

TSK206EN0W 02 – DOOR PARTS

TSK206EN0W 02 – DOOR PARTS

Written by

in

TSK206EN0W 02 – DOOR PARTS

Products

PositionProduct
1WCI 3016516
2SUPPORT LS (3)
3SUPPORT RS (3)
4WCI 3016517
5A5304455651 Frigidaire Refrigerator Screw
5INNER PANEL-REFRIGERATOR
6TRIM-REFRIGERATOR DOOR
7STOP, DOOR. PC & FC (2)
8240494001 Frigidaire Refrigerator Plug Button
9NAMEPLATE FRAME
10LABEL-NAMEPLATE
11TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
12WCI G189576
13WCI G169332-01
14WCI G189725
15BEARING, HINGE (3)
16AWCI G189456-01
16WCI G189454-02
17END-HANDLE (2)
18WCI G189452-01
19AWCI G185566
19WCI G189451-01
20GASKET
21GASKET
22INSULATION-BULK
23DAIRY DOOR (2)
