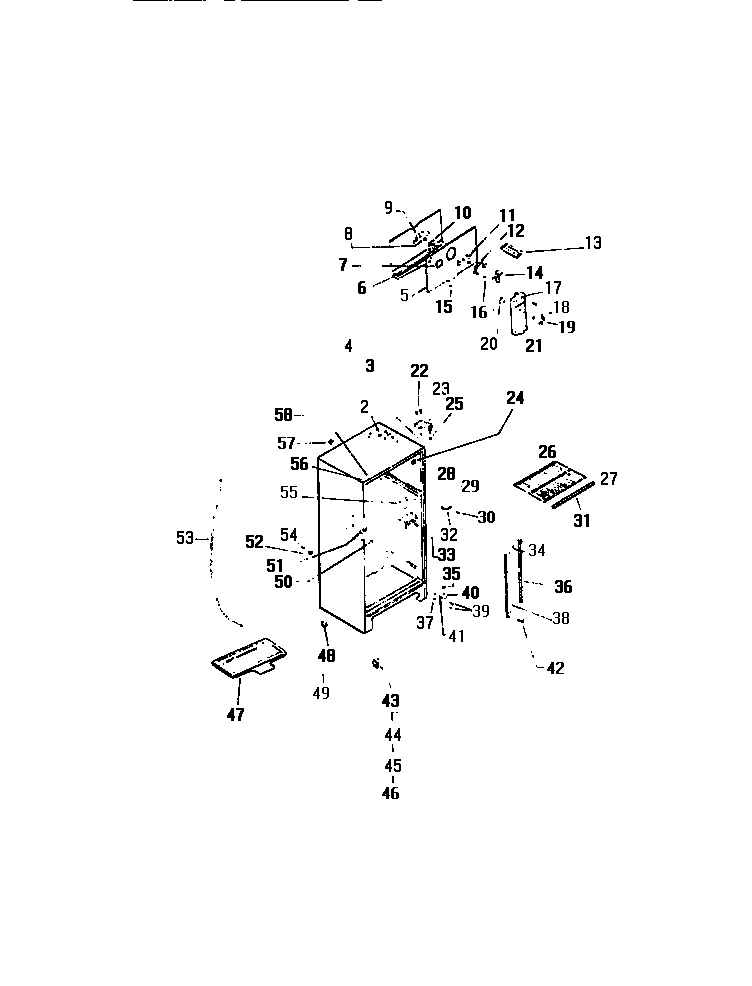

TSK210ANOT 03 – CABINET W/ FAN ASSEMBLY

Products

Position	Product
*44297	COVER HINGE, WHEAT
*44295	WCI G179267
*44294	WCI G179266
1	WCI G174747-09
2	WCI G183861
3	WCI G163669
4	TUBE, INSULATION (2)
5	WCI G184609
6	WCI G177534
8	G187559 Frigidaire Refrigerator Bushing
9	BRACKET, REAR MOTOR MOUNTING
10	5300158289 Frigidaire Evaporator Fan Motor
11	BRACKET, FRONT MOTOR MOUNTING
12	RING, FAN ORIFICE
13	215667501 Frigidaire Refrigerator Ice Tray Primary
14	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
15	216858001 Frigidaire Refrigerator Screw
17	WCI G162512-22
19	WCI G162663-11
20	DAMPER FAN COVER
21	NUT, DAMPER MOUNTING
22	241710601 Frigidaire Refrigerator Screw
23	BRACKET, TOP HINGE
24A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
24	5304509705 Frigidaire Refrigerator Grommet
26	WCI G177059-05
27	WCI G166495-01
29	WCI G142220
30	SCREW, MULLION MOUNTING (2)
31	WCI G172434-34
33	WCI G162178
34	5304455852 Frigidaire Refrigerator Screw
35	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
36	CHANNEL, SHELF (2)
37	SHIM, HINGE
38	CHANNEL, CENTER SHELF, MOUNTING
40	5303001321 Frigidaire Refrigerator Lower Hinge Pin
41	BRACKET, HINGE, LOWER
42	WCI G163989
43	ROLLER FRONT, ADJUSTABLE (2)
44	SPRING-ROLLER (2)
45	BOLT-ROLLER (2)
46	SUPPORT, ROLLER (2)
47	WCI G179326
48	ROLLER, REAR (2)
49	BOLT ROLLER (2)
50	5304455650 Frigidaire Refrigerator Screw
51	SPOUT DRAIN TUBE
52	WCI G101747
53	TUBE, DRAIN
54	5304455651 Frigidaire Refrigerator Screw
55	DEFLECTOR AIR
56	BUTTON DECORATIVE PLUG
57	WCI G174733
58	WCI G174734
