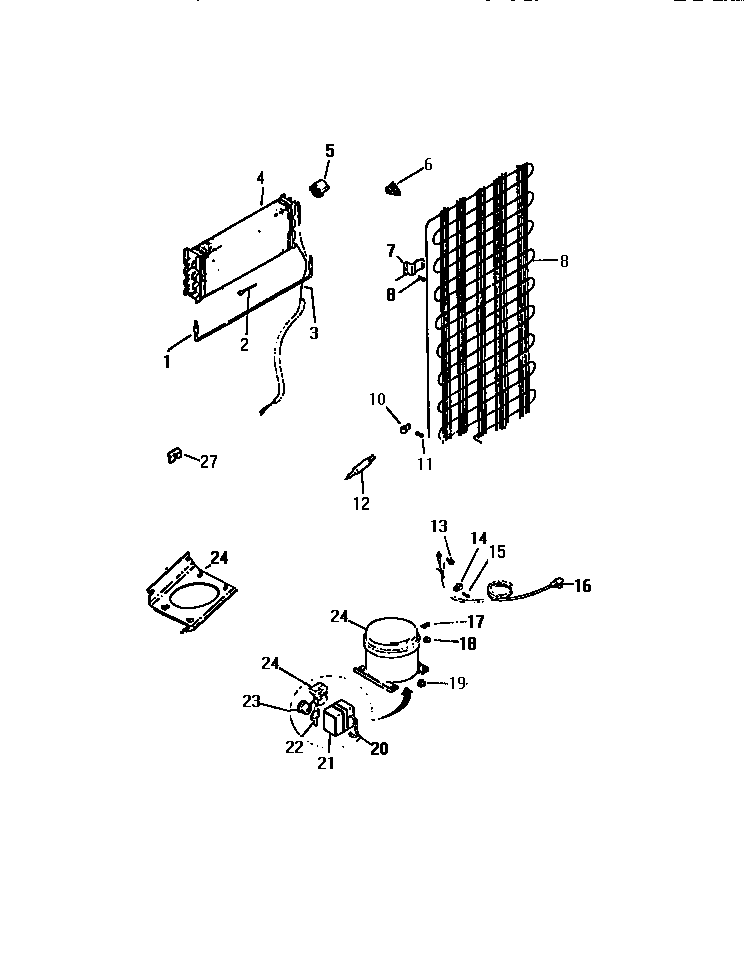

TSK210ANOT 05 – SYSTEM

Products

Position	Product
*44305	RING, SEAL (NON-ILLUSTRATED)
*44301	WCI G179684-09
*44306	WCI G176210
*44326	WCI G183584
*44325	WCI G141621-21
*44324	NUT, ORIFICE (2)
*44304	PLUG, EVAPORATOR INSULATION BLOCK, R H
1	WCI G178425-05
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3	HEAT EXCHANGER
4	EVAPORATOR
5	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
6	BLOCK, EVAPORATOR, RH
7	BRACKET-CONDENSER MOUNTING (4)
9	WCI G186110
12	5303305677 Frigidaire Replacement Filter Dryer Filters
13	5308000039 Frigidaire Refrigerator Screw
14	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
15	5304455651 Frigidaire Refrigerator Screw
16	CORD, SERVICE
17	WCI 163204
18	WASHER, COMPRESSOR MOUNTING (4)
19	218513300 Frigidaire Refrigerator Compressor Mount Grommet
20	5303006412 Frigidaire Refrigerator Cover Mounting Strap
22	CLIP, OVERLOAD
23	WCI G166052
24	WCI 150618-09
25	WCI G183738
26	PLATE
27	BLOCK, EVAPORATOR, LH
