TSK210ANOW 04 – SHELVES, CONTROLS, DIVIDER, MULLION

TSK210ANOW 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

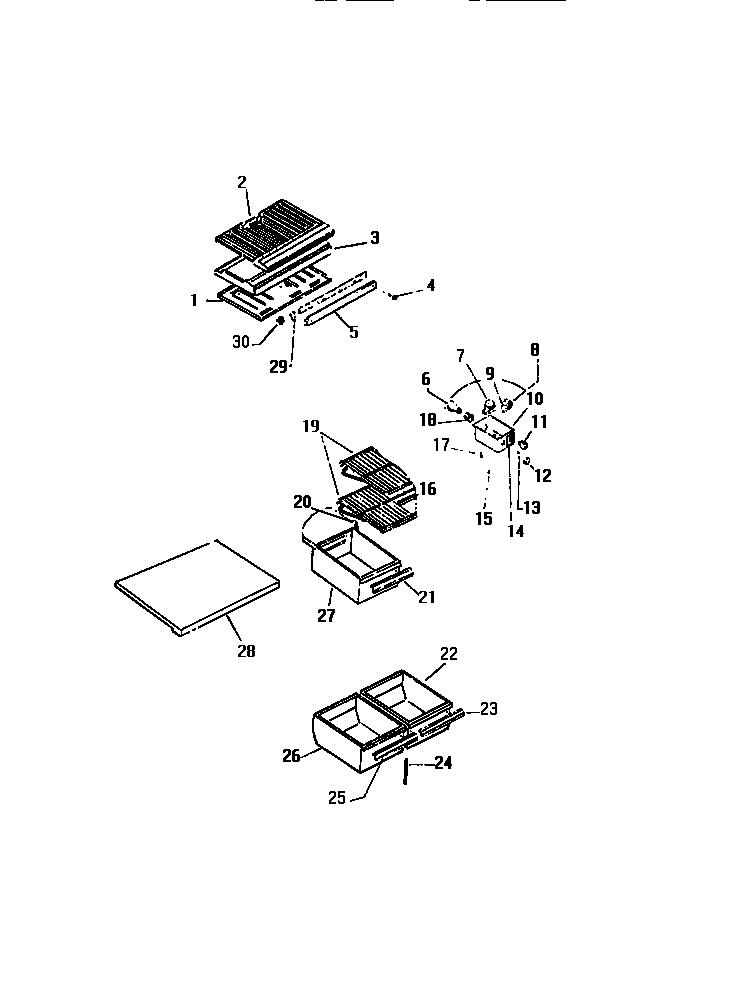

TSK210ANOW 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
*44315TAPPING PLATE (2)
*44314STRAP, MULLION MOUNTING
*44313SCREW (5)
*44316BUTTON, PLUG, ICE MAKER HARNESS
*44317BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES
*44318BUTTON, PLUG, LINER (2)
*44319WCI G164571
*44320HARNESS-DIVIDER (NON-ILLUSTRATED)
*44321WCI G186589
*44322WCI G186196
1WCI G184628
2WCI G184604
3WCI G184683
4SCREW, MULLION MOUNTING (2)
5MULLION-WHTE
6316538904 Frigidaire Oven Lamp Light
7215846604 Frigidaire Refrigerator Defrost Timer
8COLD CONTROL
9TUBE
10WCI G174666-15
11SWITCH SLIDE
12KNOB CONTROL
13WCI G107080
14WCI G178294-01
15WCI G106289
16WCI 172434-09
17WCI G1633980
18SOCKET LIGHT
19WCI 177390-10
20WCI G177106-01
21WCI G161013-64
22WCI G490015-32
23TRIM, CRISPER (2)
24SUPPORT, CRISPER COVER
25WCI G161013-63
26WCI G176639-15
27WCI G176918-14
28WCI G490064-08
29WCI G177254
305309918806 Frigidaire Refrigerator Light Switch Door
