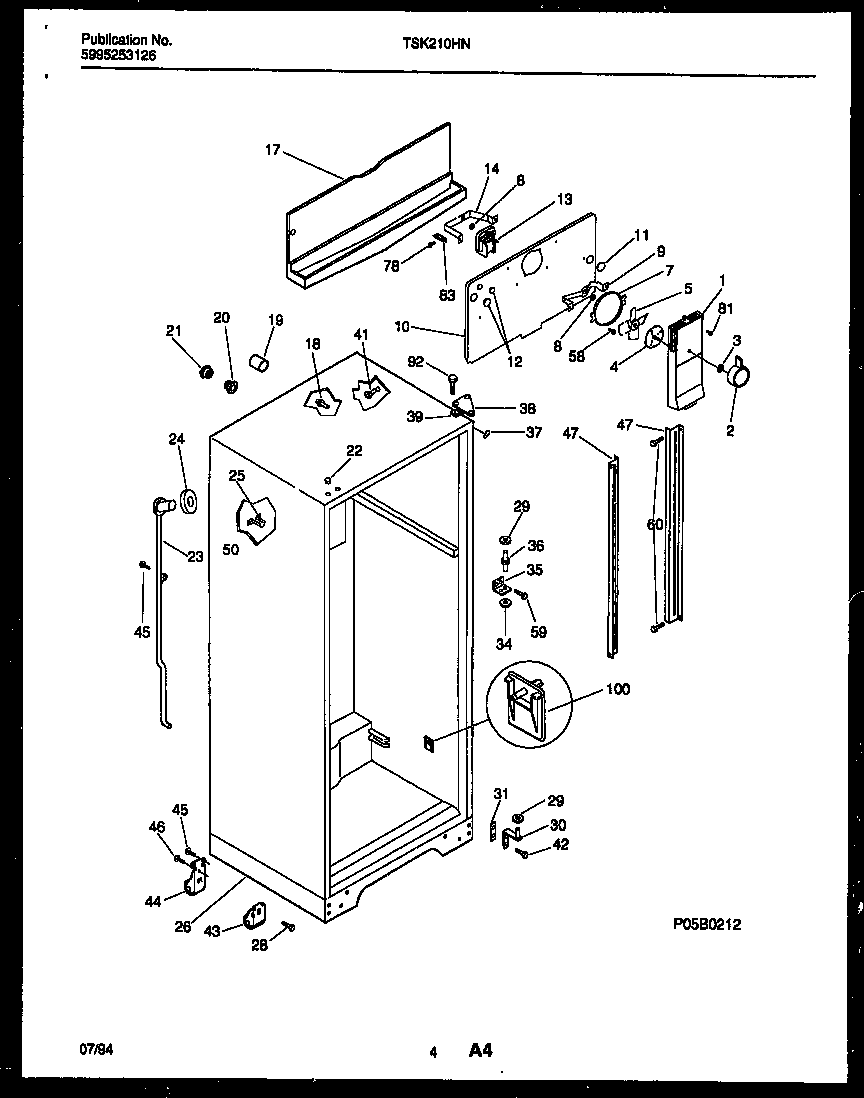

TSK210HN1D 03 – CABINET PARTS

TSK210HN1D 03 – CABINET PARTS

Written by

in

TSK210HN1D 03 – CABINET PARTS

Products

PositionProduct
1WCI 5303273168
1WCI 5308017405
1WCI 5303273169
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 5303209636
10COVER, COIL
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079000
12WCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 5303212487
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER, .34 X .62 X .05, NYLON
30TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE, W/ HINGE PIN
31WCI 5303212488
34WCI 5308000186
35WCI 218085400
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
38BRACKET-UPPER HINGE
38TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
415304509705 Frigidaire Refrigerator Grommet
415304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 5303212490
44WCI 5308009773
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
47WCI 215789000
59WCI 215097000
605304455852 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
100SUPPORT-PAN COVER
46123PLUG, BUTTON, CABINET LINER (NI)
