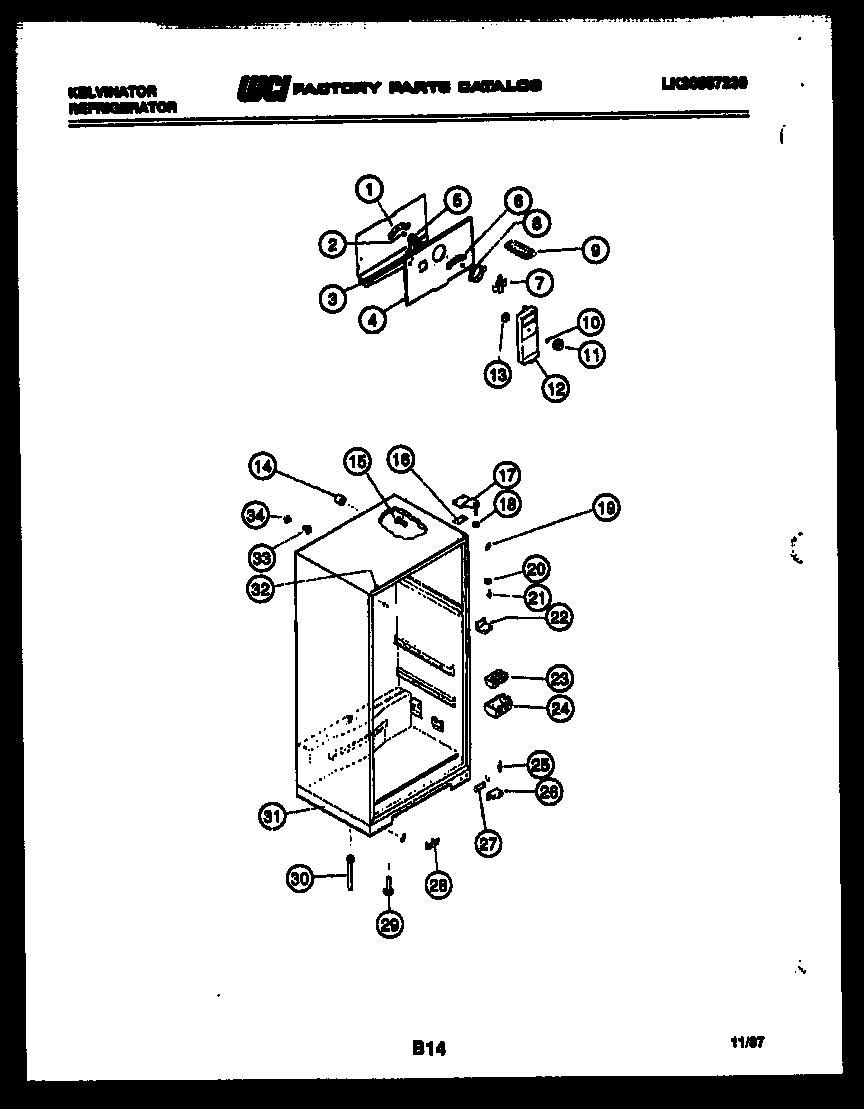

TSX120EN0V 03 – CABINET PARTS

Products

Position	Product
*17082	COVER, TOP HINGE, AVOCADO
1	WCI G185303
2	G187559 Frigidaire Refrigerator Bushing
3	WCI G163216
4	COVER-EVAPORATOR COIL (2)
5	5300158289 Frigidaire Evaporator Fan Motor
6	WCI G185302
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	RING, FAN ORIFICE
8A	NUT, ORIFICE (2)
9	215667501 Frigidaire Refrigerator Ice Tray Primary
10	NUT, DAMPER MOUNTING
11	KNOB-DAMPER CONTROL
12	WCI 3015462
13	DAMPER FAN COVER
14	TUBE, INSULATION (2)
15	WCI G163669
16	WCI G183861
17	BRACKET, TOP HINGE
18	WCI G103903
19	TRIM-CAB CORNER-AVOC
20	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
21	WCI G142220
22	BRACKET, HINGE CENTER
23	DEFLECTOR AIR
24	WCI G162178
25	5303001321 Frigidaire Refrigerator Lower Hinge Pin
26	BRACKET, HINGE, LOWER
27	SHIM, HINGE
28	WCI G166912
29A	NUT, ANCHOR (2)
29	LEG-LEVELING (2)
30	CLIP (4)
31	BASE-CABINET
32	WCI G174747-08
33	WCI G174733
34	WCI G174734
