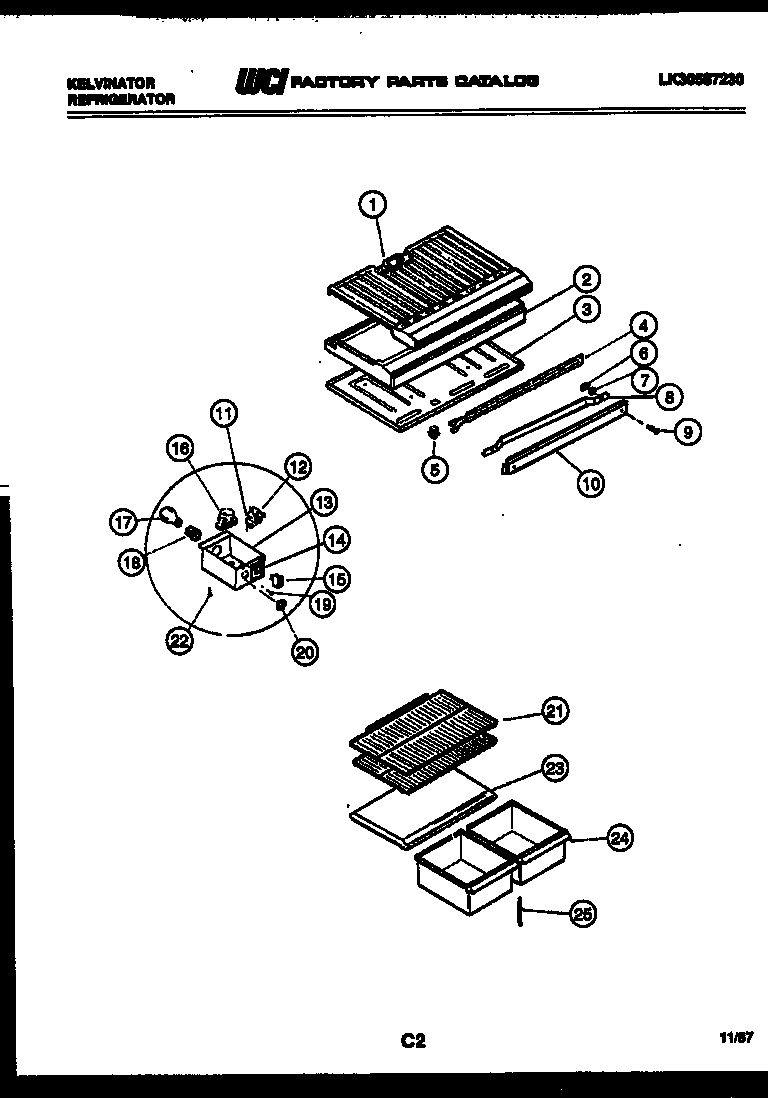

TSX120EN0V 04 – RACKS AND TRAYS

Products

Position	Product
*17104	WIRING HARNESS-CONTROL
*17106	TAPPING PLATE (2)
*17107	BUTTON, PLUG, LINER (2)
*17103	WCI G164571
1	BOTTOM ( FREEZER )
2	DIVIDER-COMPARTMENT
3	TOP-REFRIGERATOR
4	WCI G187921
5	5309918806 Frigidaire Refrigerator Light Switch Door
6	SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
7	WASHER (2)
8	CLAMP, MULLION MOUNTING
9	SCREW, BRACKET MOUNTING (4)
10	WCI G174520-08
11	TUBE
12	CONTROL-COLD
13	WCI G176722-03
14	LABEL-CONTROL BOX
15	SWITCH SLIDE
16	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17	316538904 Frigidaire Oven Lamp Light
18	SOCKET LIGHT
19	WCI G107080
20	KNOB
21	WCI G172172-01
22	5304455649 Frigidaire Refrigerator Screw
23	COVER
24	PAN-STORAGE
25	SUPPORT, CRISPER COVER
