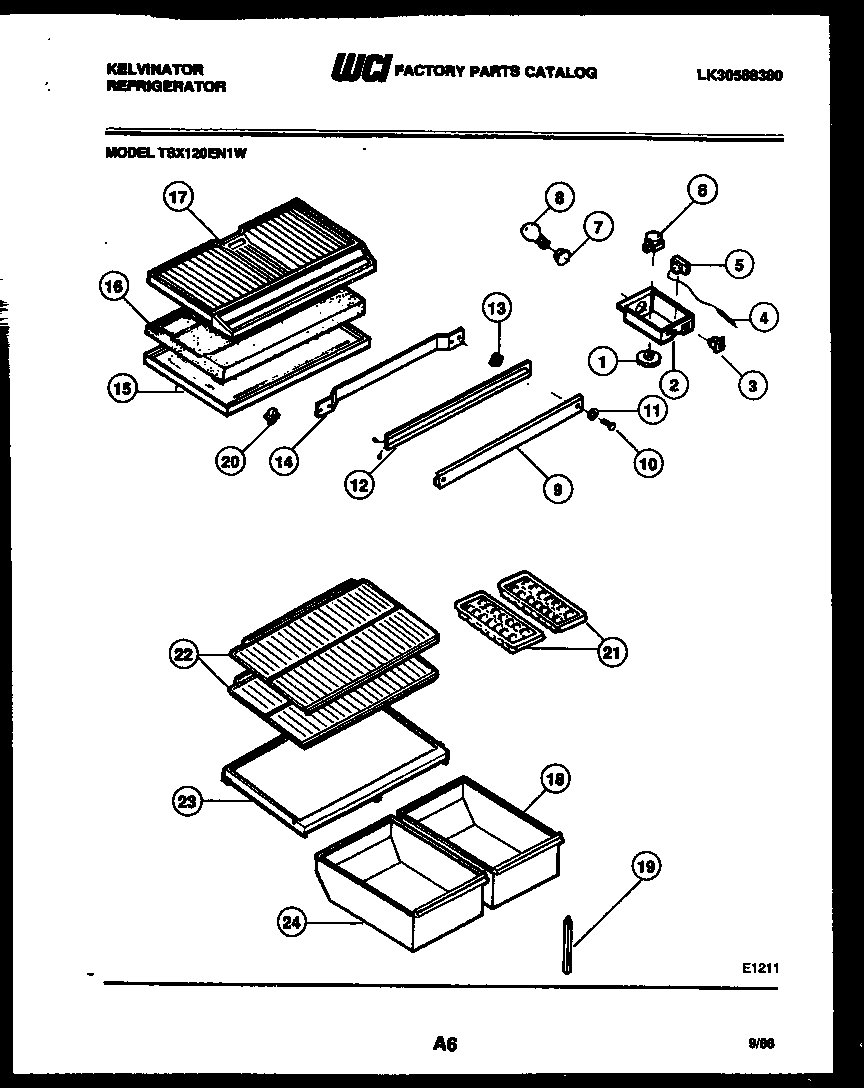

TSX120EN1V 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1KNOB
2ALABEL-CONTROL BOX
2BWCI G183060
2WCI G176722-03
2C5304455650 Frigidaire Refrigerator Screw
3SWITCH SLIDE
4TUBE
5CONTROL-COLD
5AWCI G107080
6A5304455649 Frigidaire Refrigerator Screw
6215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
7SOCKET LIGHT
8316538904 Frigidaire Oven Lamp Light
9WCI G174520-08
10SCREW, BRACKET MOUNTING (4)
11WASHER (2)
12WCI 3201662
13SPACER-MULLION MOUNTING (2) (NON-ILLUSTRATED)
14CLAMP, MULLION MOUNTING
15TOP-REFRIGERATOR
15ASCREW (5)
16DIVIDER-COMPARTMENT
17BOTTOM ( FREEZER )
19SUPPORT, CRISPER COVER
205309918806 Frigidaire Refrigerator Light Switch Door
21215667501 Frigidaire Refrigerator Ice Tray Primary
22WCI G172172-01
23COVER
24PAN-STORAGE
