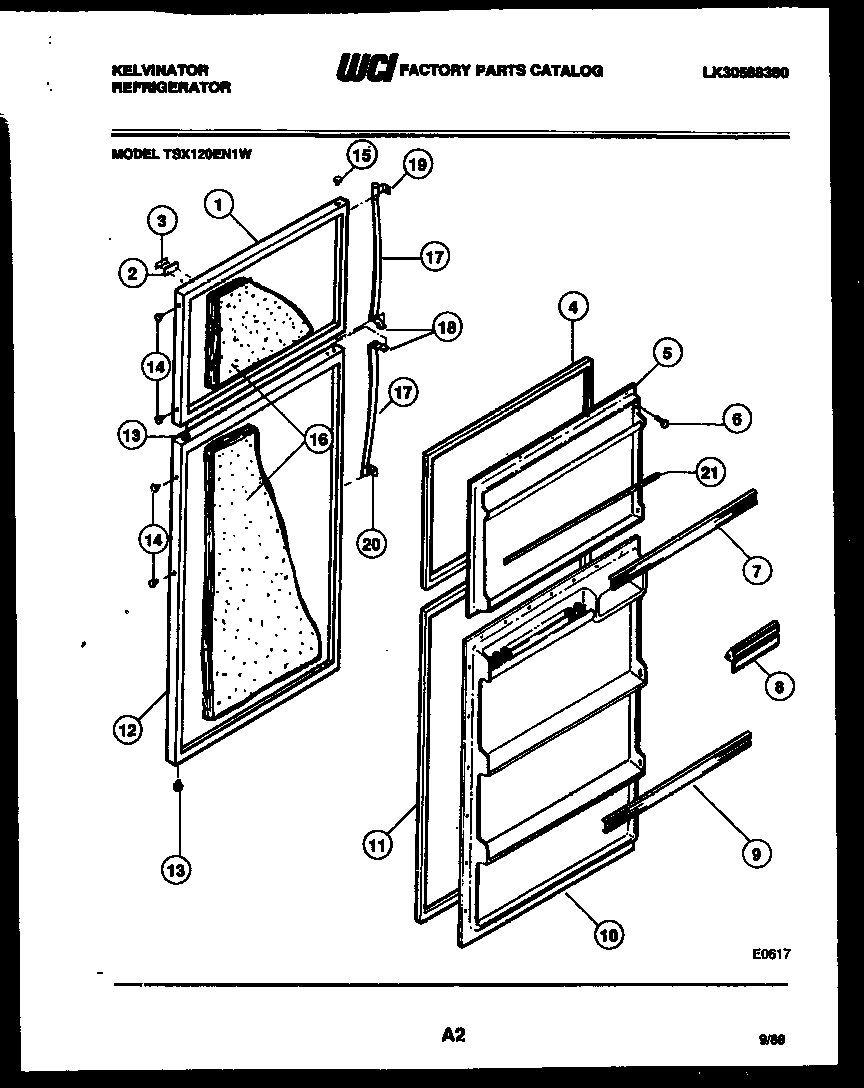

TSX120EN1W 02 – DOOR PARTS

TSX120EN1W 02 – DOOR PARTS

Written by

in

TSX120EN1W 02 – DOOR PARTS

Products

PositionProduct
1WCI 3916177
2NAMEPLATE FRAME
2ATAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3LABEL-NAMEPLATE
4WCI G186932-05
5WCI G172010-02
65304455651 Frigidaire Refrigerator Screw
7DOOR RACK-FREEZER
8DOOR, DAIRY
9DOOR RACK (2)
10WCI G172007-02
11WCI G186932-04
12WCI 3916182
13BEARING, HINGE (3)
14240494001 Frigidaire Refrigerator Plug Button
15WCI G169332-01
16WCI G89643
17ATRIM INSERT-GRIP (2) (NON-ILLUSTRATED)
17WCI 3201377
18END-HANDLE (2)
19WCI G189452-01
20WCI G189451-01
20AWCI G185566
21WCI G166151-03
