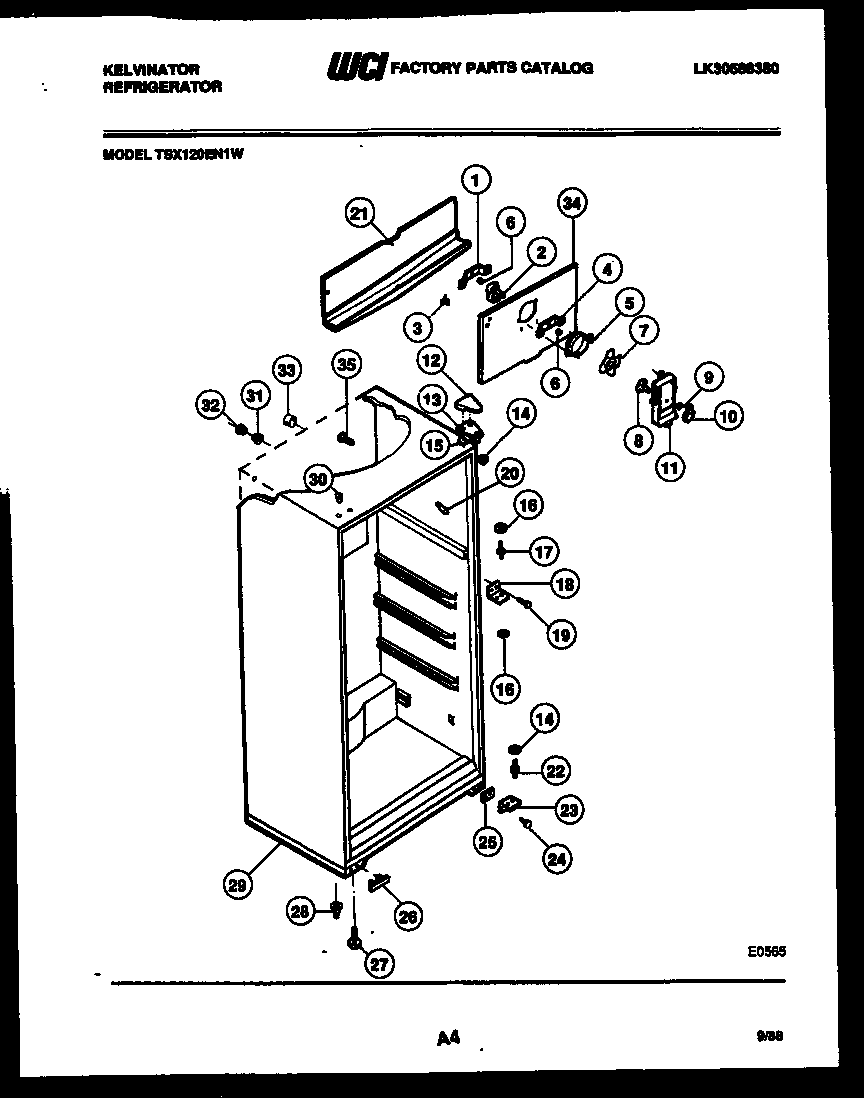

TSX120EN1W 03 – CABINET PARTS

Products

Position	Product
1	WCI G185303
2	5300158289 Frigidaire Evaporator Fan Motor
3	WCI G164571
3A	5304455651 Frigidaire Refrigerator Screw
4	WCI G184302
5A	218843801 Frigidaire Refrigerator Screw
5	RING, FAN ORIFICE
6	G187559 Frigidaire Refrigerator Bushing
7	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	DAMPER FAN COVER
9	NUT, DAMPER MOUNTING
10	KNOB-DAMPER CONTROL
11A	5304455650 Frigidaire Refrigerator Screw
11	WCI 3015462
12	COVER HINGE, WHITE
13	BRACKET, TOP HINGE
13B	TAPPING, PLATE (2)
13A	241710601 Frigidaire Refrigerator Screw
14	WCI G103903
15	WCI G183861
16	WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
17	WCI G142220
18	BRACKET, HINGE CENTER
19	SCREW, BRACKET MOUNTING (4)
20	TRIM (4)
21	WCI G163216
22	5303001321 Frigidaire Refrigerator Lower Hinge Pin
23	BRACKET, HINGE, LOWER
25	SHIM, HINGE
26	WCI G166912
27A	NUT, ANCHOR (2)
27	LEG-LEVELING (2)
28	CLIP (4)
29	BASE-CABINET
30	WCI G174747–01
31	WCI G174733
32	WCI G174734
33	TUBE, INSULATION (2)
34B	PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
34	COVER-EVAPORATOR COIL (2)
34A	NUT, ORIFICE (2)
35	WCI G163669
