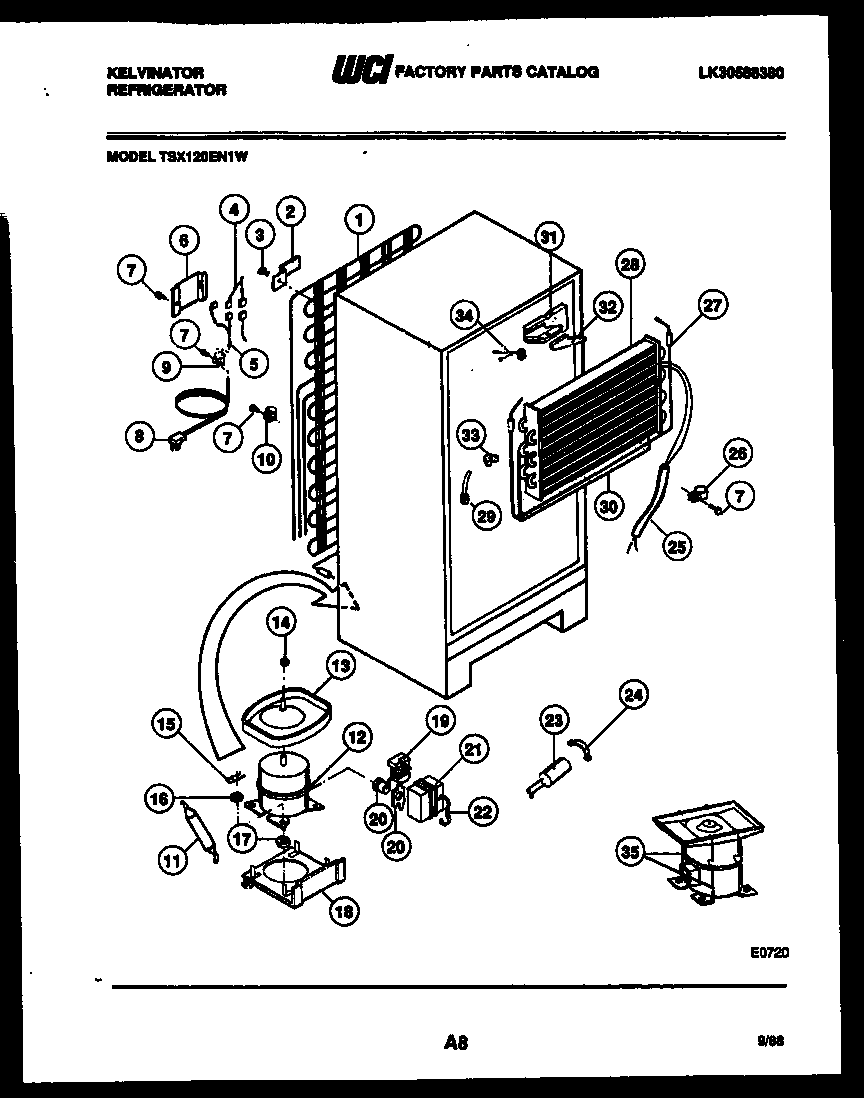

TSX120EN1W 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*51716HOT TUBE REPAIR KIT (NON-ILLUSTRATED)
*517155303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
1WCI G164924
2BRACKET-CONDENSER MOUNTING (4)
35308000039 Frigidaire Refrigerator Screw
4WIRING HARNESS-CONTROL
5HARNESS-COMPRESSOR
6WCI G183584
75304455651 Frigidaire Refrigerator Screw
8CORD, SERVICE
95303001199 Frigidaire Refrigerator Wiring Harness Clamp
10CLAMP-CABLE
115303305677 Frigidaire Replacement Filter Dryer Filters
12WCI G190360
13DEFROST PAN & NUT
14NUT, LOCK
15CLIP, COMPRESSOR MOUNTING (4)
16WASHER, COMPRESSOR MOUNTING (4)
17218513300 Frigidaire Refrigerator Compressor Mount Grommet
18WCI G162822
19WCI G182225-18
20OVERLOAD & MOUNTING CLIP
225303006412 Frigidaire Refrigerator Cover Mounting Strap
23WCI G188885-01
24STRAP-CAPACITOR
25WCI 3201663
26240396801 Frigidaire Refrigerator Tube Clamp
27WCI G162432-02
28EVAPORATOR
295308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
30INSULATOR-EVAPORATOR
31BLOCK, EVAPORATOR, RH
32PLUG, EVAPORATOR INSULATION BLOCK, R H
33BLOCK, LEFT SIDE
345303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
35PAN RETAINER KIT-SERVICE
