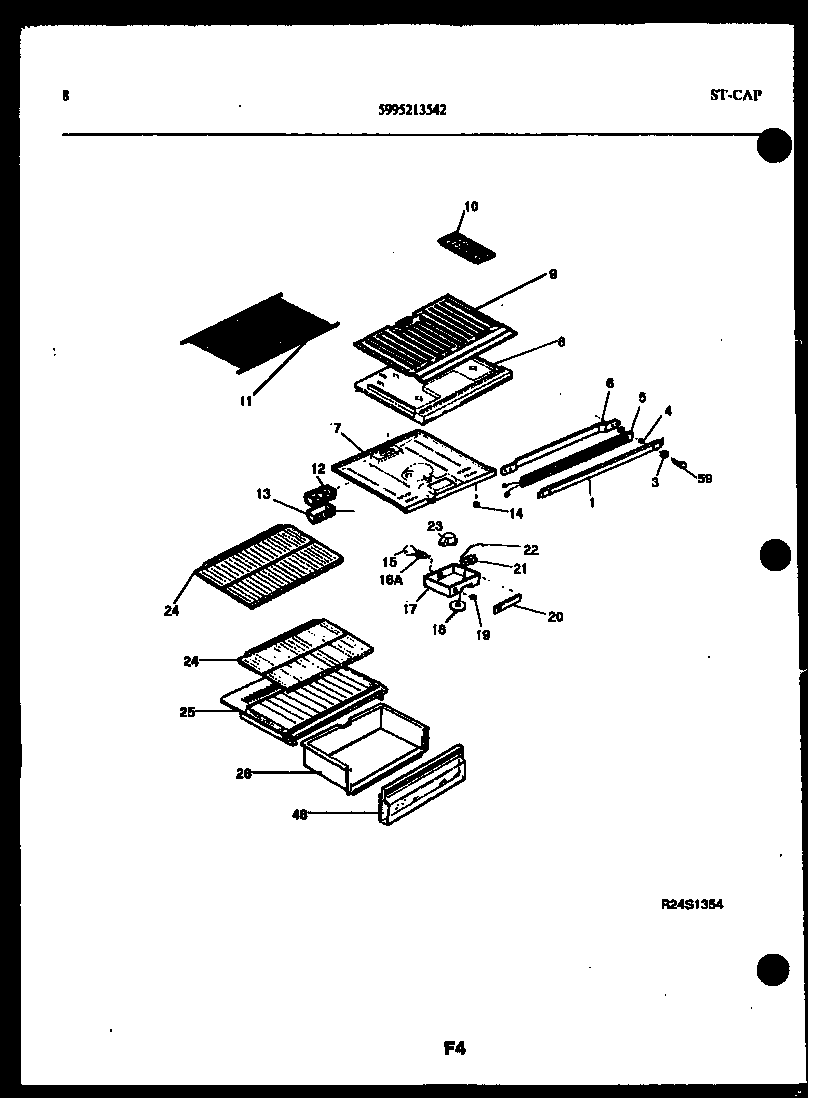

TSX130HN0D 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206125
3WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NOT ILLUSTRATED)
4SPACER-MULLION MTG, STEEL
5WCI 5303281861
6WCI 5308003604
7WCI 5303270919
7WCI 5303001380
8HARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
8WCI 5303270921
9BOTTOM PANEL-FRZR
93205266 Frigidaire Refrigerator Edge Protector
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303274460
12DEFLECTRO, AIR, W/SEAL
125303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
175304455650 Frigidaire Refrigerator Screw
17WCI 5303281832
18WCI 5303209251
21WCI 5303001260
21WCI 5303018894
22HOUSING-TEMP SENSOR, PLASTIC
235304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303281827
25COVER-CRISPER PAN
26PAN-CRISPER, FULL-WIDTH
46WCI 5303281864
59SCREW – MULLION (2)
