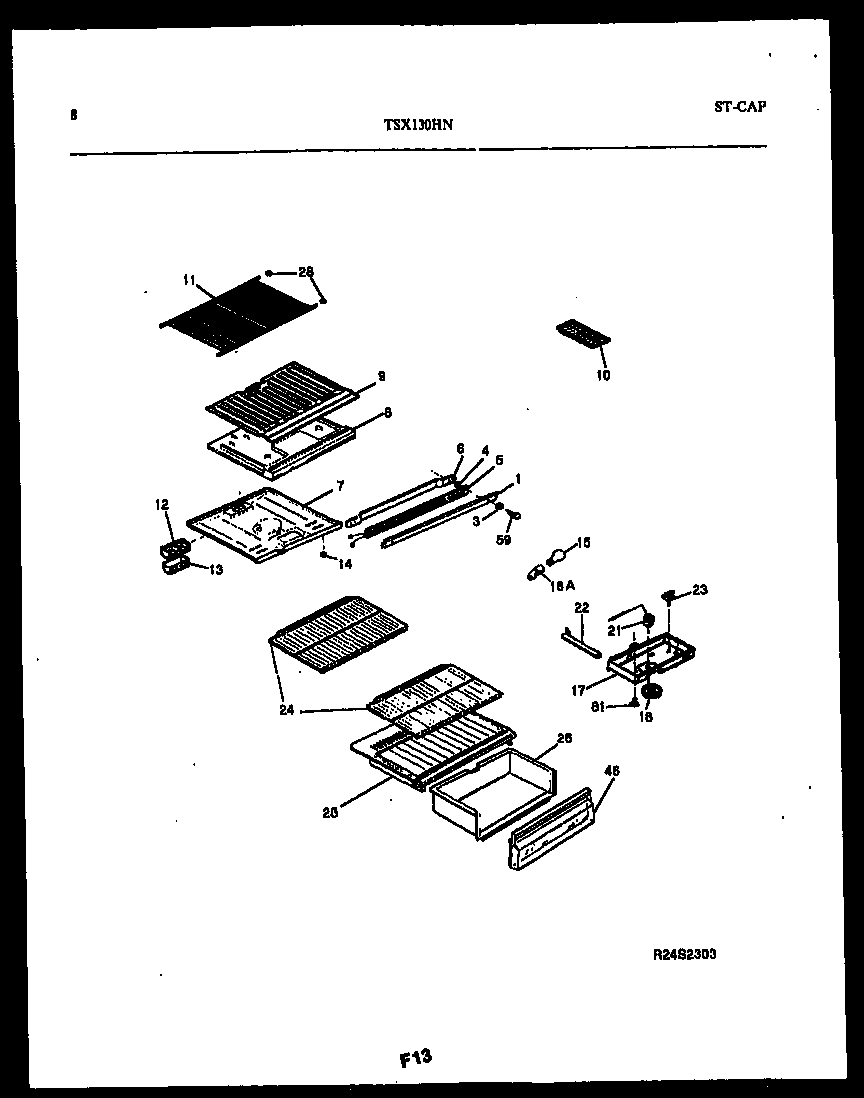

TSX130HN1T 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206123
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303281861
6WCI 5308003604
7WCI 5303001380
7WCI 5303270919
8WCI 5303270921
8HARNESS-WIRING, CONTROL/DIVIDER (NON-ILLUSTRATED)
83205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283580
125303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303281832
17WCI 08016567
18WCI 5303209251
21WCI 5303018894
21WCI 5303001260
22HOUSING-TEMP SENSOR, PLASTIC
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24SHELF-SLIDING, WIRE, REFR SECTION
25COVER-CRISPER PAN
26PAN-CRISPER, FULL-WIDTH
28END CAP-SHELF,PROTECTOR
46WCI 5303281864
59SCREW – MULLION (2)
815304455650 Frigidaire Refrigerator Screw
