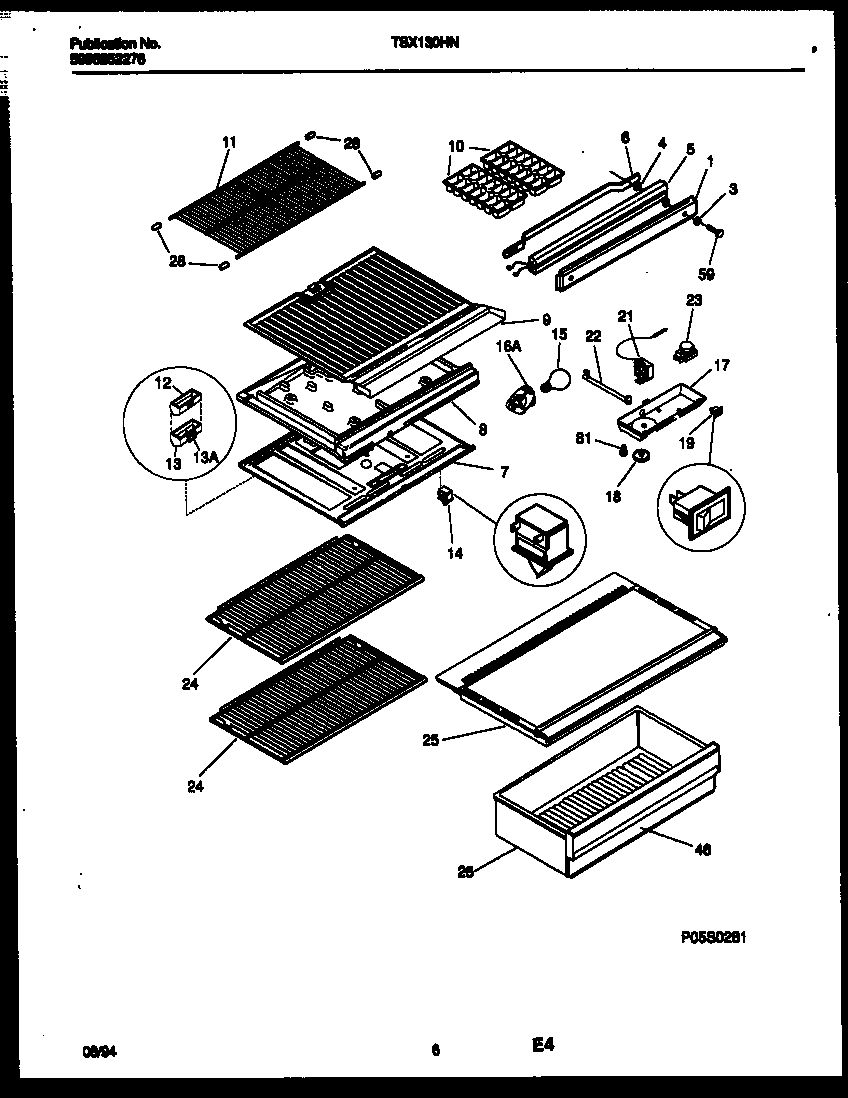

TSX130HN2T 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206123
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4WCI 215882100
5WCI 5303281861
6WCI 215170801
7AWCI 5303001380
7WCI 5303270919
8WCI 5303270921
8AHARNESS, WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
8B3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283580
12ADEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 5303299980
18WCI 5303299979
19SWITCH-ENERGY SAVER, ROCKER
21AWCI 5303001260
21WCI 5303302297
22HOUSING-TEMP SENSOR, PLASTIC
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF-SLIDING, WIRE, REFR SECTION
25COVER-CRISPER PAN
26PAN-CRISPER, FULL-WIDTH
28END CAP-SHELF,PROTECTOR
46WCI 5303281864
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
