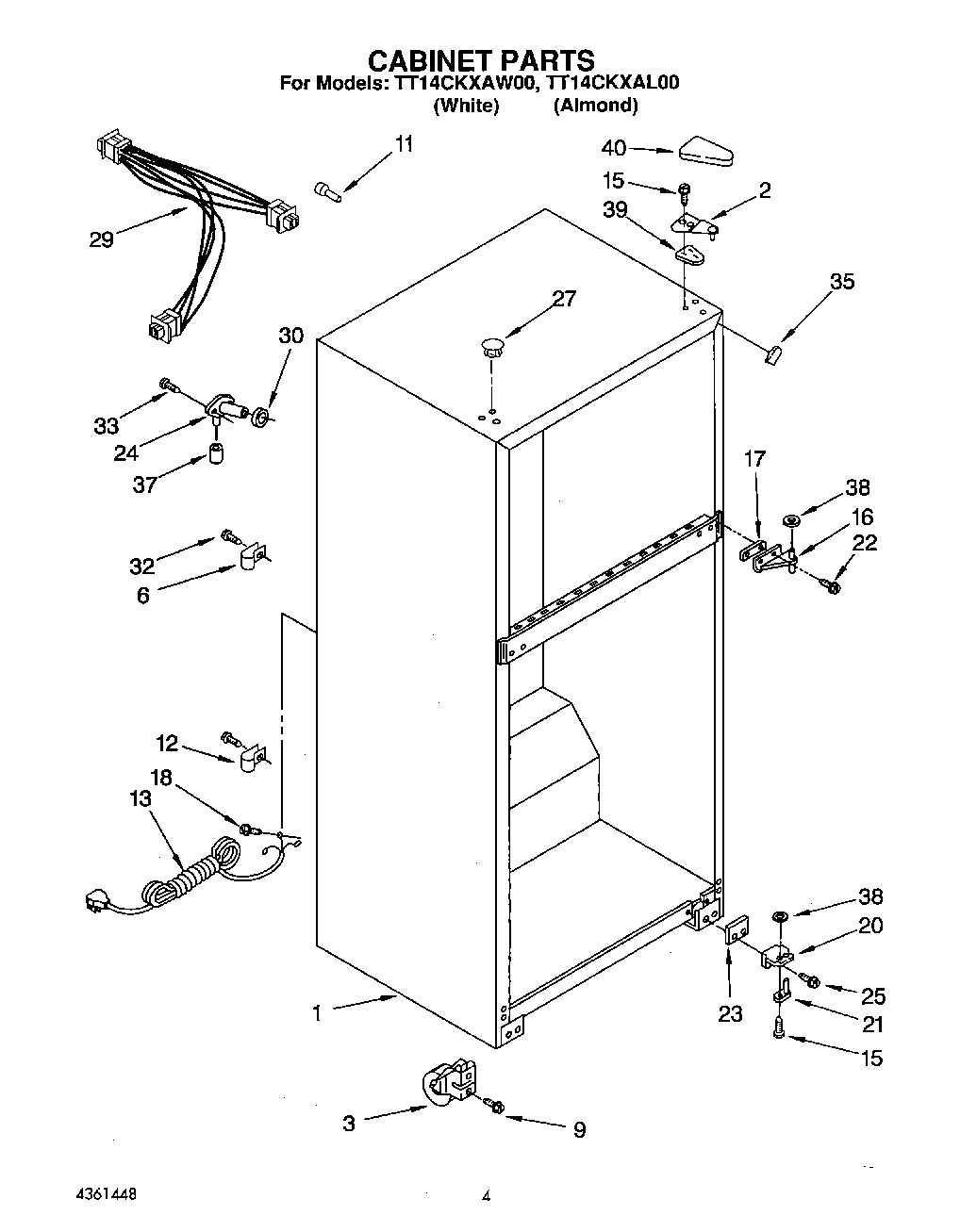

TT14CKXAN00 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2189412 Whirlpool Refrigerator Door Hinge
3Roller-Front
6WP488366 Whirlpool Refrigerator Clamp
9Screw
11Tube, Water Inlet
12549193 Whirlpool Refrigerator Power Clamp
13Cord, Service
15Screw
16WP2166037 Whirlpool Refrigerator Door Hinge
17Shim, Hinge Center
20WP2325482 Whirlpool Bottom Hinge
21Hinge-Pin Bott.
22Screw 10-32 x 5/16
23Shim, Bottom Hinge
24WP2196157 Whirlpool Fill Tube
25WP999367 Whirlpool Refrigerator Screw
27Hole Plug (6) (Almond)
27WP2151652 Whirlpool Refrigerator Button Plug
29Cabinet, Wiring Assembly
30WP1106508 Whirlpool Refrigerator Gasket
32WP489478 Whirlpool Refrigerator Screw
35Corner Filler (Almond)
35W10859322 Whirlpool Refrigerator Filler
37WP487996 Whirlpool Refrigerator Cap Tube
38WP489235 Whirlpool Refrigerator Washer
39Shim
40WP2213360 Whirlpool Refrigerator Cover
40Cover, Hinge (Almond)
