TT14CKXAN01 04 – UNIT

TT14CKXAN01 04 – UNIT

Written by

in

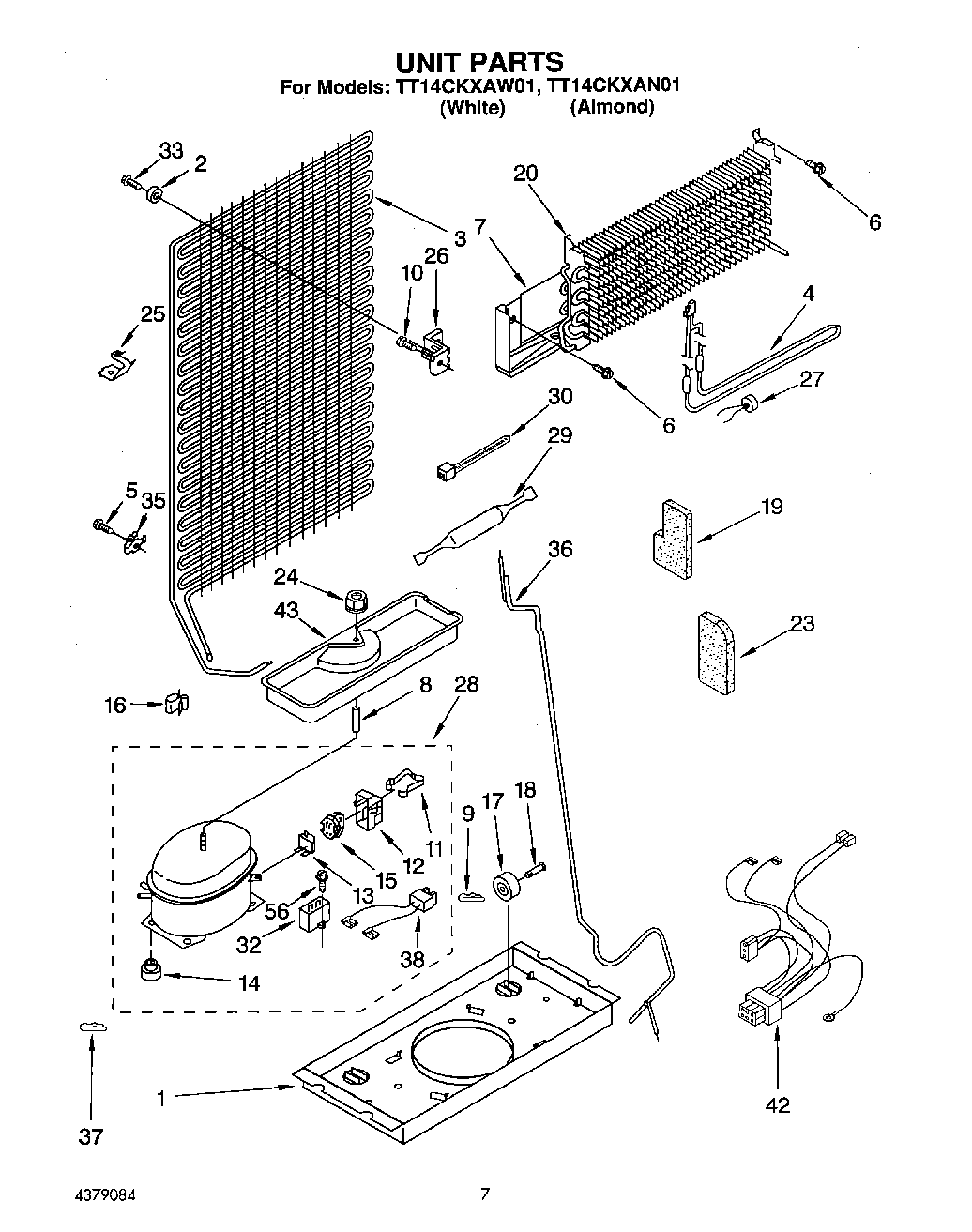

TT14CKXAN01 04 – UNIT

Products

PositionProduct
1WPW10222451 Whirlpool Refrigerator Support
2Bumper
3Condenser
4WP2263749 Whirlpool Defrost Heater Assembly
5WP965173 Whirlpool Dishwasher Screw
7Heat Shield
8Spacer
9Clip-Pin
10WP488163 Whirlpool Refrigerator Screw
11Strap
12Cover
13Overload (Includes Relay)
13Overload
14876811 Whirlpool Grommet
14WP2163786 Whirlpool Refrigerator Grommet
15Relay (See Overload)
16W10812038 Whirlpool Refrigerator Clip
174388239 Whirlpool Refrigerator Primary Cabinet Roller
18Pin-Roller
198201619 Whirlpool Refrigerator Support Assembly
20WP2263919 Whirlpool Refrigerator Evaporator
24285002 Whirlpool Nut
254386951 Whirlpool Refrigerator Clip
26Bracket, Condenser
27WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
28Installation Kit
28Compressor
28876765 Whirlpool Primary Mounting Kit Refrigerator
29W10843121 Whirlpool Refrigerator Tube
30Strap
32WPW10662129 Whirlpool Refrigerator Run Capacitor
33WP489174 Whirlpool Refrigerator Screw
35Clip, Tube
36Heat Exchanger (Not Serviced)
37Clip, Compressor
38WP2172890 Whirlpool Refrigerator Wire
42Wire Assy. Unit
43Evaporator Tray
56W11693756 Whirlpool Screw Assembly
56Start Kit
56VALVE, ACCESS (5/8“)
56876764 Whirlpool Refrigerator Primary Valve
56978026 Whirlpool Refrigerator Primary Valve
56978027 Whirlpool Refrigerator Primary Valve
56978030 Whirlpool Refrigerator Valve
56WP978025 Whirlpool Refrigerator Valve
56VALVE, ACCESS (1/2“)
