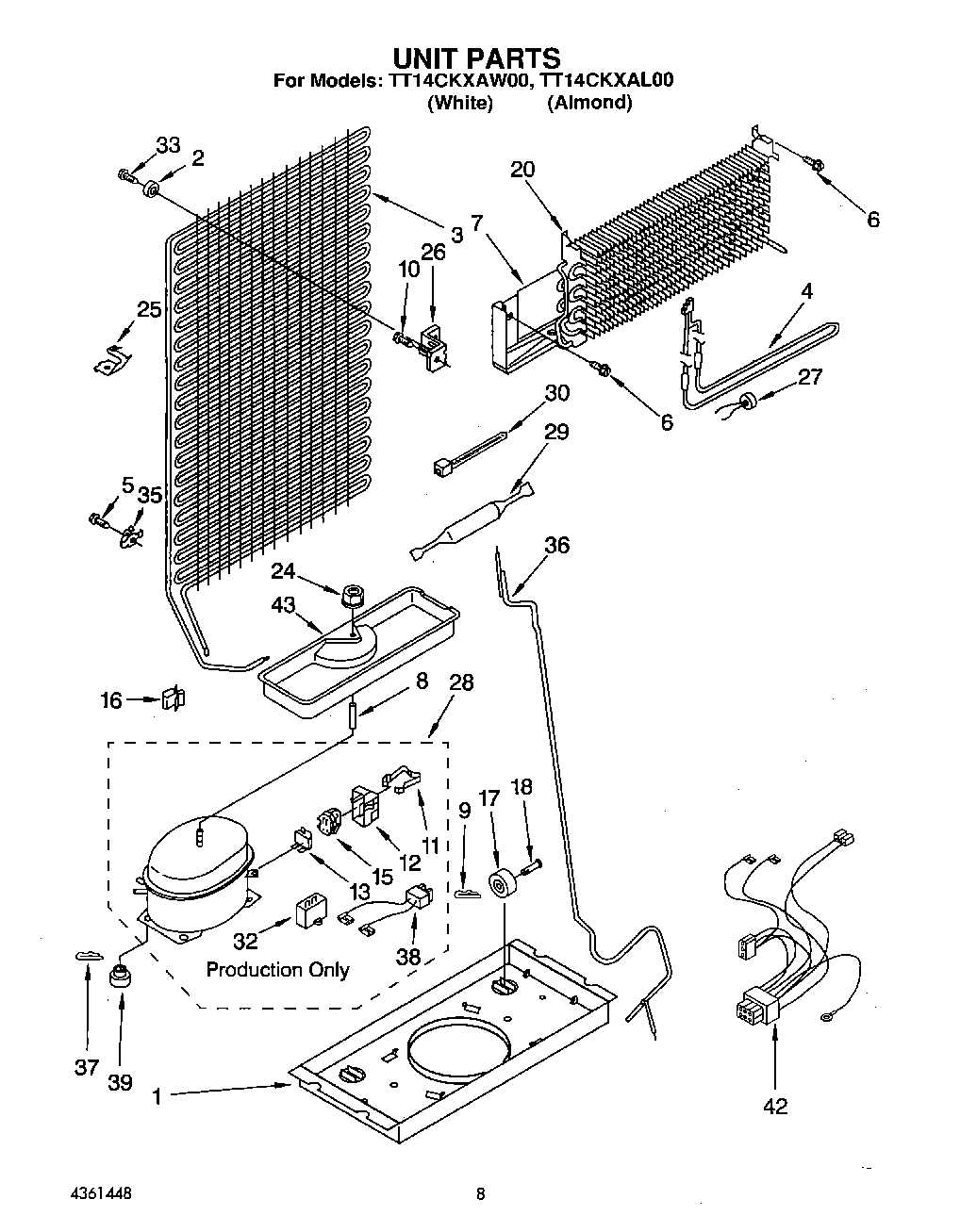

TT14CKXAW00 04 – UNIT

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
2	Bumper
3	Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	WP965173 Whirlpool Dishwasher Screw
7	Heat Shield
8	Spacer
9	Clip-Pin
10	WP489478 Whirlpool Refrigerator Screw
11	Strap
12	Cover
13	Overload (Includes Relay)
13	Overload
15	Relay (See Overload)
16	W10812038 Whirlpool Refrigerator Clip
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	Pin-Roller
20	WP2263919 Whirlpool Refrigerator Evaporator
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	Bracket, Condenser
27	WP4387490 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	Compressor
28	Installation Kit
29	W10843121 Whirlpool Refrigerator Tube
30	Strap
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	WP489174 Whirlpool Refrigerator Screw
35	Clip, Tube
36	Heat Exchanger
37	Clip, Compressor
38	WP2172890 Whirlpool Refrigerator Wire
39	876811 Whirlpool Grommet
39	WP2163786 Whirlpool Refrigerator Grommet
42	Wire Assy. Unit
43	978026 Whirlpool Refrigerator Primary Valve
43	Evaporator Tray
43	876764 Whirlpool Refrigerator Primary Valve
43	978027 Whirlpool Refrigerator Primary Valve
43	978030 Whirlpool Refrigerator Valve
43	WP978025 Whirlpool Refrigerator Valve
43	VALVE, ACCESS (1/2“)
43	Start Kit
43	VALVE, ACCESS (5/8“)
