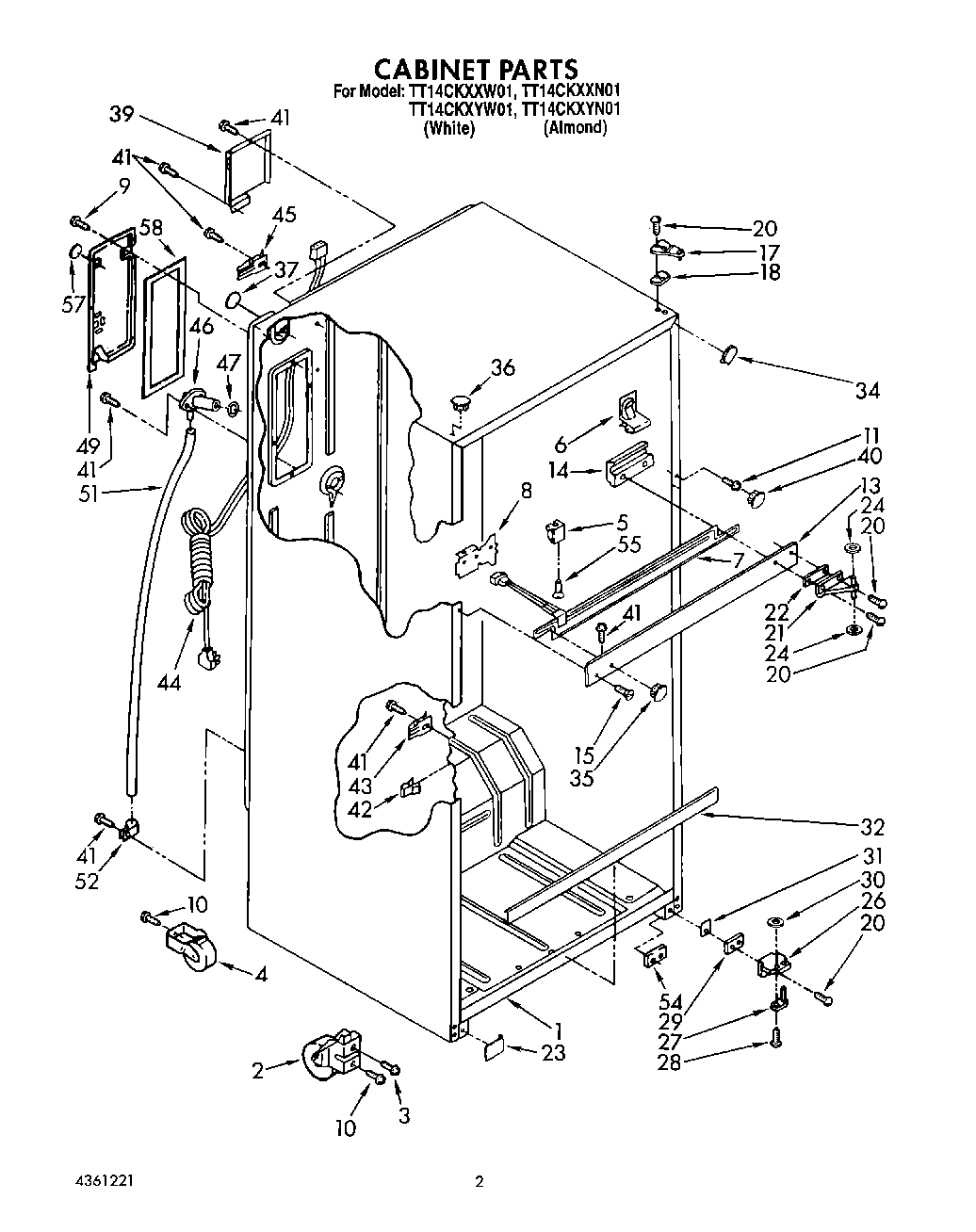

TT14CKXXN01 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Roller, Front
3	Screw
4	Roller, Rear
5	Spacer (3)
6	Clip, Center Rail (4)
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	Screw, 1/4-28 x 1/2 (2)
11	Screw, 8-32 x 1/2 (2)
13	Center Rail (White)
13	Center Rail (Almond)
14	Center, Rail Shim (2)
15	Screw
17	Hinge, Top
18	Shim, Hinge Top
19	Hinge Cover
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WPL 943552
23	WPL 944831
24	Washer, 7/64
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	WP487576 Whirlpool Washer
31	Cover, Glider Rail (Almond)
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (Almond)
32	Cover, Deck Rail (White)
34	WPL 1110685
34	WPL 1110684
35	Hole Plug (Almond)
35	Hole Plug (White)
36	Hole Plug (6) (Almond)
36	WP2151652 Whirlpool Refrigerator Button Plug
37	Hole Seal
39	WPL 942845
40	Hole Plug (2) (Almond)
40	Hole Plug (2) (White)
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
54	Tap Plate (2)
55	WP488163 Whirlpool Refrigerator Screw
57	WPL 1120224
58	WPL 1106510
