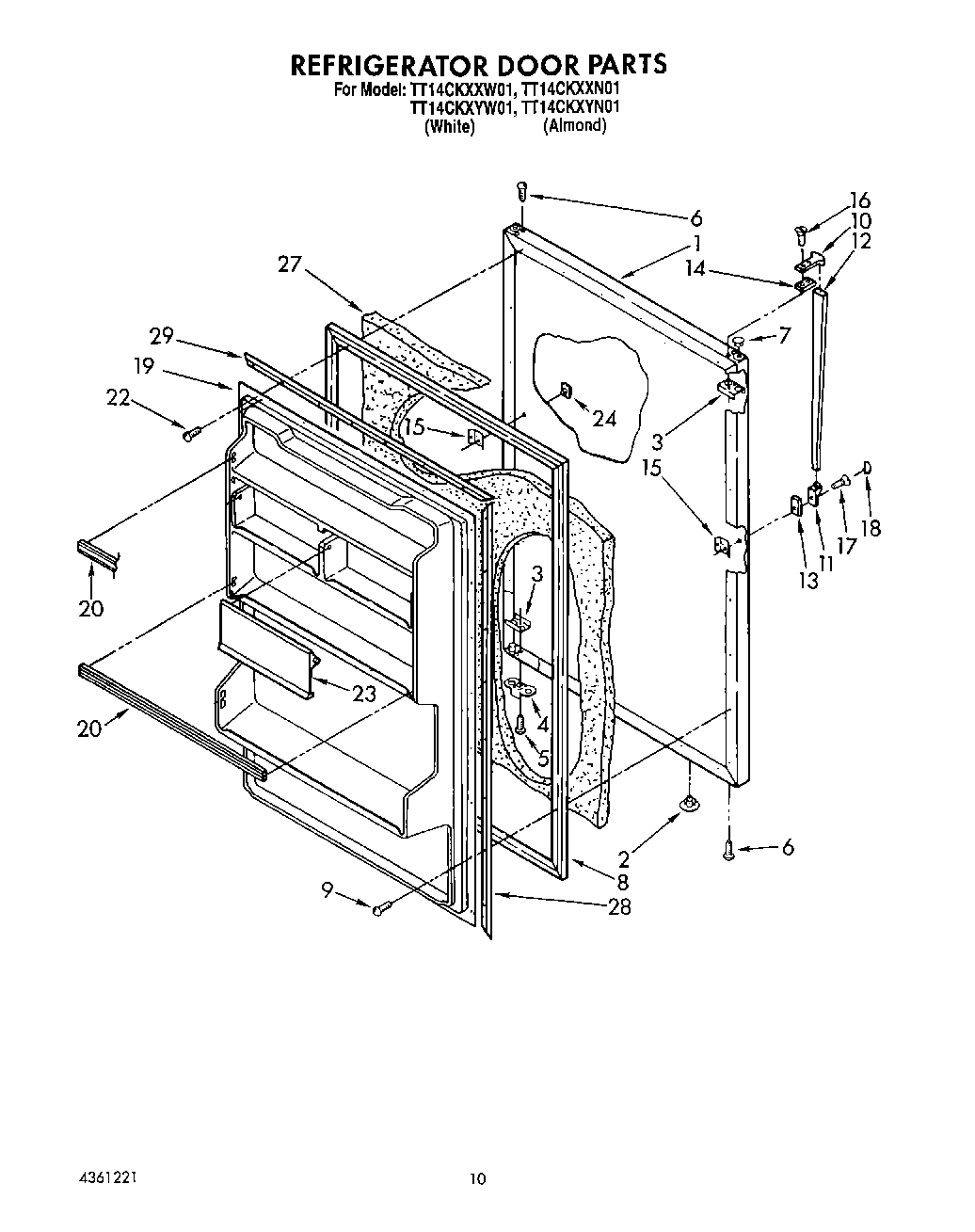

TT14CKXXN01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

TT14CKXXN01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Written by

in

TT14CKXXN01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

PositionProduct
WPL LIT4361221
WPL LIT2154703
Torx Key
WPL LIT2151712
WPL LIT2152400
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
1Panel, Refrigerator Door (Also Order Item 27) (Almond)
1Panel, Refrigerator Door (Also Order Item 27) (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6WP8281206 Whirlpool Refrigerator Screw
7Hole Plug (Almond)
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
82188445A Whirlpool Refrigerator Door Gasket Seal
9WP489069 Whirlpool Compactor Screw
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center (Golden Harvest)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (Top) (2)
23Butter Door
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
28Gasket Retainer, Side (2)
29212643 Whirlpool Refrigerator Permagum Sealer
29Leveler (Thinner)
29Retainer, Gasket
29WP72107 Whirlpool Touchup
29799344 Whirlpool Refrigerator Paint
29Almond (Uncut)
2972017 Whirlpool Appliance Touch-Up Paint White
29350956 Whirlpool Spray Assembly
29WPL 876029
29350942 Whirlpool Spray Paint
29511873 Whirlpool Refrigerator Paint
29WPL 799833
29Enamel, Black (1 Qt. Uncut)
29TAPE, VINYL (3/4 X 108“)
29WP542638 Whirlpool Refrigerator Grease
29285006 Whirlpool Spray
2972032 Whirlpool Touch Up Paint Black
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
29WP505587 Whirlpool Refrigerator Sealer
29WP503695 Whirlpool Refrigerator Sealer
29876370 Whirlpool Refrigerator Insulation
29833938 Whirlpool Refrigerator Terminal
29606755 Whirlpool Refrigerator Bag
29350930 Whirlpool White Spray Paint
