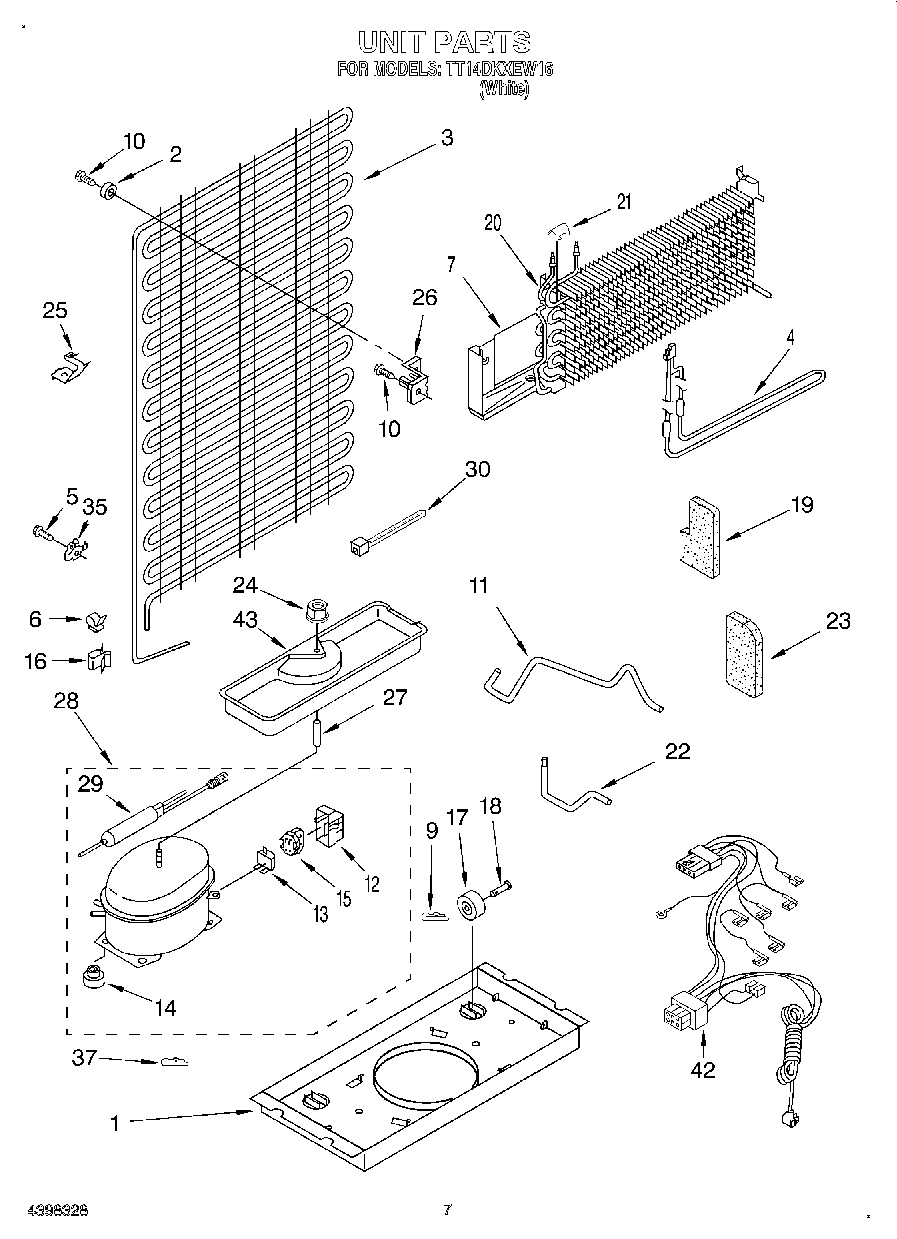

TT14DKXEW16 04 – UNIT

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
2	Bumper
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	WP965173 Whirlpool Dishwasher Screw
6	Clip, Cable
7	Heat Shield
9	WP2174706 Whirlpool Refrigerator Pin Hitch
10	WP488163 Whirlpool Refrigerator Screw
11	Tube, Discharge
12	WP2162358 Whirlpool Refrigerator Terminal Cover
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WP2163786 Whirlpool Refrigerator Grommet
15	WP4387938 Whirlpool Refrigerator Overload
16	W10812038 Whirlpool Refrigerator Clip
17	4388239 Whirlpool Refrigerator Primary Cabinet Roller
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263919 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	Tube, Process
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	Bracket, Condenser
27	Spacer
28	Installation Kit
28	876765 Whirlpool Primary Mounting Kit Refrigerator
28	W10823815 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
35	Clip, Tube
37	Clip, Compressor
42	Wire Assy. Unit
43	Start Kit
43	978027 Whirlpool Refrigerator Primary Valve
43	978030 Whirlpool Refrigerator Valve
43	WP978025 Whirlpool Refrigerator Valve
43	Tray, Evaporator
43	978026 Whirlpool Refrigerator Primary Valve
43	VALVE, ACCESS (1/2“)
43	VALVE, ACCESS (5/8“)
43	876764 Whirlpool Refrigerator Primary Valve
