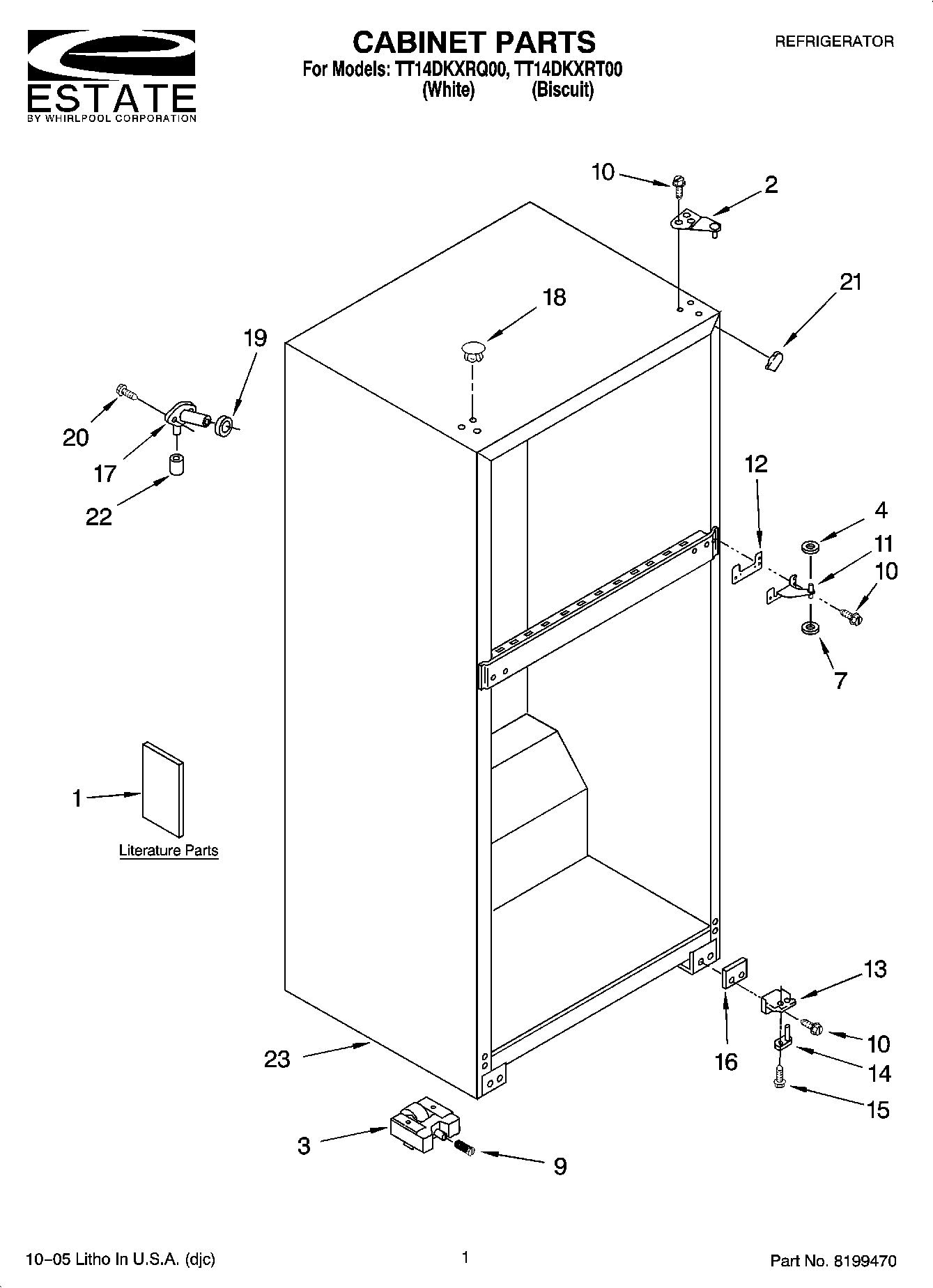

TT14DKXRT00 01 – CABINET PARTS

Products

Position	Product
1	Service & Wiring Sheet
1	Energy Label
1	Use & Care Guide
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	WP487802 Whirlpool Refrigerator Washer
7	WP487576 Whirlpool Washer
9	2222100 Whirlpool Refrigerator Screw
10	WP489497 Whirlpool Screw
11	WP2166037 Whirlpool Refrigerator Door Hinge
12	2166043 Whirlpool Refrigerator Shim
13	WP2325482 Whirlpool Bottom Hinge
14	Hinge-Pin Bott.
15	WP3428970 Whirlpool Refrigerator Screw
16	WP2201567 Whirlpool Hinge Shim
17	WP2196157 Whirlpool Fill Tube
18	Hole Plug (6) (Biscuit)
18	WP2151652 Whirlpool Refrigerator Button Plug
19	WP1106508 Whirlpool Refrigerator Gasket
20	WP488729 Whirlpool Refrigerator Door Screw
21	2202282 Whirlpool Refrigerator Filler
21	W10859322 Whirlpool Refrigerator Filler
22	WP487996 Whirlpool Refrigerator Cap Tube
23	Cabinet (Not A Serviceable Part)
