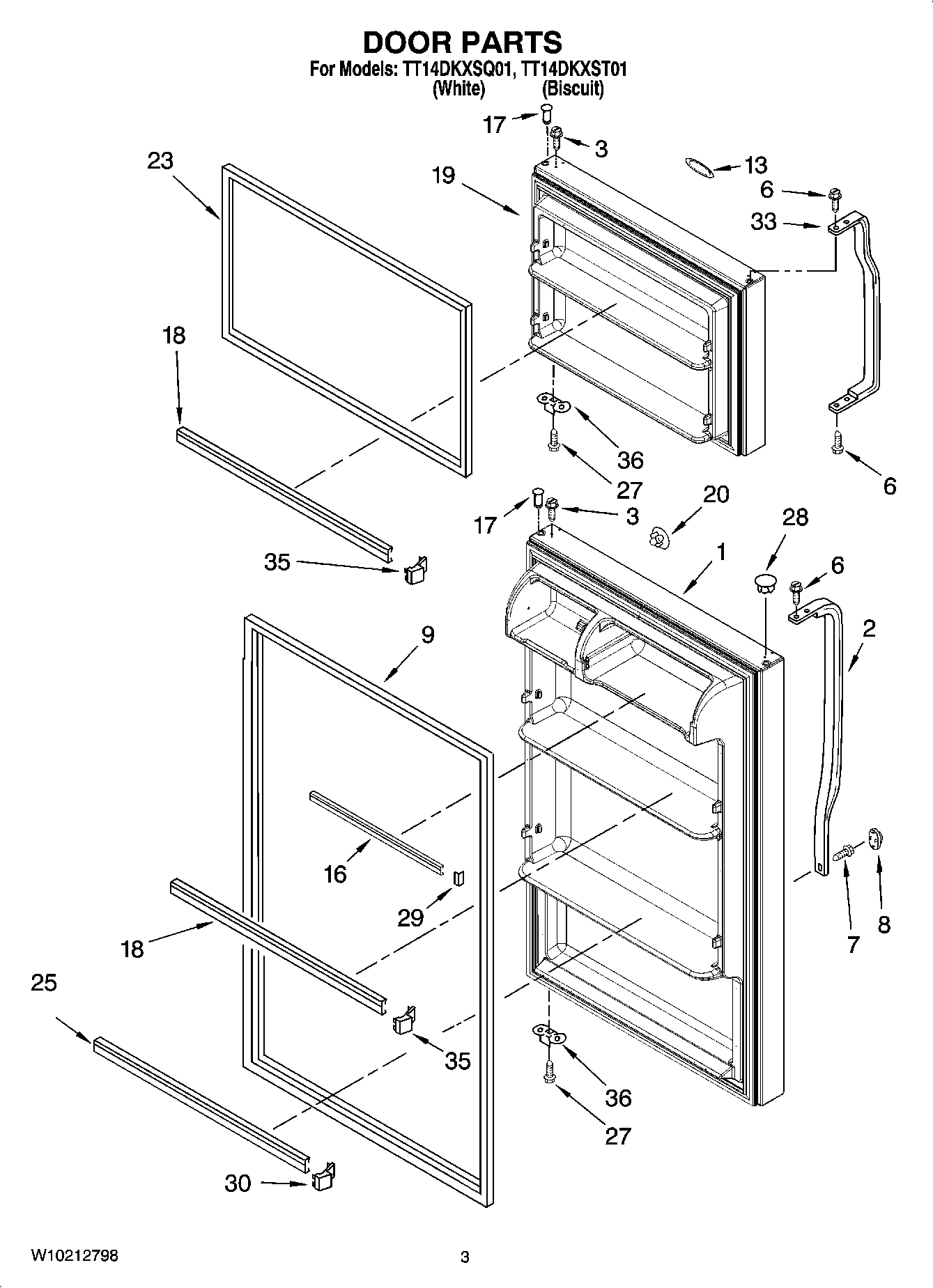

TT14DKXSQ01 02 – DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9) (White)
1	Refrigerator Door (Includes Item 9) (Biscuit)
2	HANDLE
2	WP2221946T Whirlpool Refrigerator Handle
3	WP8281206 Whirlpool Refrigerator Screw
6	WP489357 Whirlpool Recessed Screw
7	WP8281146 Whirlpool Screw
8	WP2202819W Whirlpool Refrigerator Cover
8	Cover, Screw (Biscuit)
9	WP2319265T Whirlpool Refrigerator FIP Gasket
13	Nameplate (Biscuit)
13	NAMEPLATE
16	W11129820 Whirlpool Refrigerator Door Trim
17	WP2183003 Whirlpool Thimble
18	WP2266727 Whirlpool Refrigerator Door Trim
19	Freezer Door (Includes Item 16) (White)
19	Freezer Door (Includes Item 16) (Biscuit)
20	WP2200936 Whirlpool Refrigerator Handle Plug
20	WP2189000 Whirlpool Refrigerator Handle Plug
23	WP2319263T Whirlpool Refrigerator FIP Gasket
25	WP2266738 Whirlpool Refrigerator Door Trim
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212649 Whirlpool Refrigerator Button Plug
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
29	ENDCAP-TRM
30	ENDCAP
33	WP2215015 Whirlpool Refrigerator Handle
33	HANDLE
35	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
36	Bracket, Door Stop
