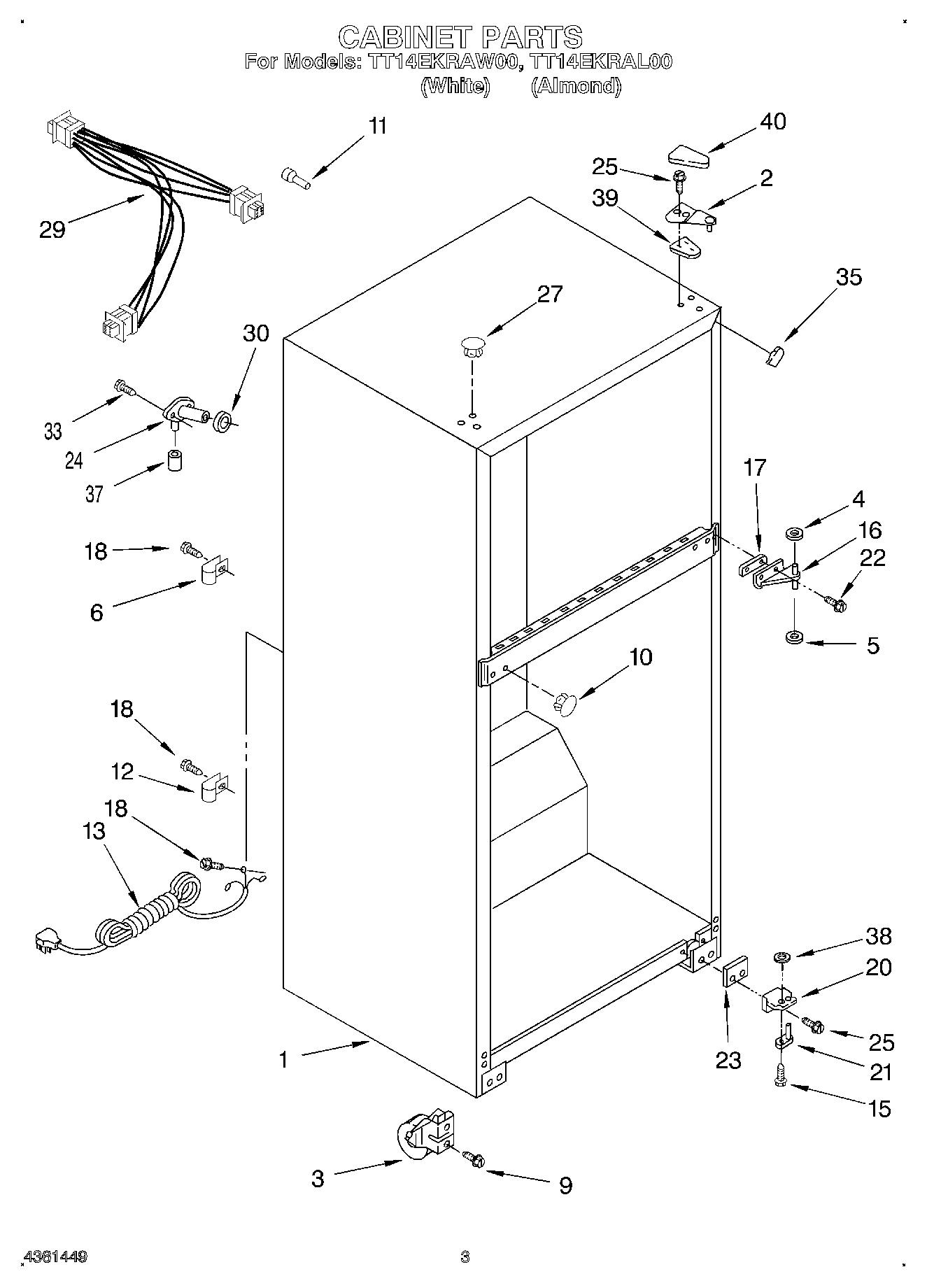

TT14EKRAW00 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2WP2189412 Whirlpool Refrigerator Door Hinge
3Roller-Front
4WP487576 Whirlpool Washer
5WP487802 Whirlpool Refrigerator Washer
6WP488366 Whirlpool Refrigerator Clamp
9Screw
10Hole Plug (4) (White)
11Tube, Water Inlet
12549193 Whirlpool Refrigerator Power Clamp
13Cord, Service
15Screw 10-32 x 5/16
16WP2166037 Whirlpool Refrigerator Door Hinge
172166043 Whirlpool Refrigerator Shim
18WP489478 Whirlpool Refrigerator Screw
20WP2325482 Whirlpool Bottom Hinge
21Hinge-Pin Bott.
22WP999367 Whirlpool Refrigerator Screw
23WP2201567 Whirlpool Hinge Shim
24WP2196157 Whirlpool Fill Tube
27Hole Plug (6) (Almond)
27WP2151652 Whirlpool Refrigerator Button Plug
29Cabinet, Wiring Assembly
30WP1106508 Whirlpool Refrigerator Gasket
35Corner Filler (Almond)
35W10859322 Whirlpool Refrigerator Filler
37WP487996 Whirlpool Refrigerator Cap Tube
38Washer, 7/64
39Shim
40WP2213360 Whirlpool Refrigerator Cover
40Cover, Hinge (Almond)
