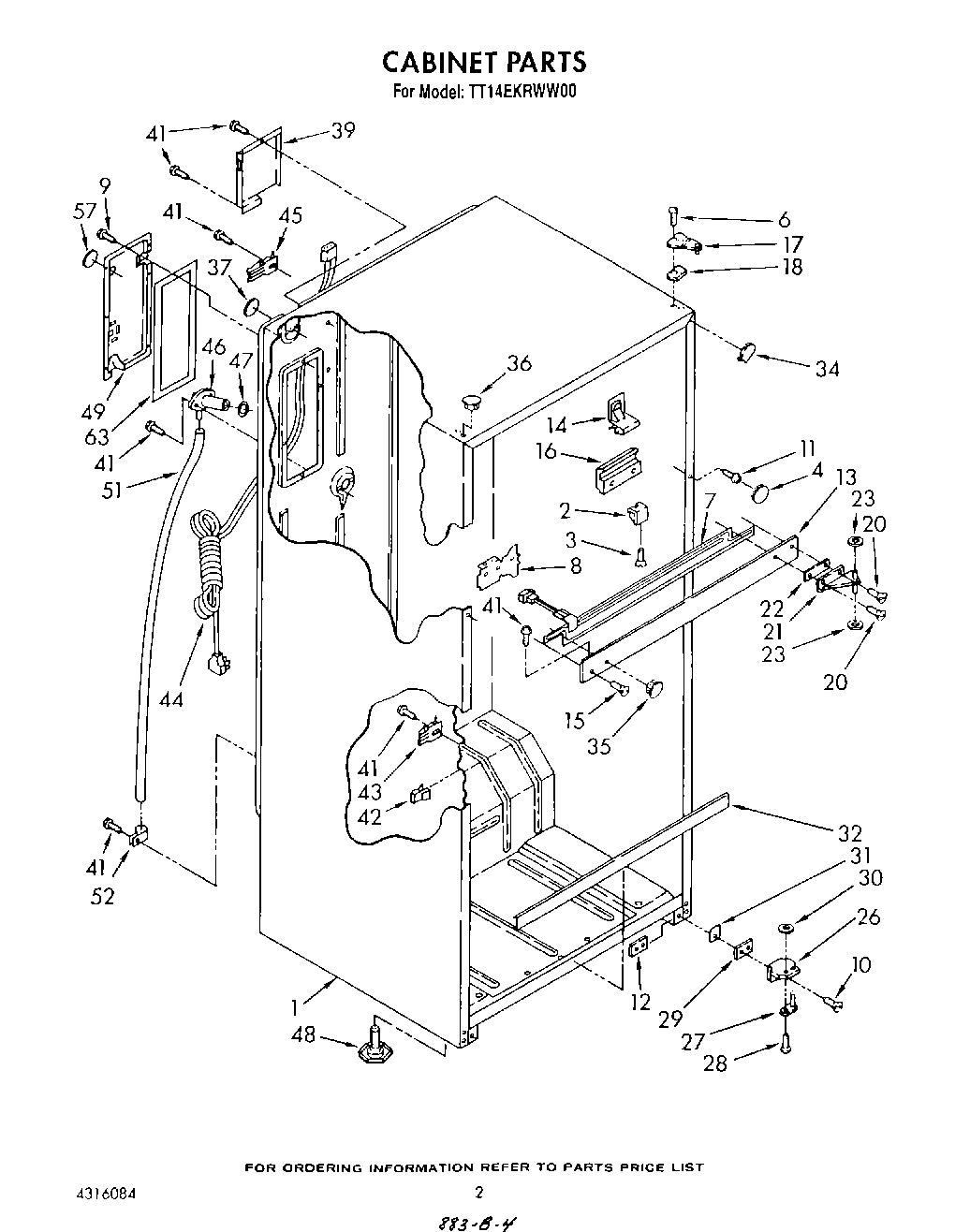

TT14EKRWW00 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Spacer (2)
3	WP489174 Whirlpool Refrigerator Screw
4	Hole Plug (2) (White)
6	WP489349 Whirlpool Refrigerator Screw
7	Heater, Mullion
8	Center Rail, Bracket (2)
9	WP489464 Whirlpool Refrigerator Screw
10	Screw
11	WPL 488844
12	Tap Plate (2)
13	Center Rail (White)
14	Clip, Center Rail (4)
15	Screw
16	Center, Rail Shim (2)
17	Hinge, Top
18	Shim, Hinge
20	WP999367 Whirlpool Refrigerator Screw
20	Screw (Repair)
21	Hinge, Center
22	Shim, Hinge Center
23	WP488296 Whirlpool Washer Refrigerator
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom
30	Washer, 7/64
31	Cover, Glider Rail (White)
32	Cover, Deck Rail (White)
34	WPL 1110684
35	Hole Plug (White)
36	Hole Plug (2) (White)
37	Hole Seal
39	WPL 942845
41	SCREW
41	WP489478 Whirlpool Refrigerator Screw
42	W10812038 Whirlpool Refrigerator Clip
43	549193 Whirlpool Refrigerator Power Clamp
44	Cord, Service
45	Clamp
46	WPL 942813
47	WPL 1106507
48	Leveler (2)
49	WPL 1106511
51	8316810 Whirlpool Refrigerator Drain Tube
52	WPL 519405
57	WPL 1120224
63	WPL 1106510
