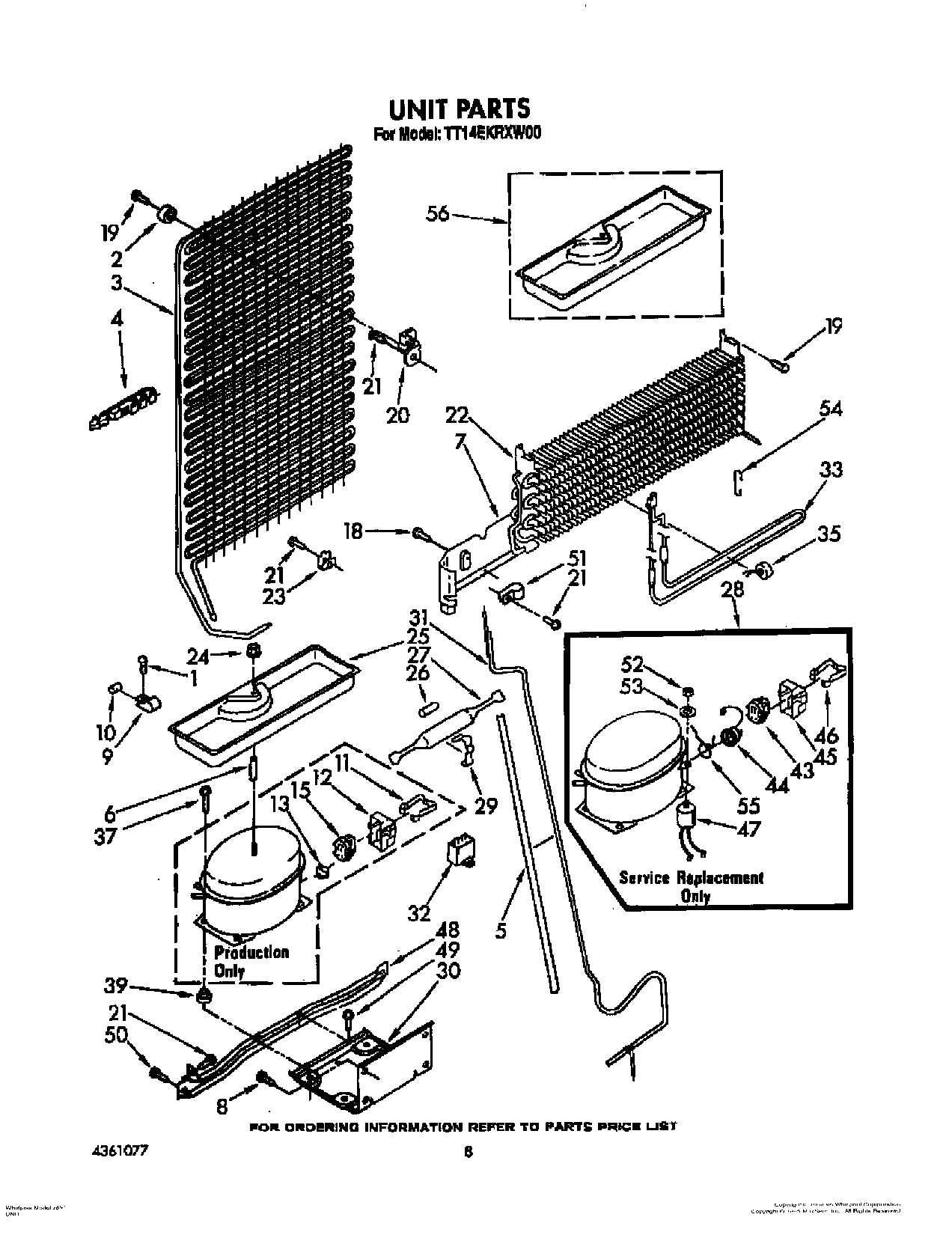

TT14EKRXW00 07 – UNIT

Products

Position	Product
1	Screw, 8-32 x 1/2
2	Bumper
3	Condenser
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
9	Clamp Tube
10	Dampener
11	case spring
12	Case, Relay
13	WP2149959 Whirlpool Refrigerator Overload
15	2154436 Whirlpool Refrigerator Start Relay
19	WP489174 Whirlpool Refrigerator Screw
20	Bracket, Condenser
21	WP489478 Whirlpool Refrigerator Screw
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Tray, Evaporator
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 32, 33, 34, 35, 36, 43, & 44)
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
33	Heater, Defrost
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39	876811 Whirlpool Grommet
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	WP489427 Whirlpool Refrigerator Screw
51	Tube, Clamp
52	Nut
53	Washer
54	Support, Heater
55	Overload Spring
56	VALVE, ACCESS (5/8“)
56	876764 Whirlpool Refrigerator Primary Valve
56	978027 Whirlpool Refrigerator Primary Valve
56	978030 Whirlpool Refrigerator Valve
56	WP978025 Whirlpool Refrigerator Valve
56	VALVE, ACCESS (1/2“)
56	978026 Whirlpool Refrigerator Primary Valve
56	Evaporator Tray
