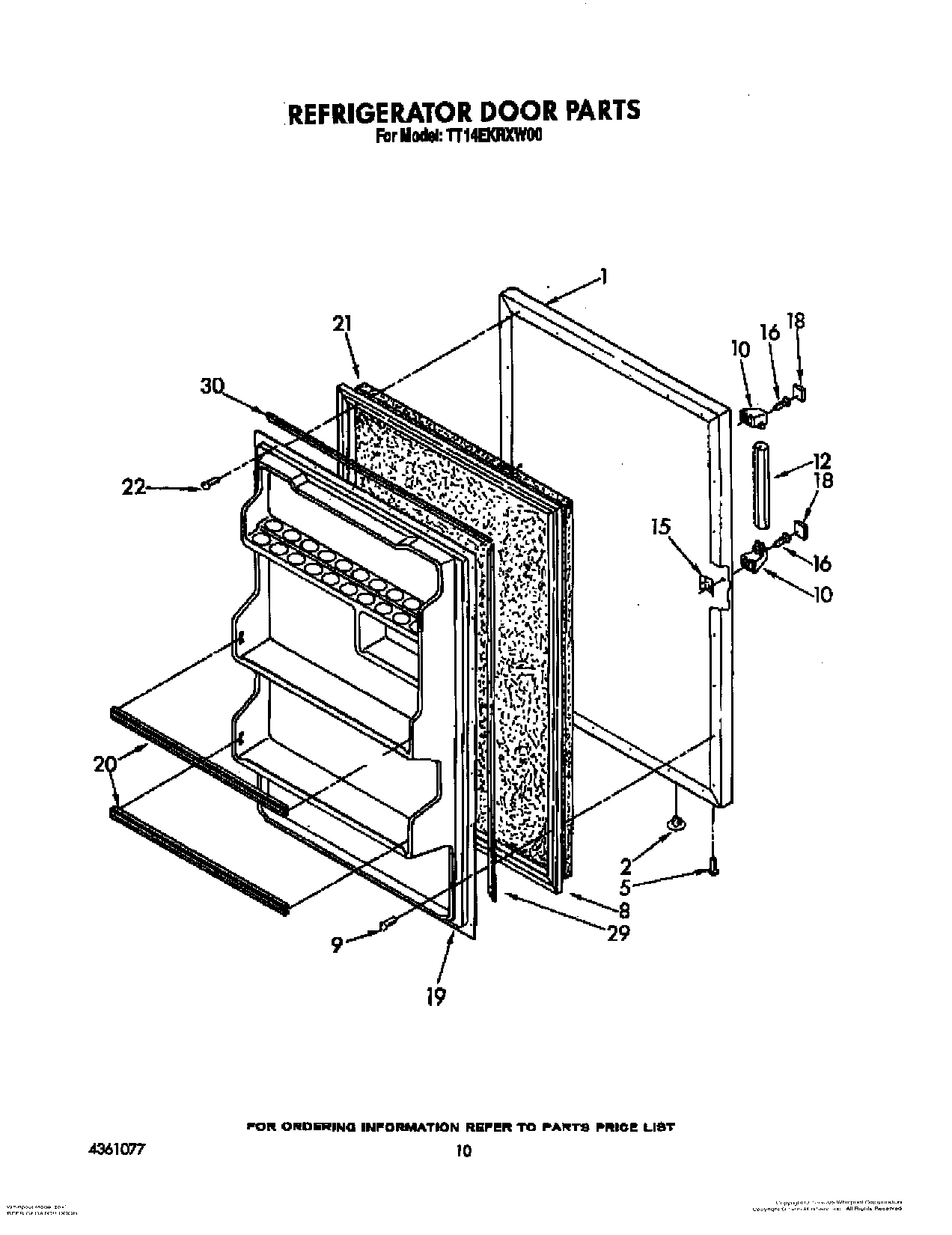

TT14EKRXW00 08 – REFRIGERATOR DOOR, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	285006 Whirlpool Spray
	1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
	WPL LIT2154703
	350942 Whirlpool Spray Paint
	WPL LIT4361077
	WPL LIT2151712
	Leveler (Thinner)
	WPL LIT2152400
	Torx Key
1	Panel, Refrigerator Door (Also Order Item 21)
2	Hole Plug (2)
5	WP8281206 Whirlpool Refrigerator Screw
8	2188445A Whirlpool Refrigerator Door Gasket Seal
9	WP489069 Whirlpool Compactor Screw
10	End Cap, Handle (2)
12	Handle, Center
15	WP939101 Whirlpool Refrigerator Plate
16	Screw, 8-15 x 1-5/8
18	Insert, Screw Cover
19	Interior Door Panel
20	Trim, Door (Top) (2)
22	WP488729 Whirlpool Refrigerator Door Screw
29	Gasket Retainer, Side (2)
30	833938 Whirlpool Refrigerator Terminal
30	876370 Whirlpool Refrigerator Insulation
30	212643 Whirlpool Refrigerator Permagum Sealer
30	WP542638 Whirlpool Refrigerator Grease
30	WP505587 Whirlpool Refrigerator Sealer
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	TAPE, VINYL (3/4 X 108“)
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	Retainer, Gasket
30	511873 Whirlpool Refrigerator Paint
30	606755 Whirlpool Refrigerator Bag
30	Enamel, Black (1 Qt. Uncut)
30	WPL 799833
30	WPL 876029
30	72032 Whirlpool Touch Up Paint Black
30	WP503695 Whirlpool Refrigerator Sealer
