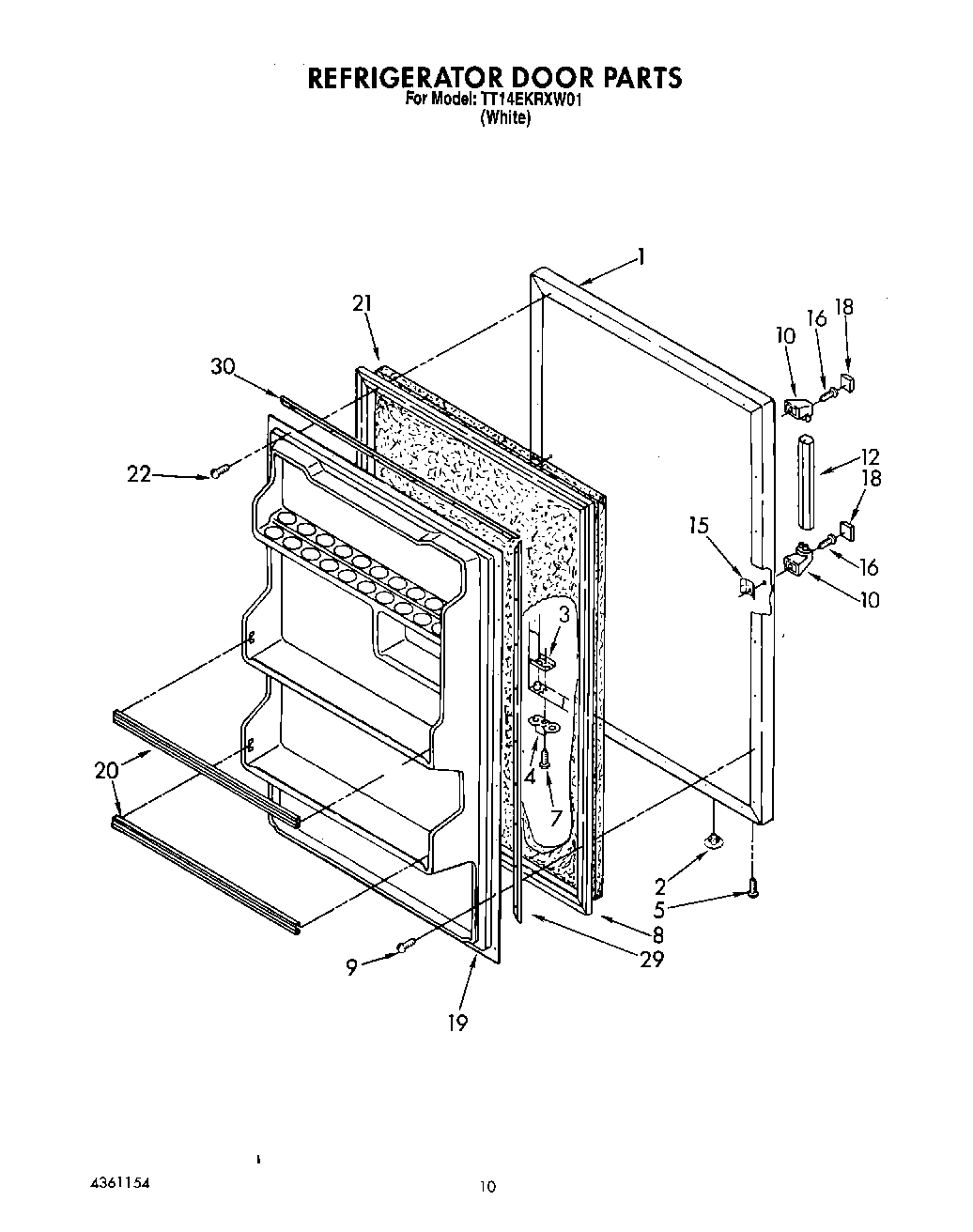

TT14EKRXW01 08 – REFRIGERATOR DOOR, LIT/OPTIONALadmin2025-04-26T12:25:26+00:00TT14EKRXW01 08 – REFRIGERATOR DOOR, LIT/OPTIONAL
Products
| Position | Product |
|---|
| WPL LIT4361154 |
| WPL LIT2151612 |
| WPL LIT2152400 |
| WPL LIT2154703 |
| 1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug |
| Torx Key |
| 1 | Panel, Refrigerator Door (Also Order Item 21) |
| 2 | Hole Plug (2) |
| 3 | W10833053 Whirlpool Refrigerator Plate |
| 4 | Bracket, Door Stop |
| 5 | WP8281206 Whirlpool Refrigerator Screw |
| 7 | WP488921 Whirlpool Refrigerator Screw |
| 8 | 2188445A Whirlpool Refrigerator Door Gasket Seal |
| 9 | WP489069 Whirlpool Compactor Screw |
| 10 | End Cap, Handle (2) |
| 12 | Handle, Center |
| 15 | WP939101 Whirlpool Refrigerator Plate |
| 16 | Screw, 8-15 x 1-5/8 |
| 18 | Insert, Screw Cover |
| 19 | Interior Door Panel |
| 20 | Trim, Door (Top) (2) |
| 22 | WP488729 Whirlpool Refrigerator Door Screw |
| 29 | Gasket Retainer, Side (2) |
| 30 | Retainer, Gasket |
| 30 | WP505587 Whirlpool Refrigerator Sealer |
| 30 | WP503695 Whirlpool Refrigerator Sealer |
| 30 | 876370 Whirlpool Refrigerator Insulation |
| 30 | 212643 Whirlpool Refrigerator Permagum Sealer |
| 30 | 833938 Whirlpool Refrigerator Terminal |
| 30 | 799344 Whirlpool Refrigerator Paint |
| 30 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 30 | 350930 Whirlpool White Spray Paint |
| 30 | 350942 Whirlpool Spray Paint |
| 30 | Leveler (Thinner) |
| 30 | WP542638 Whirlpool Refrigerator Grease |
| 30 | WPL 876029 |
| 30 | WPL 799833 |
| 30 | 285006 Whirlpool Spray |
| 30 | Enamel, Black (1 Qt. Uncut) |
| 30 | CEMENT, ALUMILASTIC (1 1/4 OZ.) |
| 30 | 511873 Whirlpool Refrigerator Paint |
| 30 | TAPE, VINYL (3/4 X 108``) |
| 30 | 606755 Whirlpool Refrigerator Bag |
| 30 | 72032 Whirlpool Touch Up Paint Black |
