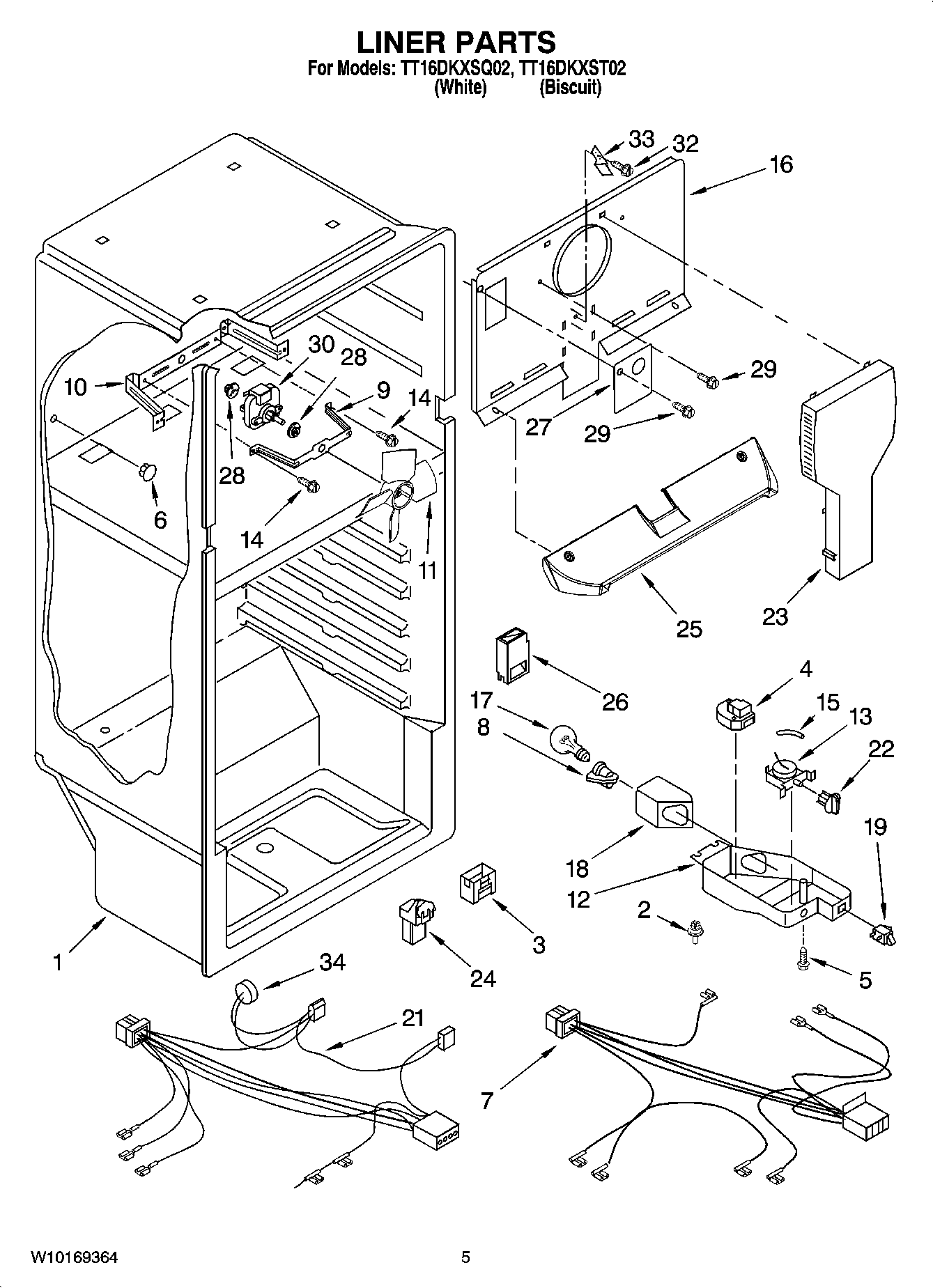

TT16DKXSQ02 03 – LINER PARTSadmin2025-04-26T12:23:48+00:00TT16DKXSQ02 03 – LINER PARTS ProductsPositionProduct1Liner (Not A Serviceable Part)2939962 Whirlpool Refrigerator Rivet3Cover, Air Diffuser4W10822278 Whirlpool Defrost Timer5WP489174 Whirlpool Refrigerator Screw6WP941839 Whirlpool Refrigerator Button Plug72176927 Whirlpool Refrigerator Wire Harness84387478 Whirlpool Refrigerator Light Socket9WPW10180172 Whirlpool Refrigerator Bracket10Fan Mounting Bracket11Fan Blade122215213 Whirlpool Refrigerator Control Box13WPW10567140 Whirlpool Refrigerator Thermostat14WP489399 Whirlpool Refrigerator Screw15WP2196003 Whirlpool Refrigerator Bar Riser16Cover-Evaporator17W11679940 Whirlpool Refrigerator Light Bulb Assembly18W11034434 Whirlpool Refrigerator Light Lens19W11384469 Whirlpool Door Switch212319440 Whirlpool Wire Harness22WP2202885 Whirlpool Refrigerator Thermal Knob239790408 Whirlpool Refrigerator Air Tower24Hood And Foil Assembly25Cover, Air Return26Air Diffuser27WP2217784 Whirlpool Refrigerator Cover28WP2264462 Whirlpool Refrigerator Grommet29WP489474 Whirlpool Refrigerator Screw30WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor32WP965173 Whirlpool Dishwasher Screw332197416 Whirlpool Refrigerator Deflector34WPW10225581 Whirlpool Refrigerator Defrost Thermostat
