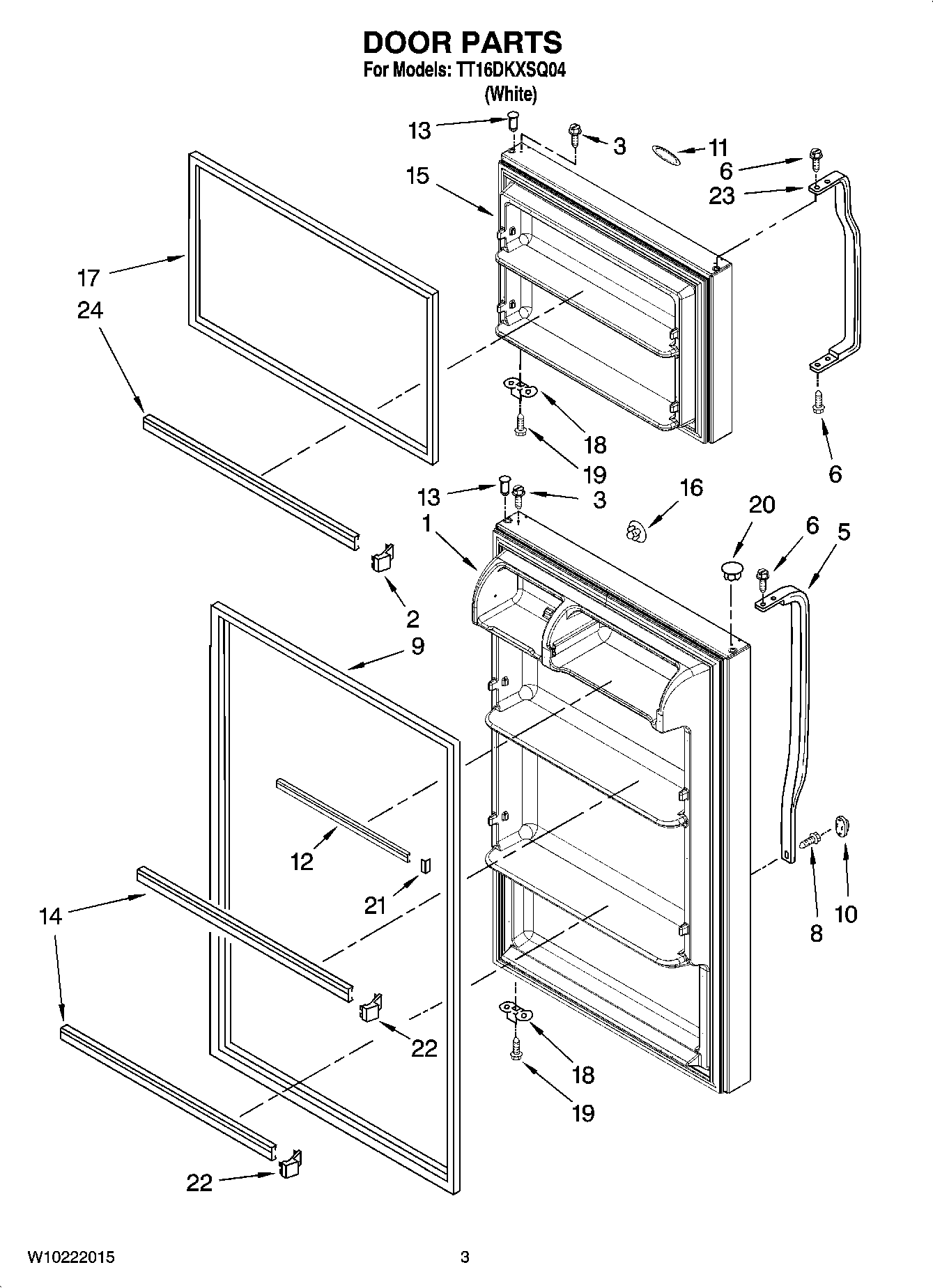

TT16DKXSQ04 02 – DOOR PARTS

Products

Position	Product
1	L2316145W Whirlpool Refrigerator Door FIP WH
2	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
3	WP8281206 Whirlpool Refrigerator Screw
5	HANDLE
6	WP489357 Whirlpool Recessed Screw
8	WP8281146 Whirlpool Screw
9	WP2319266T Whirlpool Refrigerator FIP Gasket
10	WP2202819W Whirlpool Refrigerator Cover
11	NAMEPLATE
12	W11129820 Whirlpool Refrigerator Door Trim
13	WP2183003 Whirlpool Thimble
14	WP2266738 Whirlpool Refrigerator Door Trim
15	Freezer Door (Includes Illus. 14,18 & 24)
16	WP2189000 Whirlpool Refrigerator Handle Plug
17	WP2319263T Whirlpool Refrigerator FIP Gasket
18	W11745278 Whirlpool Bracket
19	WP488921 Whirlpool Refrigerator Screw
20	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
21	ENDCAP-TRM
22	ENDCAP
23	HANDLE
24	WP2266727 Whirlpool Refrigerator Door Trim
