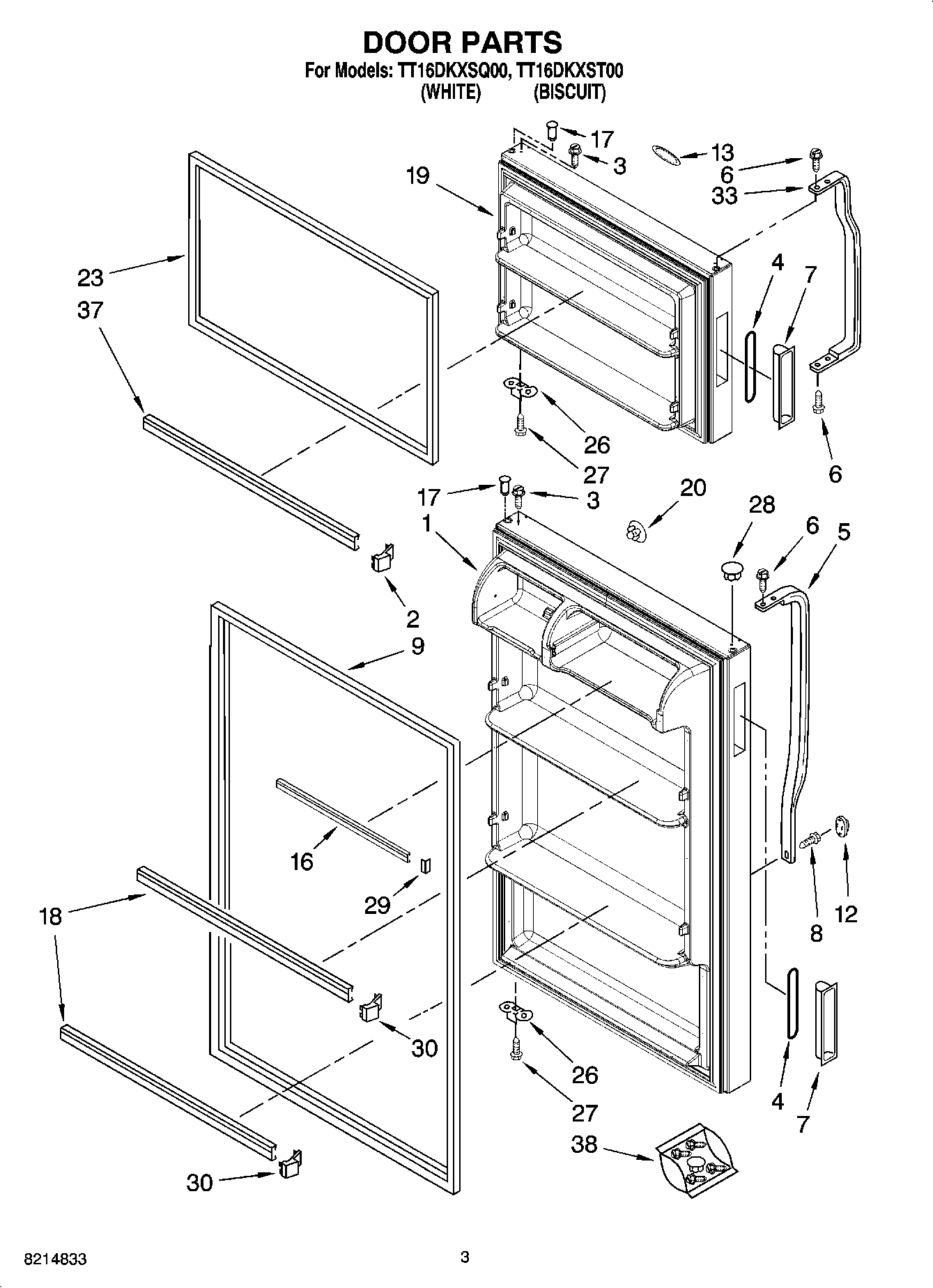

TT16DKXST00 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEMNo. 9) (BISCUIT)
1	2316342W Whirlpool Refrigerator Door FIP White
2	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
3	WP8281206 Whirlpool Refrigerator Screw
4	Gasket, Handle
5	WP2221946T Whirlpool Refrigerator Handle
5	HANDLE
6	WP489357 Whirlpool Recessed Screw
7	Handle (Biscuit)
7	WP984493 Whirlpool Refrigerator Handle
8	WP8281146 Whirlpool Screw
9	WP2319266T Whirlpool Refrigerator FIP Gasket
12	WP2202819W Whirlpool Refrigerator Cover
12	Cover, Screw (Biscuit)
13	Nameplate (Biscuit)
13	2200749 Whirlpool Refrigerator Nameplate
16	W11129820 Whirlpool Refrigerator Door Trim
17	WP2183003 Whirlpool Thimble
18	WP2266738 Whirlpool Refrigerator Door Trim
19	Freezer Door (Includes Item 23) (White)
19	2316343T Whirlpool Refrigerator Door Bin
20	WP2189000 Whirlpool Refrigerator Handle Plug
20	WP2200936 Whirlpool Refrigerator Handle Plug
23	WP2319263T Whirlpool Refrigerator FIP Gasket
26	W11745278 Whirlpool Bracket
27	WP488921 Whirlpool Refrigerator Screw
28	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
28	WP2212649 Whirlpool Refrigerator Button Plug
29	ENDCAP-TRM
30	ENDCAP
33	WP2215015 Whirlpool Refrigerator Handle
33	HANDLE
37	WP2266727 Whirlpool Refrigerator Door Trim
38	Hole Plug Kit (If Bow Handle is Removed) (Biscuit)
38	Hole Plug Kit (If Bow Handle is Removed) (White)
