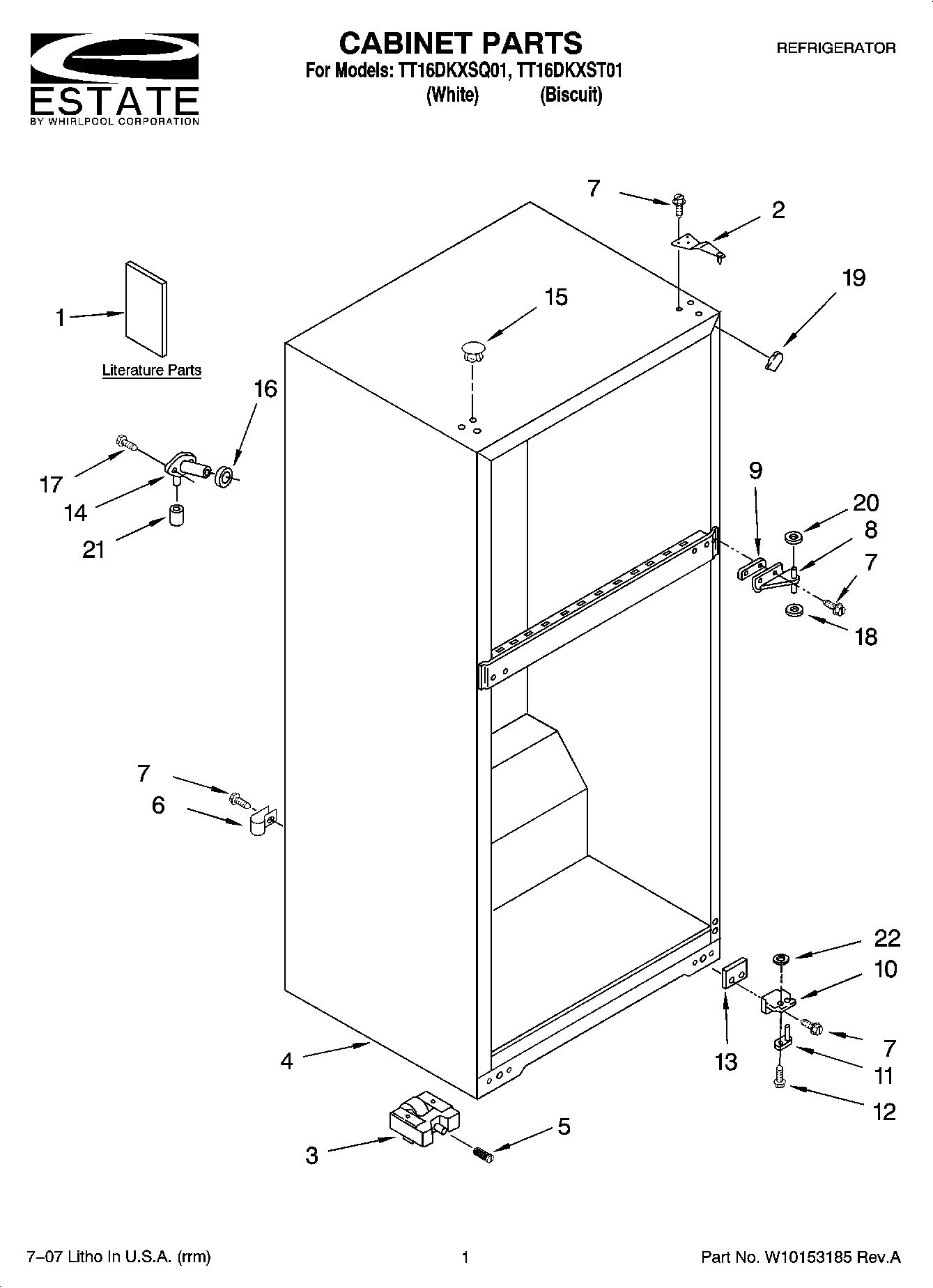

TT16DKXST01 01 – CABINET PARTS

Products

Position	Product
1	Energy Label
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Service & Wiring Sheet
1	DO-IT-YOURSELF MANUAL, REF./ FZR.
2	WP2261963 Whirlpool Refrigerator Door Hinge
3	2324094 Whirlpool Refrigerator Cabinet Roller
4	Cabinet, (Not A Serviceable Part)
5	2222100 Whirlpool Refrigerator Screw
6	549193 Whirlpool Refrigerator Power Clamp
7	WP489497 Whirlpool Screw
8	WP2166037 Whirlpool Refrigerator Door Hinge
9	2166043 Whirlpool Refrigerator Shim
10	WP2325482 Whirlpool Bottom Hinge
11	Hinge-Pin Bott.
12	WP3428970 Whirlpool Refrigerator Screw
13	WP2201567 Whirlpool Hinge Shim
14	WP2196157 Whirlpool Fill Tube
15	Hole Plug (6) (Biscuit)
15	WP2151652 Whirlpool Refrigerator Button Plug
16	WP1106508 Whirlpool Refrigerator Gasket
17	WP488729 Whirlpool Refrigerator Door Screw
18	WP489467 Whirlpool Hinge Shim
19	W10859322 Whirlpool Refrigerator Filler
19	2202282 Whirlpool Refrigerator Filler
20	WP488296 Whirlpool Washer Refrigerator
21	WP487996 Whirlpool Refrigerator Cap Tube
22	WP487576 Whirlpool Washer
