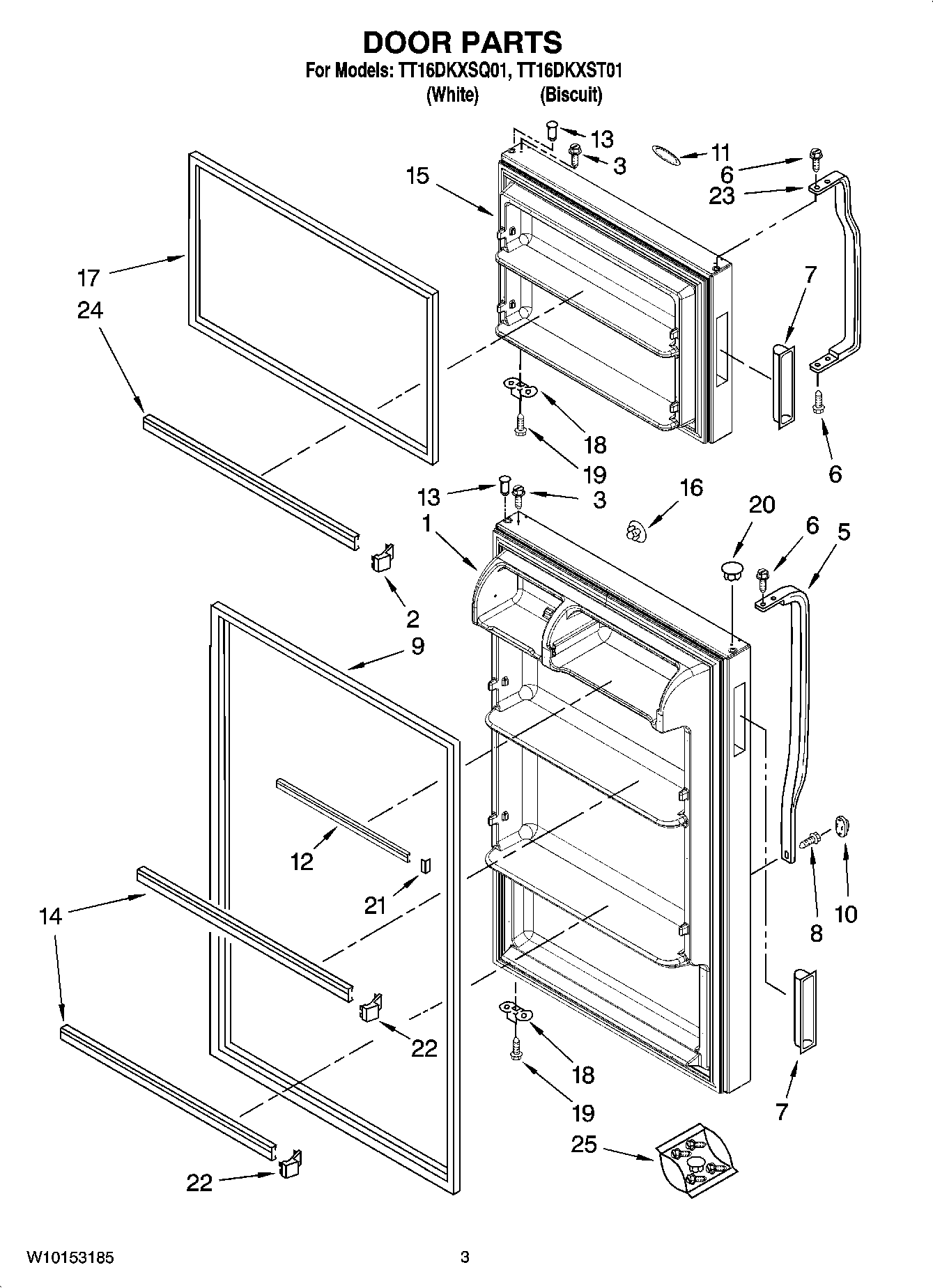

TT16DKXST01 02 – DOOR PARTS

Products

Position	Product
1	REFRIGERATOR DOOR (INCLUDES ITEMNo. 9) (BISCUIT)
1	2316342W Whirlpool Refrigerator Door FIP White
2	WP2156003 Whirlpool Refrigerator Door Shelf End Cap
3	WP8281206 Whirlpool Refrigerator Screw
5	WP2221946T Whirlpool Refrigerator Handle
5	HANDLE
6	WP489357 Whirlpool Recessed Screw
7	WP984493 Whirlpool Refrigerator Handle
7	Handle (Biscuit)
8	WP8281146 Whirlpool Screw
9	WP2319266T Whirlpool Refrigerator FIP Gasket
10	WP2202819W Whirlpool Refrigerator Cover
10	Cover, Screw (Biscuit)
11	Nameplate (Biscuit)
11	2200749 Whirlpool Refrigerator Nameplate
12	W11129820 Whirlpool Refrigerator Door Trim
13	WP2183003 Whirlpool Thimble
14	WP2266738 Whirlpool Refrigerator Door Trim
15	2316343T Whirlpool Refrigerator Door Bin
15	Freezer Door (Includes Item 23) (White)
16	WP2200936 Whirlpool Refrigerator Handle Plug
16	WP2189000 Whirlpool Refrigerator Handle Plug
17	WP2319263T Whirlpool Refrigerator FIP Gasket
18	W11745278 Whirlpool Bracket
19	WP488921 Whirlpool Refrigerator Screw
20	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
20	WP2212649 Whirlpool Refrigerator Button Plug
21	ENDCAP-TRM
22	ENDCAP
23	WP2215015 Whirlpool Refrigerator Handle
23	HANDLE
24	WP2266727 Whirlpool Refrigerator Door Trim
25	Hole Plug Kit (If Bow Handle is Removed) (Biscuit)
25	Hole Plug Kit (If Bow Handle is Removed) (White)
