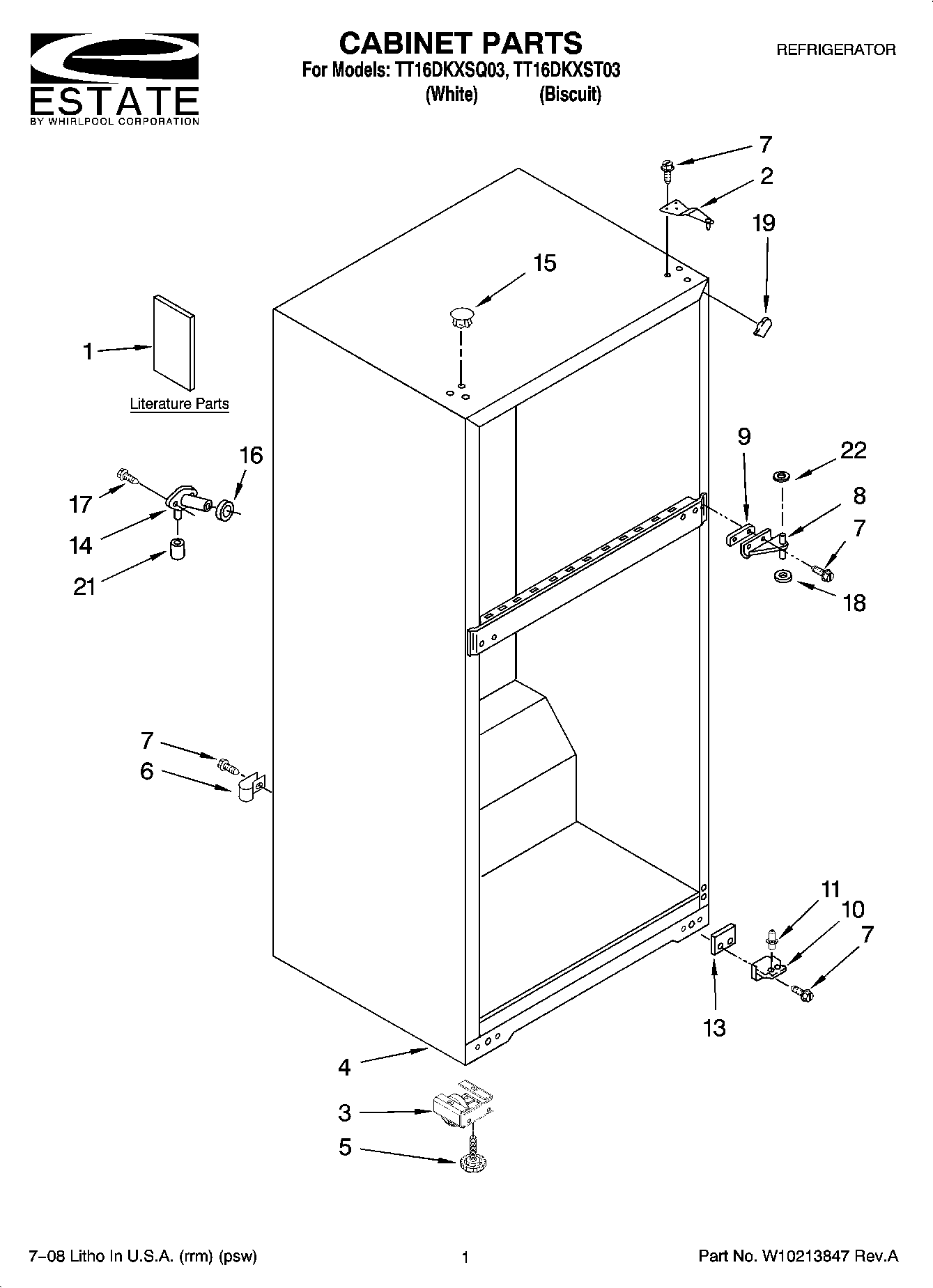

TT16DKXST03 01 – CABINET PARTSadmin2025-04-26T12:25:38+00:00TT16DKXST03 01 – CABINET PARTS ProductsPositionProduct1DO-IT-YOURSELF MANUAL, REF./ FZR.1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS1Service & Wiring Sheet1Energy Label1Use & Care Guide2WP2261963 Whirlpool Refrigerator Door Hinge3WPW10142530 Whirlpool Refrigerator Cabinet Roller4Cabinet, (Not A Serviceable Part)5WPW10133299 Whirlpool Refrigerator Screw6549193 Whirlpool Refrigerator Power Clamp7WP489497 Whirlpool Screw8WP2166037 Whirlpool Refrigerator Door Hinge92166043 Whirlpool Refrigerator Shim10WP2325482 Whirlpool Bottom Hinge11WP2325483 Whirlpool Hinge Pin13WP2201567 Whirlpool Hinge Shim14WP2196157 Whirlpool Fill Tube15WP2151652 Whirlpool Refrigerator Button Plug15Hole Plug (6) (Biscuit)16WP1106508 Whirlpool Refrigerator Gasket17WP488729 Whirlpool Refrigerator Door Screw18WP489467 Whirlpool Hinge Shim19W10859322 Whirlpool Refrigerator Filler192202282 Whirlpool Refrigerator Filler21WP487996 Whirlpool Refrigerator Cap Tube22WP487576 Whirlpool Washer
