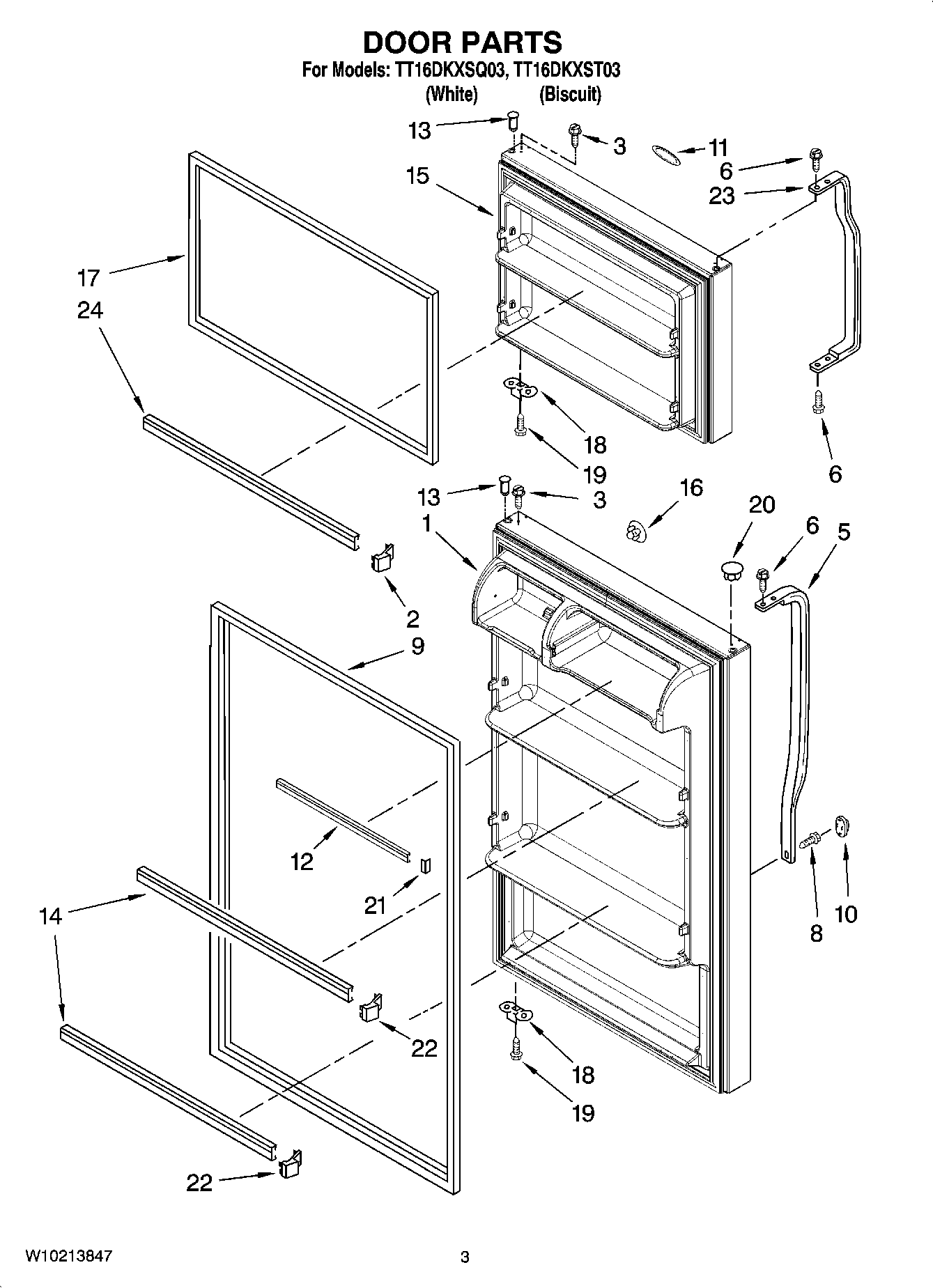

TT16DKXST03 02 – DOOR PARTSadmin2025-04-26T12:23:37+00:00TT16DKXST03 02 – DOOR PARTS ProductsPositionProduct1Refrigerator Door (Includes Item 9) (Biscuit)1L2316145W Whirlpool Refrigerator Door FIP WH2WP2156003 Whirlpool Refrigerator Door Shelf End Cap3WP8281206 Whirlpool Refrigerator Screw5HANDLE5WP2221946T Whirlpool Refrigerator Handle6WP489357 Whirlpool Recessed Screw8WP8281146 Whirlpool Screw9WP2319266T Whirlpool Refrigerator FIP Gasket10Cover, Screw (Biscuit)10WP2202819W Whirlpool Refrigerator Cover11NAMEPLATE11Nameplate (Biscuit)12W11129820 Whirlpool Refrigerator Door Trim13WP2183003 Whirlpool Thimble14WP2266738 Whirlpool Refrigerator Door Trim15W11084609 Whirlpool Refrigerator Door Assembly15Freezer Door (Includes Illus. 14,18 & 24)16WP2189000 Whirlpool Refrigerator Handle Plug16WP2200936 Whirlpool Refrigerator Handle Plug17WP2319263T Whirlpool Refrigerator FIP Gasket18W11745278 Whirlpool Bracket19WP488921 Whirlpool Refrigerator Screw20WP2212649 Whirlpool Refrigerator Button Plug20WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug21ENDCAP-TRM22ENDCAP23HANDLE23WP2215015 Whirlpool Refrigerator Handle24WP2266727 Whirlpool Refrigerator Door Trim
