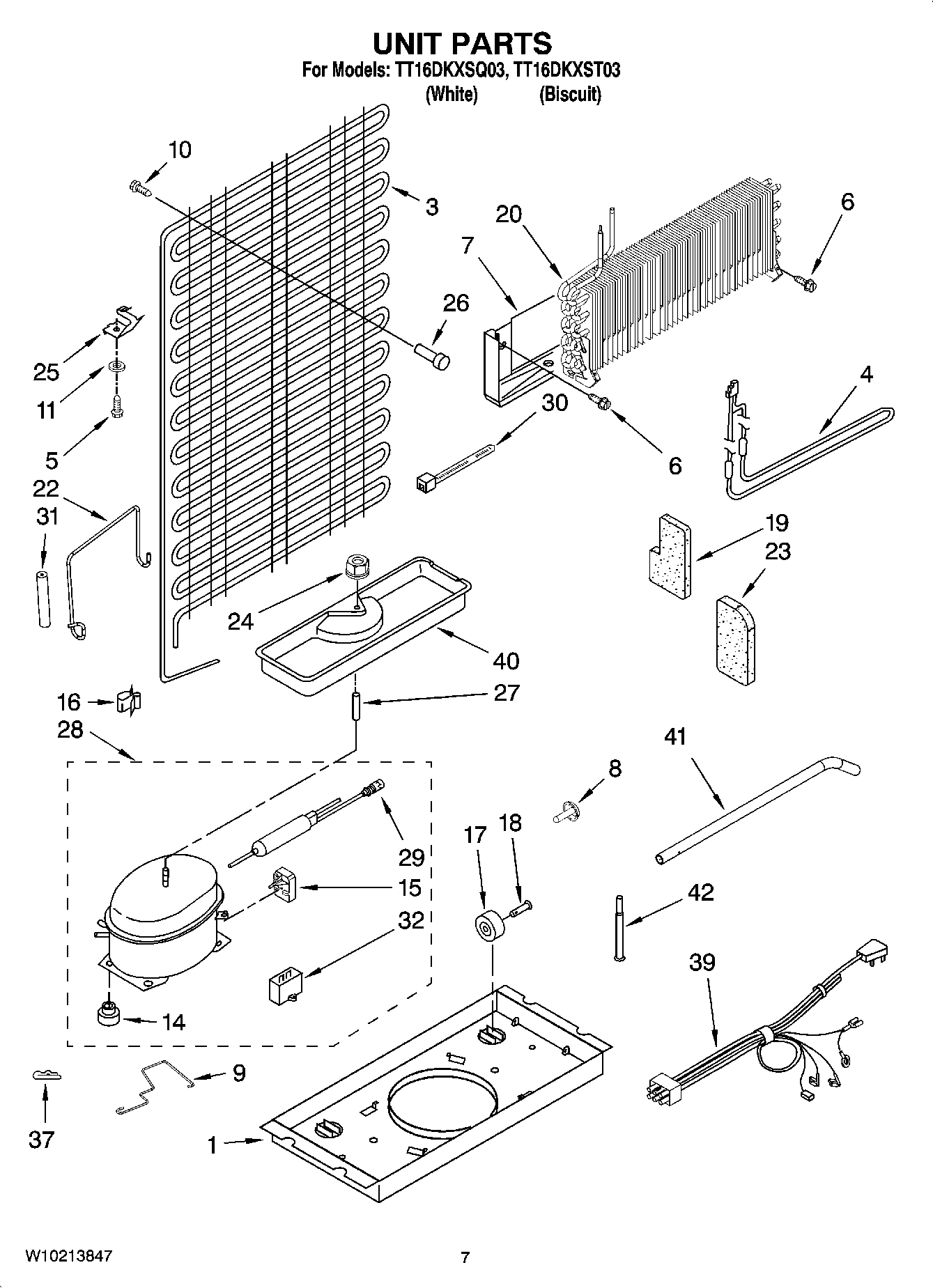

TT16DKXST03 04 – UNIT PARTS

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
1	WPW10222451 Whirlpool Refrigerator Support
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	2256637 Whirlpool Refrigerator Screw
6	WP489442 Whirlpool Refrigerator Screw
7	Heat Shield
8	Snap Rivet
9	2223313 Whirlpool Clip
10	Screw
11	8526417 Whirlpool Washer
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WP2163786 Whirlpool Refrigerator Grommet
15	2320151 Whirlpool Refrigerator Start Device
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
22	Ext. Tube-Heat
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
27	Spacer
28	W10309988 Whirlpool Refrigerator Compressor
29	WPW10143759 Whirlpool Dryer Filter
30	WPW10339879 Whirlpool Wire Tie
31	SLEEVE
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
37	Clip, Compressor
39	W10151654 Whirlpool Refrigerator Wire Harness
40	Tray, Evaporator
41	2264423 Whirlpool Tube
42	W11661102 Whirlpool Tube
