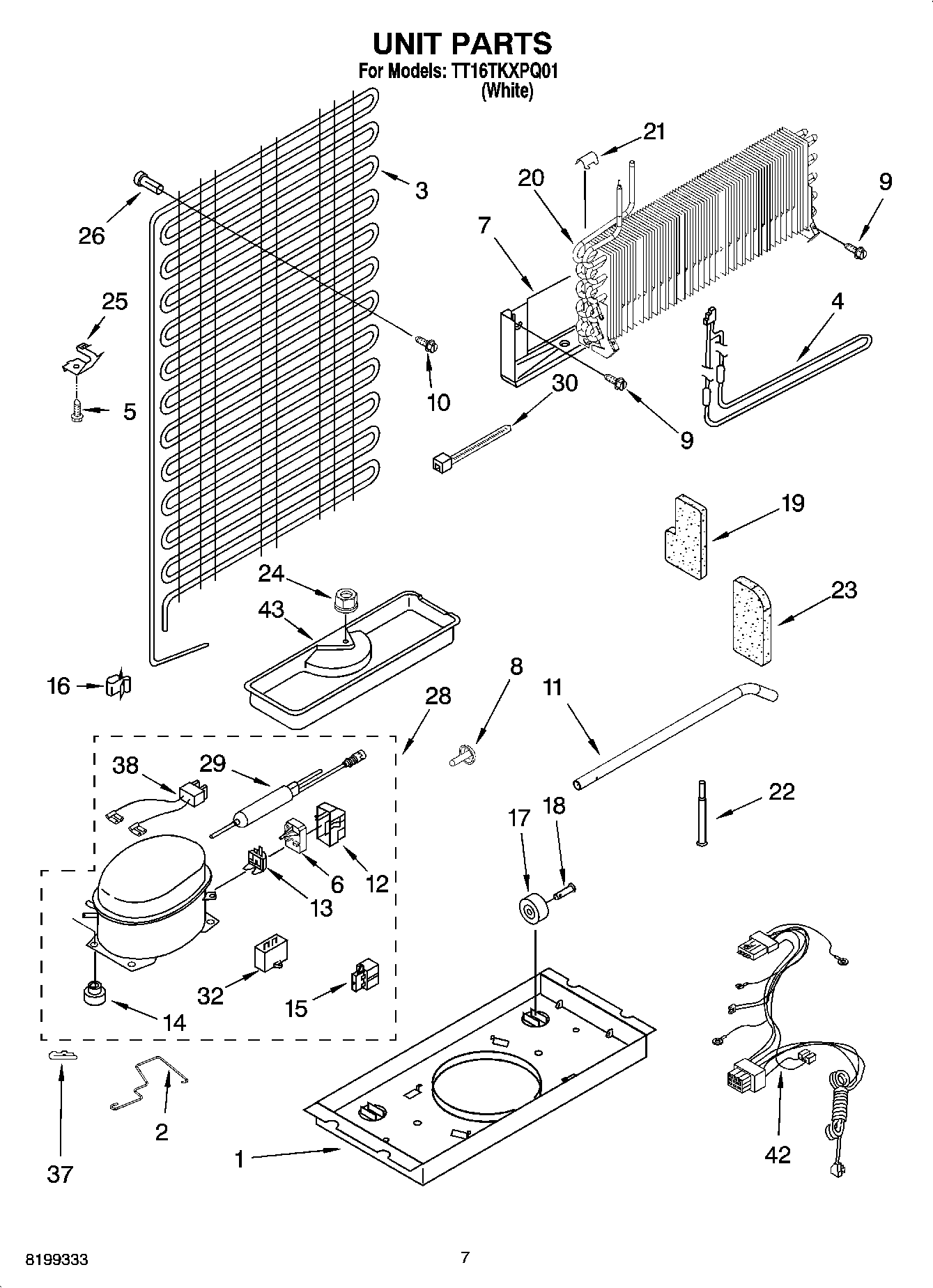

TT16TKXPQ01 04 – UNIT PARTS

TT16TKXPQ01 04 – UNIT PARTS

Written by

in

TT16TKXPQ01 04 – UNIT PARTS

Products

Position	Product
1	WPW10222451 Whirlpool Refrigerator Support
2	Retainer
3	WP2252730 Whirlpool Refrigerator Condenser
4	WP2263749 Whirlpool Defrost Heater Assembly
5	WP965173 Whirlpool Dishwasher Screw
6	8201647 Whirlpool Refrigerator Start Device
7	Heat Shield
8	Snap Rivet
9	WP489497 Whirlpool Screw
10	Screw
11	2264423 Whirlpool Tube
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	WP2214067 Whirlpool Refrigerator Overload Relay
14	WP4387558 Whirlpool Refrigerator Compressor Grommet
14	WP2163786 Whirlpool Refrigerator Grommet
15	W10920279 Whirlpool Refrigerator Start Relay
16	W10812038 Whirlpool Refrigerator Clip
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	8201619 Whirlpool Refrigerator Support Assembly
20	WP2263920 Whirlpool Refrigerator Evaporator
21	9791833 Whirlpool Refrigerator Clip
22	W11661102 Whirlpool Tube
24	285002 Whirlpool Nut
25	4386951 Whirlpool Refrigerator Clip
26	2258452 Whirlpool Refrigerator Spacer
28	W10309988 Whirlpool Refrigerator Compressor
29	W10843121 Whirlpool Refrigerator Tube
30	WPW10339879 Whirlpool Wire Tie
32	WPW10662129 Whirlpool Refrigerator Run Capacitor
37	Clip, Compressor
38	WP2172890 Whirlpool Refrigerator Wire
42	2258529 Whirlpool Refrigerator Wire Harness
43	VALVE, ACCESS (1/2“)
43	Following Parts Not Illustrated and Optional Parts Not Included
43	876764 Whirlpool Refrigerator Primary Valve
43	978027 Whirlpool Refrigerator Primary Valve
43	978026 Whirlpool Refrigerator Primary Valve
43	978030 Whirlpool Refrigerator Valve
43	Tray, Evaporator
43	VALVE, ACCESS (5/8“)
43	WP978025 Whirlpool Refrigerator Valve
43	REFRIGERANT CHARGE 3.75 Ozs. (R134A)
