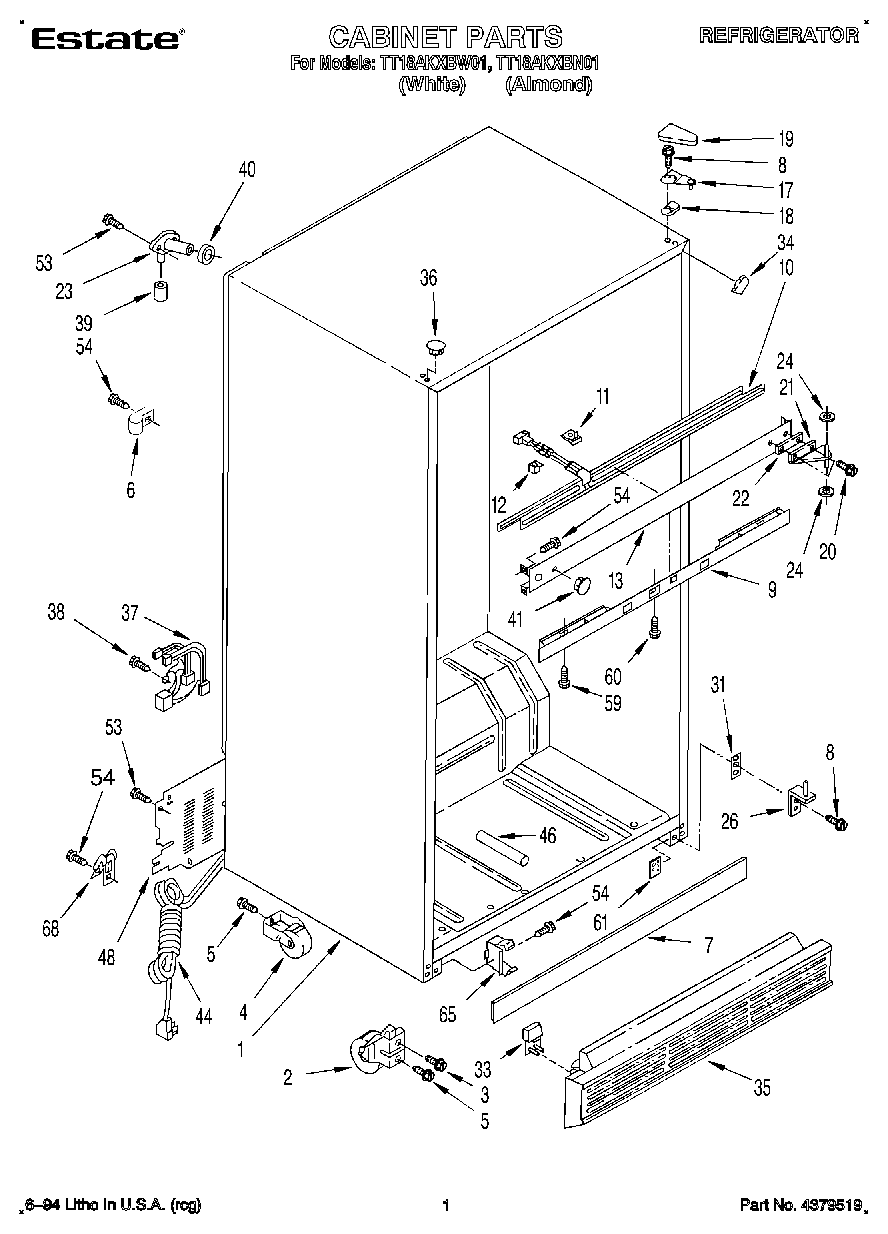

TT18AKXBW01 01 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
3	Screw, 5/16-24 x 1-1/4
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	WP489427 Whirlpool Refrigerator Screw
6	WP488366 Whirlpool Refrigerator Clamp
7	Deck Rail Cover
9	Control, Front Cover
10	Heater, Mullion
11	Clip, Center Rail (4)
12	Spacer (3)
13	Center Rail
17	WP2189412 Whirlpool Refrigerator Door Hinge
18	Shim, Hinge Top
19	Cover, Hinge (Almond)
19	WP2213360 Whirlpool Refrigerator Cover
20	WP999367 Whirlpool Refrigerator Screw
21	Hinge, Center
22	Shim, Hinge Center
23	WP2196157 Whirlpool Fill Tube
24	WP487802 Whirlpool Refrigerator Washer
26	WP2254473 Whirlpool Refrigerator Door Hinge
31	Shim, Bottom Hinge
33	Corner Filler, Grille (White)
33	Corner Filler, Grille (Almond)
34	Filler, Wrapper Corner (2) (White)
34	Filler, Wrapper Corner (2) (Almond)
35	Grille
35	Grille (Almond)
36	WP2151652 Whirlpool Refrigerator Button Plug
36	Hole Plug (6) (Almond)
37	Wiring Assembly, Intermediate
38	WP250830 Whirlpool Refrigerator Screw
39	WP487996 Whirlpool Refrigerator Cap Tube
40	WP1106508 Whirlpool Refrigerator Gasket
41	Hole Plug (4) (White)
44	Cord, Service
46	Fitting, Drain
48	Cover, Unit
53	WP489464 Whirlpool Refrigerator Screw
54	WP489478 Whirlpool Refrigerator Screw
59	WP488163 Whirlpool Refrigerator Screw
60	WP489174 Whirlpool Refrigerator Screw
61	Tap-Plate, Bottom Hinge
65	WP2155013 Whirlpool Refrigerator Clip
68	549193 Whirlpool Refrigerator Power Clamp
