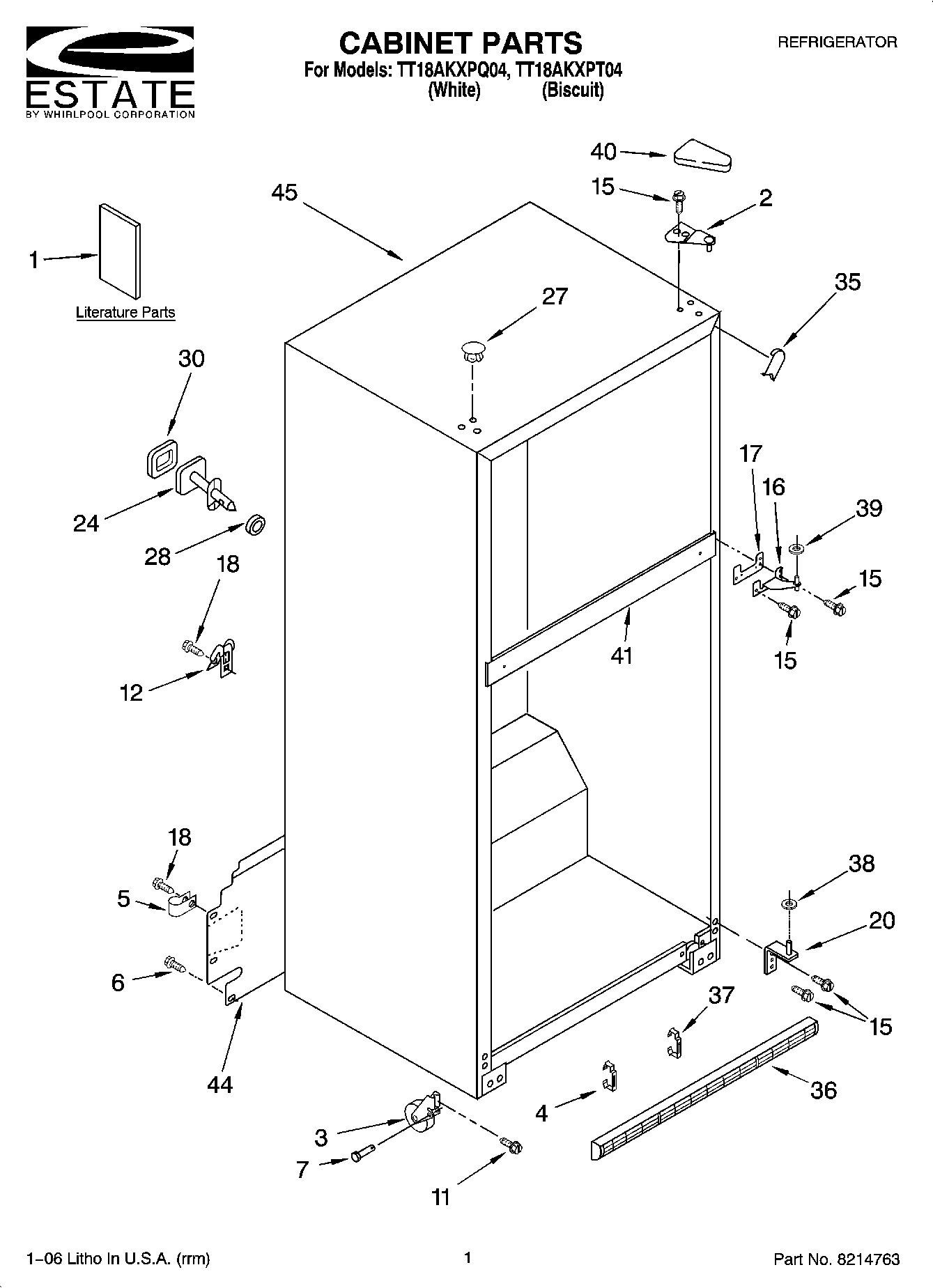

TT18AKXPQ04 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1Energy Label
1Service & Wiring Sheet
1Customer Instructions
2WP2261963 Whirlpool Refrigerator Door Hinge
3WP2166108 Whirlpool Refrigerator Cabinet Roller
4CLIP, GRILLE
5WP488366 Whirlpool Refrigerator Clamp
6WP489427 Whirlpool Refrigerator Screw
7W11594405 Whirlpool Axle
11WP3400504 Whirlpool Refrigerator Screw
12549193 Whirlpool Refrigerator Power Clamp
15WP489497 Whirlpool Screw
16WP2254618 Whirlpool Center Door Hinge
17WP2183854 Whirlpool Refrigerator Shim
18WP489464 Whirlpool Refrigerator Screw
20WP2254473 Whirlpool Refrigerator Door Hinge
24Fitting, Water Tube (Not Serviced)
27Hole Plug (6) (Biscuit)
27WP2151652 Whirlpool Refrigerator Button Plug
28Seal, Front (Not Serviced)
30Seal, Rear (Not Serviced)
35WPW10283959 Whirlpool Refrigerator Filler
35W10283958 Whirlpool Refrigerator Filler
36WP2254386 Whirlpool Refrigerator Grille
372254385 Whirlpool Refrigerator Clip
38WP487576 Whirlpool Washer
39WP489467 Whirlpool Hinge Shim
402213364 Whirlpool Refrigerator Cover
40WP2213360 Whirlpool Refrigerator Cover
41Rail, Center (Not Serviced)
44Cover, Unit
45Cabinet, (Not A Serviceable Part)
