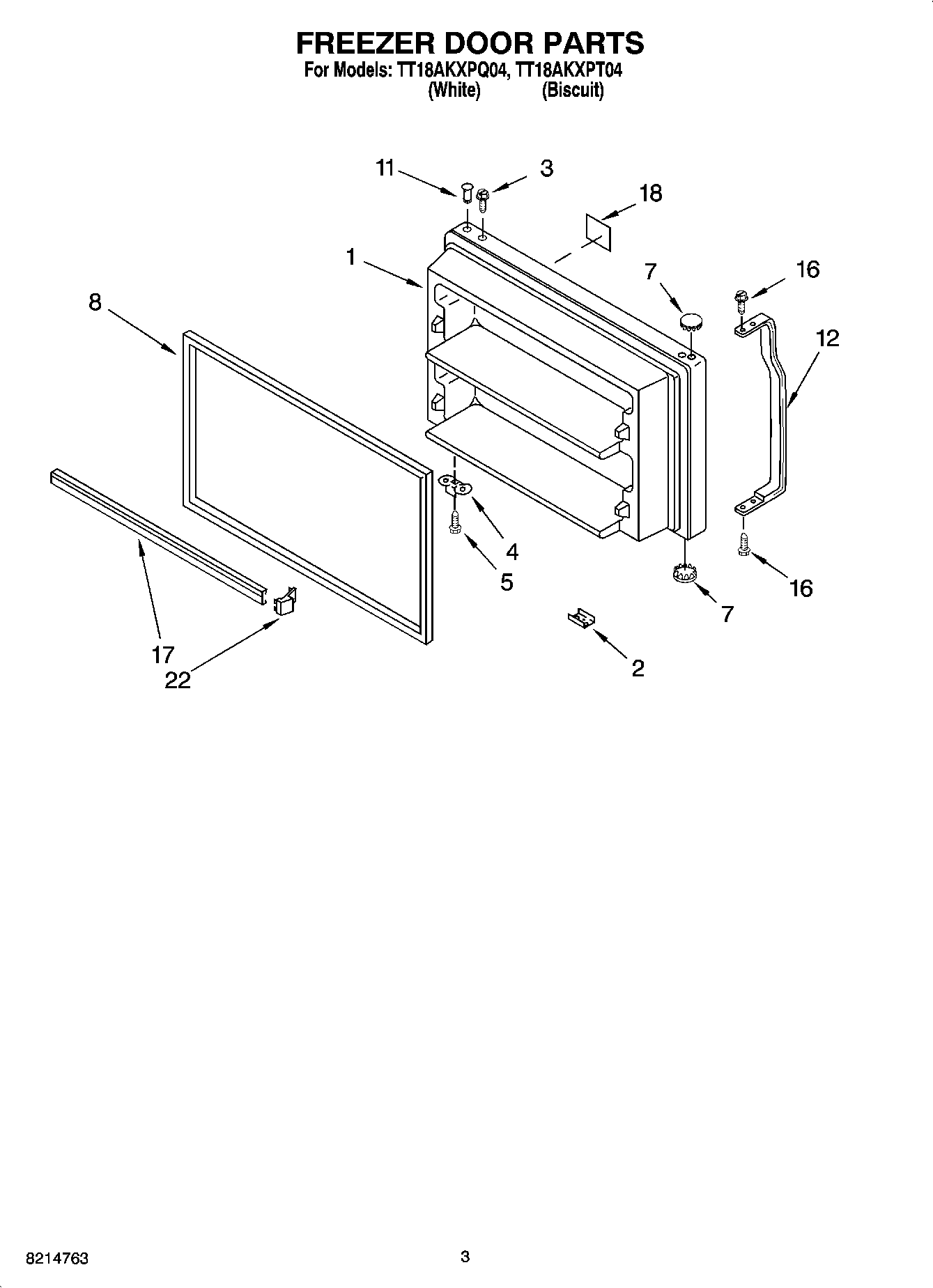

TT18AKXPQ04 02 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Includes Illus. 4, 17 & 18) (White)
1Freezer Door (Includes Illus. 4,17 & 18) (Biscuit)
2W10833053 Whirlpool Refrigerator Plate
3WP8281206 Whirlpool Refrigerator Screw
4W11745278 Whirlpool Bracket
5WP488921 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7WP2212649 Whirlpool Refrigerator Button Plug
82159327 Whirlpool Refrigerator Door Gasket
11WP2183003 Whirlpool Thimble
12WP2202806W Whirlpool Refrigerator Handle
12Handle, F.C. (Biscuit)
16WP489357 Whirlpool Recessed Screw
17Trim-Door (2)
182200749 Whirlpool Refrigerator Nameplate
18Nameplate (Biscuit)
22WP2156003 Whirlpool Refrigerator Door Shelf End Cap
