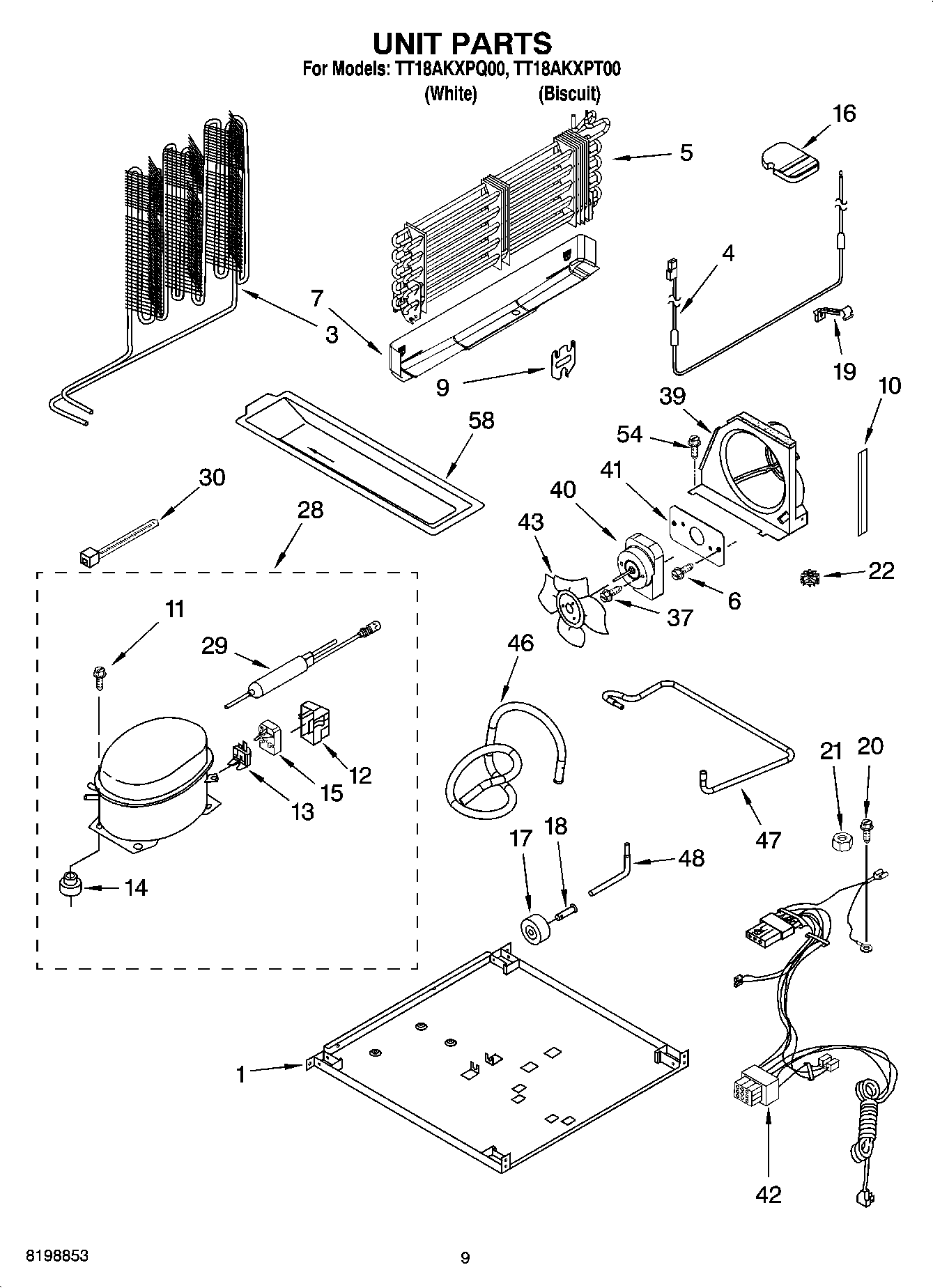

TT18AKXPT00 06 – UNIT PARTS, OPTIONAL PARTS

TT18AKXPT00 06 – UNIT PARTS, OPTIONAL PARTS

Written by

in

TT18AKXPT00 06 – UNIT PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI133024A
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799832
WPL 799833
WPL 876029
W11729596 Whirlpool Ice Maker Field Install Kit
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI133020A
WPL ARI133021A
WPL ARI133022A
WPL ARI133023A
WP505587 Whirlpool Refrigerator Sealer
WP503695 Whirlpool Refrigerator Sealer
212643 Whirlpool Refrigerator Permagum Sealer
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
606755 Whirlpool Refrigerator Bag
350930 Whirlpool White Spray Paint
876370 Whirlpool Refrigerator Insulation
350956 Whirlpool Spray Assembly
833938 Whirlpool Refrigerator Terminal
1Plate, Unit Mounting
3WP2214960 Whirlpool Refrigerator Condenser
4WP2315531 Whirlpool Refrigerator Heater
5Evaporator Assy.
6WP8281196 Whirlpool Screw
7Drain Pan
9Bracket, Heater
10Extension, Air Baffle
12WP2162358 Whirlpool Refrigerator Terminal Cover
13WP4387938 Whirlpool Refrigerator Overload
13WP2149959 Whirlpool Refrigerator Overload
14876811 Whirlpool Grommet
14WP4387558 Whirlpool Refrigerator Compressor Grommet
15WP2258450 Whirlpool Refrigerator Start Device
16Support Block
17WPW10475495 Whirlpool Roller Assembly
18W11594405 Whirlpool Axle
19Clip, Heater
20WP489128 Whirlpool Refrigerator Screw
21Nut (Not Serviced)
22Grommet
28W10823815 Whirlpool Refrigerator Compressor
29W10843121 Whirlpool Refrigerator Tube
30WPW10339879 Whirlpool Wire Tie
378281197 Whirlpool Refrigerator Screw
39Air Baffle
40W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
41Plate
42Wire Assy. Unit
43W11458267 Whirlpool Refrigerator Fan Blade
46Tube, Discharge
472205293 Whirlpool Refrigerator Tube
48W11676464 Whirlpool Tube
543400518 Whirlpool Oven Foot Mount Screw
58VALVE, ACCESS (5/8“)
58Following Parts Not Illustrated and Optional Parts Not Included
58978026 Whirlpool Refrigerator Primary Valve
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58VALVE, ACCESS (1/2“)
58876764 Whirlpool Refrigerator Primary Valve
58WP978025 Whirlpool Refrigerator Valve
588201826 Whirlpool Refrigerator Evaporator Tray
58REFRIGERANT CHARGE 4.00 Ozs. (R134A)
