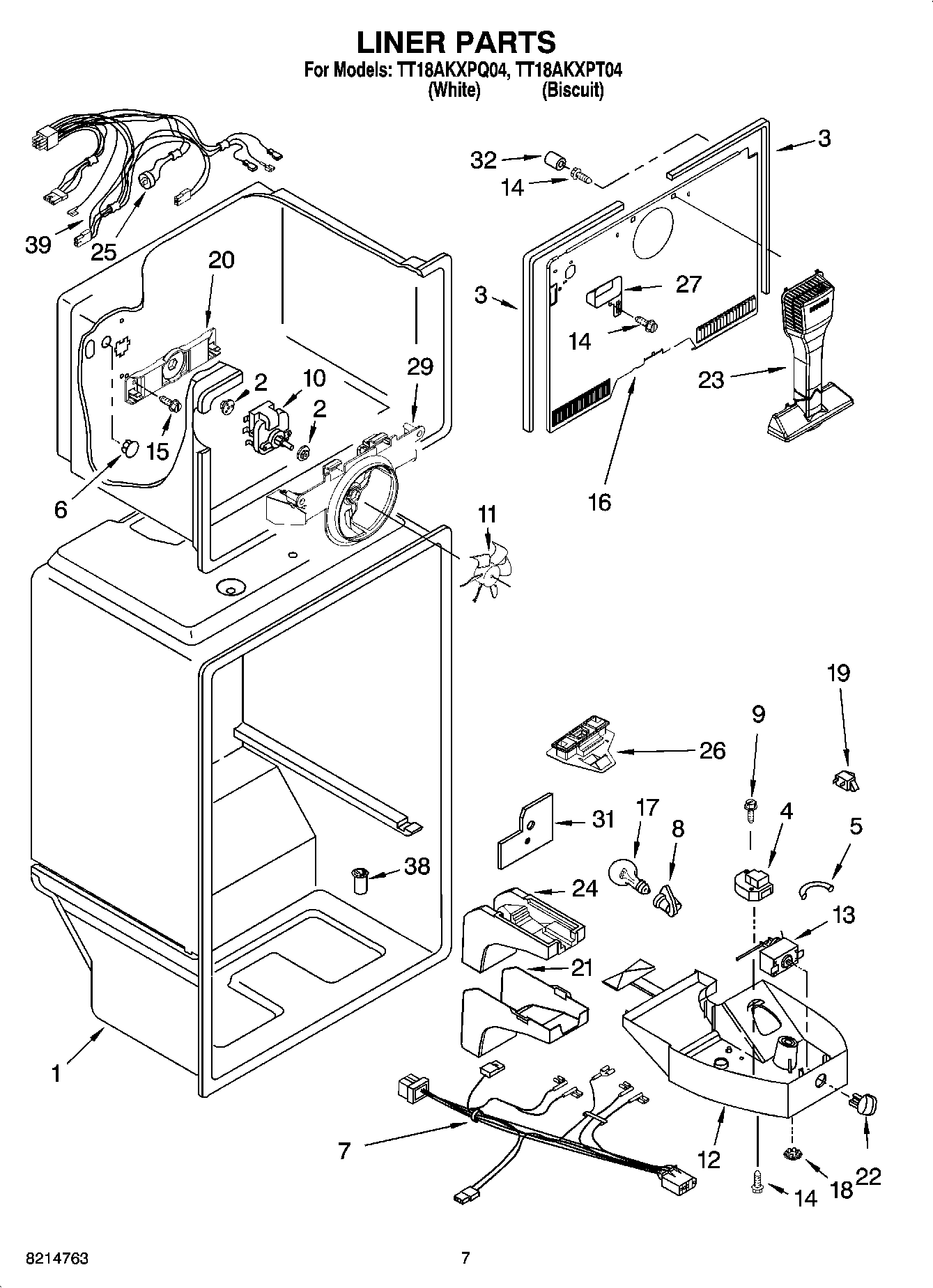

TT18AKXPT04 05 – LINER PARTS

TT18AKXPT04 05 – LINER PARTS

Written by

in

TT18AKXPT04 05 – LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2WP2264462 Whirlpool Refrigerator Grommet
3WP2254360 Whirlpool Refrigerator Gasket
4WP2314156 Whirlpool Refrigerator Defrost Timer
5WP2196003 Whirlpool Refrigerator Bar Riser
6WP941839 Whirlpool Refrigerator Button Plug
7Wire Assembly Control Box
84387478 Whirlpool Refrigerator Light Socket
9WP98129 Whirlpool Screw
10WPW10189703 Whirlpool Refrigerator Evaporator Fan Motor
11WP2163777 Whirlpool Refrigerator Fan Blade
12Control Box
13WP2204605 Whirlpool Refrigerator Thermostat
14WP489478 Whirlpool Refrigerator Screw
15WP488163 Whirlpool Refrigerator Screw
16Cover-Evaporator
17W10887190 Whirlpool Refrigerator Light Bulb
18940014 Whirlpool Refrigerator Primary Button Plug
19W11384469 Whirlpool Door Switch
202254454 Whirlpool Refrigerator Bracket
21Cover, Air Diffuser
22WP2202885 Whirlpool Refrigerator Thermal Knob
23WP2254354 Whirlpool Refrigerator Air Tower
24WP2189452 Whirlpool Refrigerator Diffuser
25WP2321800 Whirlpool Refrigerator Bimetallic Defrost
26Air Separator Assembly
27Cover, Hole
29BRACKET, FAN MOTOR
31Shield, heat
32WP487996 Whirlpool Refrigerator Cap Tube
38WP2210509 Whirlpool Refrigerator Tub Valve
39Wire Assembly Freezer Compt. (Includes Item 32)
