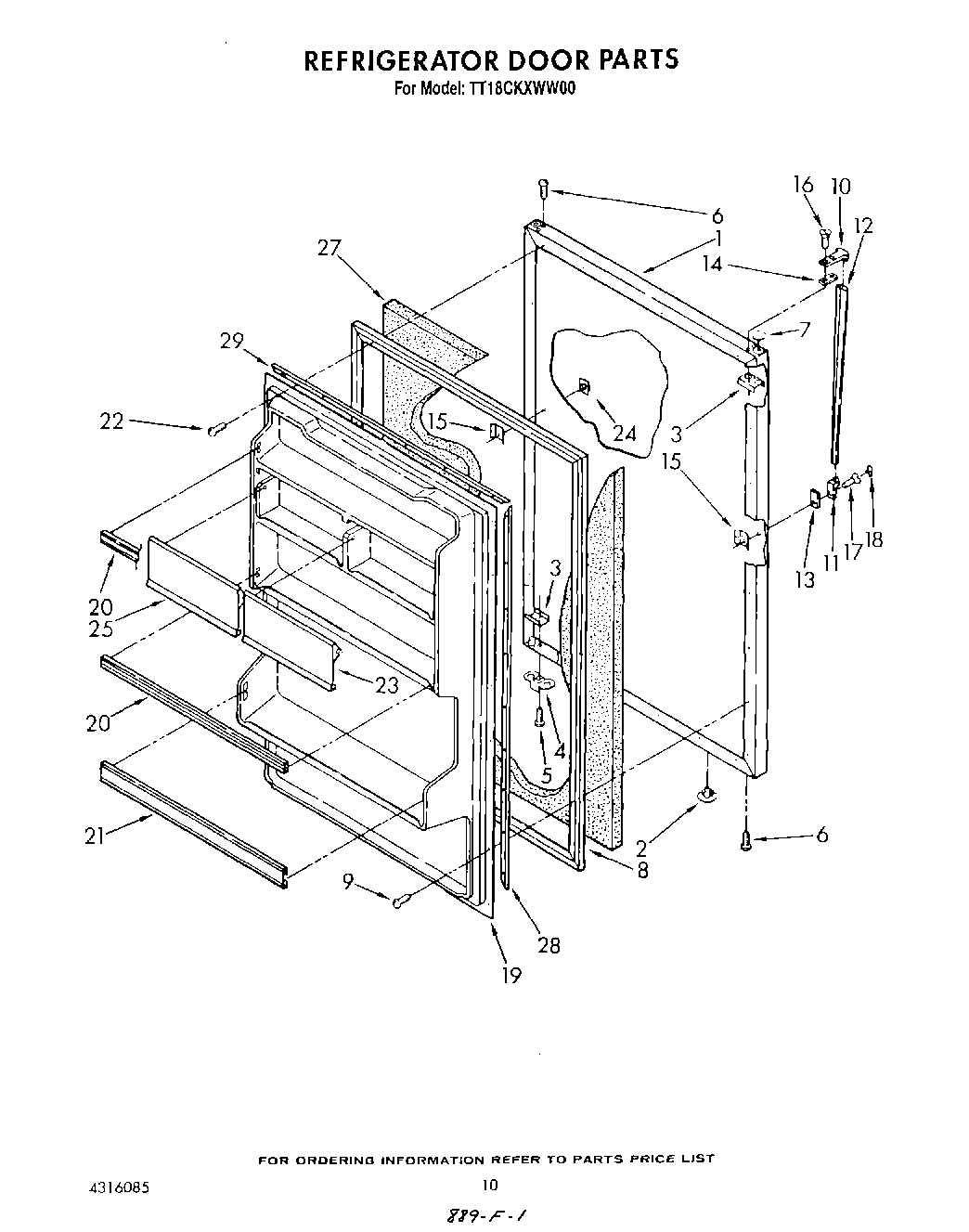

TT18CKXWG00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

TT18CKXWG00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Written by

in

TT18CKXWG00 08 – REFRIGERATOR DOOR , NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
Torx Key
285006 Whirlpool Spray
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
350942 Whirlpool Spray Paint
WPL LIT4316085
Leveler (Thinner)
350956 Whirlpool Spray Assembly
WPL LIT2149680
WPL LIT2151712
WPL LIT2151761
1Panel, Refrigerator Door (Almond)
1Panel, Refrigerator Door (White)
2Hole Plug (2)
3W10833053 Whirlpool Refrigerator Plate
4Bracket, Door Stop
5WP488921 Whirlpool Refrigerator Screw
6Screw (Repair)
6WP8281206 Whirlpool Refrigerator Screw
7WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7Hole Plug (Almond)
8Door Gasket, Magnetic
9WP489069 Whirlpool Compactor Screw
10819342 Whirlpool Refrigerator Endcap Kit
12Handle, Center (Golden Harvest)
13Shim, Handle End
14Spa
15WP939101 Whirlpool Refrigerator Plate
16WP488920 Whirlpool Refrigerator Screw
16Screw (Repair)
17WP488729 Whirlpool Refrigerator Door Screw
18WP1101634 Whirlpool Refrigerator Cover
19Interior Door Panel
20Trim, Door (2)
21Trim, Door
23Compartment Door, Butter
24Hole Plug, Handle (Almond)
24WP2189000 Whirlpool Refrigerator Handle Plug
25Compartment Door, Utility
28Gasket Retainer, Side (2)
2972017 Whirlpool Appliance Touch-Up Paint White
29799344 Whirlpool Refrigerator Paint
29Gasket Retainer, Top & Bottom (2)
29WP72107 Whirlpool Touchup
29Almond (Uncut)
29WPL 876029
29TAPE, VINYL (3/4 X 108“)
29WP542638 Whirlpool Refrigerator Grease
29WP505587 Whirlpool Refrigerator Sealer
29WP503695 Whirlpool Refrigerator Sealer
29876370 Whirlpool Refrigerator Insulation
2972032 Whirlpool Touch Up Paint Black
29833938 Whirlpool Refrigerator Terminal
29WPL 799833
29606755 Whirlpool Refrigerator Bag
29511873 Whirlpool Refrigerator Paint
29212643 Whirlpool Refrigerator Permagum Sealer
29CEMENT, ALUMILASTIC (1 1/4 OZ.)
