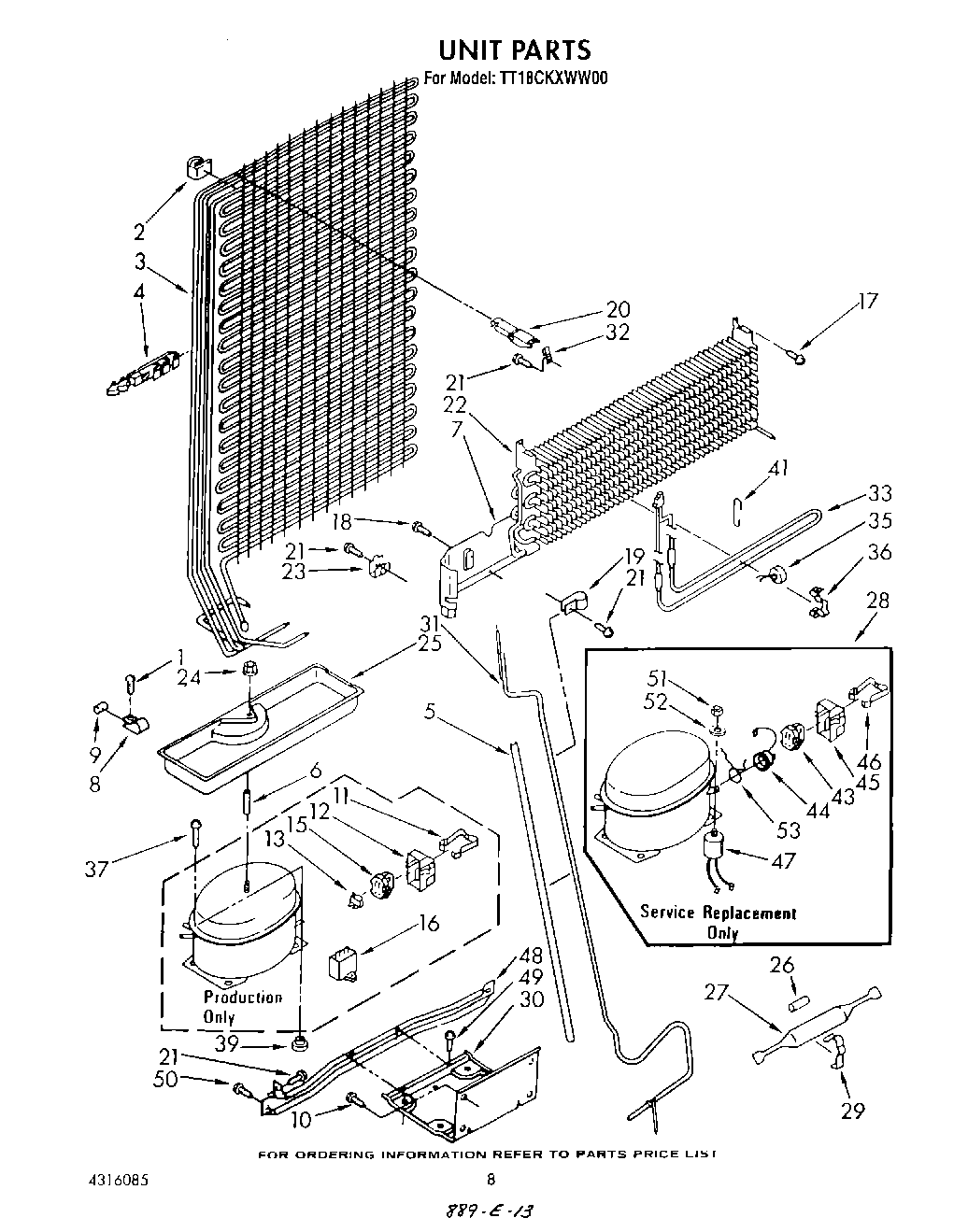

TT18CKXWW00 07 – UNIT

Products

Position	Product
1	Screw, 8-32 x 1/2
2	Bumper (2)
3	Condenser & Precooler Assembly
4	Clip, Tube (2)
5	WP2002171 Whirlpool Refrigerator Sleeve
6	Spacer
7	Heat Shield Evaporator
8	Clamp Tube
9	Dampener
10	WP489069 Whirlpool Compactor Screw
12	Cover
13	Overload
16	WPW10662129 Whirlpool Refrigerator Run Capacitor
17	WP489174 Whirlpool Refrigerator Screw
19	Tube, Clamp
20	Condenser, Stand-Off
21	WP489478 Whirlpool Refrigerator Screw
21	SCREW
22	Evaporator
23	4386951 Whirlpool Refrigerator Clip
24	285002 Whirlpool Nut
25	Evaporator Tray
26	Restrictor Sleeve
27	W10843121 Whirlpool Refrigerator Tube
28	Compressor (Includes Items 43, 44, 45, 46, 47, 51, & 52) (Also Order 482801 Mounting Kit & 876765 Tu
29	Clamp, Dryer
30	Unit Mounting Plate
31	Exchanger, Heat
32	Clip, Stand Off
33	Heater, Defrost
35	WP4387499 Whirlpool Refrigerator Bimetallic Defrost
36	Clamp
39	876811 Whirlpool Grommet
41	Support, Heater
43	WP2262181 Whirlpool Refrigerator Start Relay
44	Overload
45	Cover, Terminal
46	Strap
47	Capacitor
48	Unit Mounting Rail
49	WP965173 Whirlpool Dishwasher Screw
50	WP489427 Whirlpool Refrigerator Screw
51	Nut
52	Washer
53	876764 Whirlpool Refrigerator Primary Valve
53	VALVE, ACCESS (5/8“)
53	Overload Spring
53	VALVE, ACCESS (1/2“)
53	WP978025 Whirlpool Refrigerator Valve
53	978030 Whirlpool Refrigerator Valve
53	978026 Whirlpool Refrigerator Primary Valve
53	978027 Whirlpool Refrigerator Primary Valve
