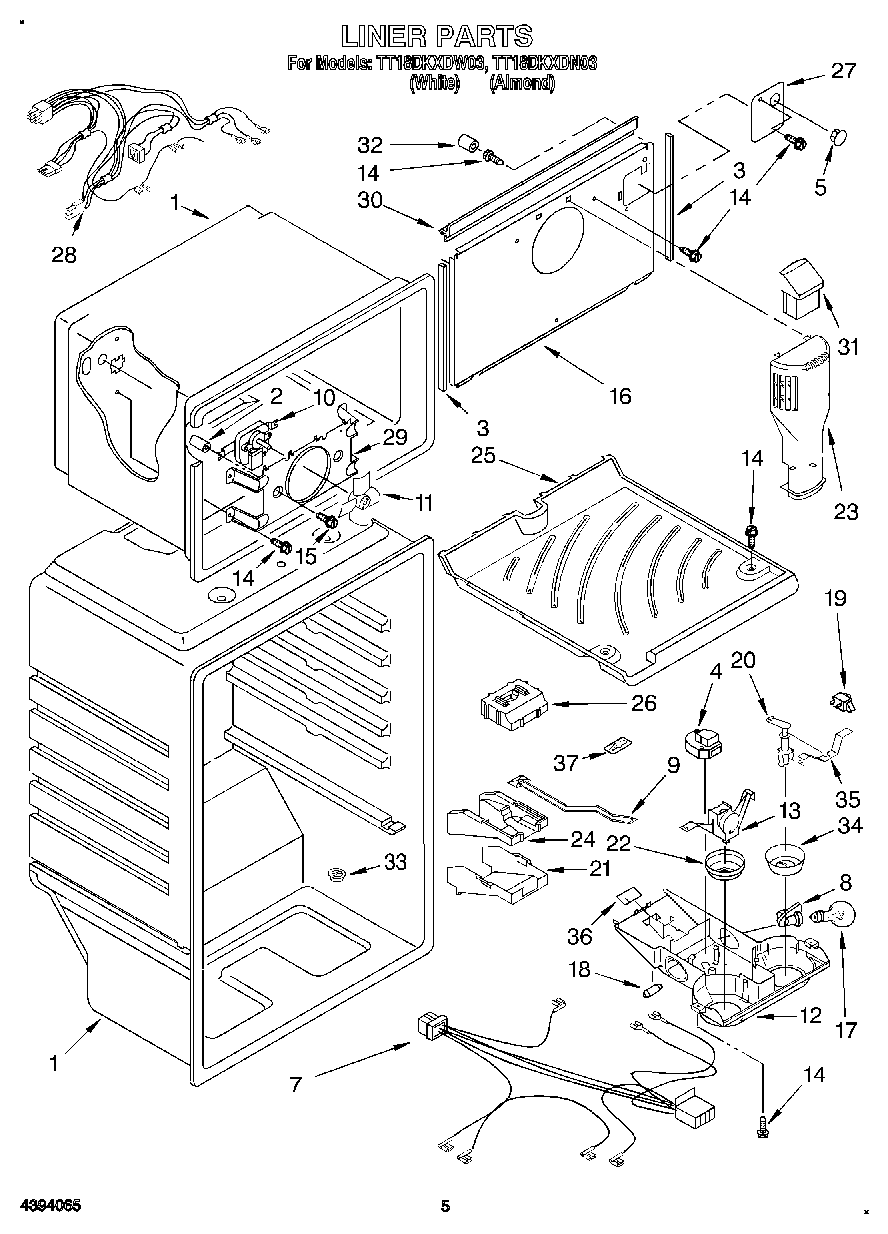

TT18DKXDW03 03 – LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Grommet
4	WP2183400 Whirlpool Defrost Timer
5	WP941839 Whirlpool Refrigerator Button Plug
6	940014 Whirlpool Refrigerator Primary Button Plug
7	Wire Assy. Control Box
8	4387478 Whirlpool Refrigerator Light Socket
9	Damper, Air
10	Fan Motor
11	WP2163777 Whirlpool Refrigerator Fan Blade
12	Control Box
13	4387562 Whirlpool Refrigerator Thermostat Temperature Cold Control
14	WP489442 Whirlpool Refrigerator Screw
15	Screw
16	Cover, Evaporator
17	W11679940 Whirlpool Refrigerator Light Bulb Assembly
18	Weight, Thermal
19	W11384469 Whirlpool Door Switch
20	Post, Damper
21	Cover, Air Diffuser
22	Knob, Thermostat
23	Air Tower
24	WP2189452 Whirlpool Refrigerator Diffuser
25	Freezer Floor
26	Air Diffuser, Top
27	WP2217784 Whirlpool Refrigerator Cover
28	Wire Assembly, Freezer Compartment
29	Bracket, Fan Motor
30	WP2254360 Whirlpool Refrigerator Gasket
31	4388450 Whirlpool Refrigerator Insert
32	WP487996 Whirlpool Refrigerator Cap Tube
33	WP2210509 Whirlpool Refrigerator Tub Valve
34	Knob, Damper
35	Bracket, Damper Knob
36	WP2205079 Whirlpool Refrigerator Seal
37	Clip, Defrost Timer
