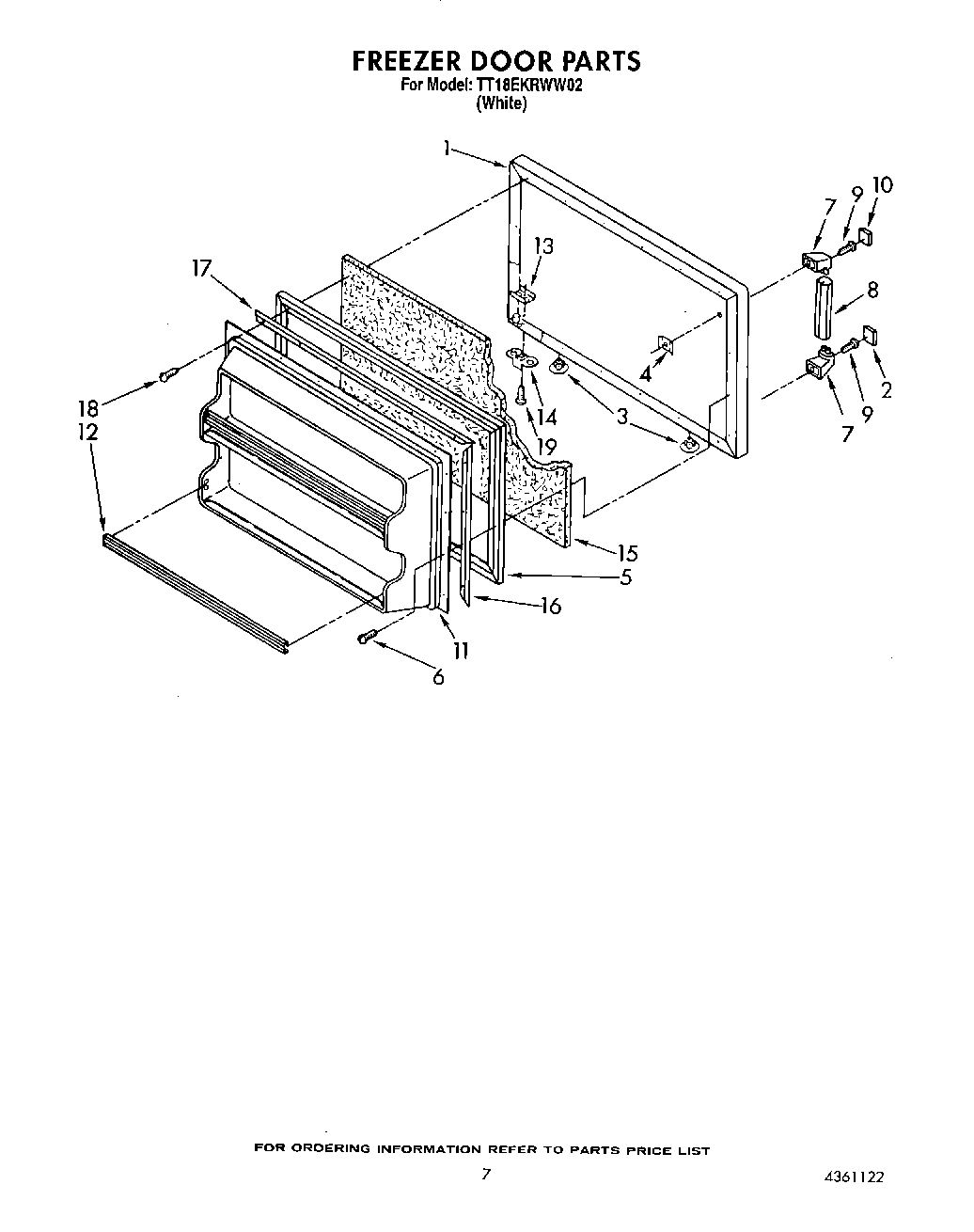

TT18EKRWW02 06 – FREEZER DOOR

TT18EKRWW02 06 – FREEZER DOOR

Written by

in

TT18EKRWW02 06 – FREEZER DOOR

Products

PositionProduct
1Panel, Freezer Door (Also Order Item 15) (White)
2Insert, Screw Cover
3Hole Plug (2)
4WP939101 Whirlpool Refrigerator Plate
5Door Gasket, Magnetic
6WP489069 Whirlpool Compactor Screw
7End Cap, Handle (2)
8Handle, Center
9Screw, 8-15 x 1-5/8
10Insert, Screw Cover
11Panel, Interior Door (Freezer)
12Trim, Door Shelf
13W10833053 Whirlpool Refrigerator Plate
14Bracket, Door Stop
15WPL 876029
16Gasket Retainer, Side (2)
17Gasket Retainer, Top & Bottom (2)
18WP488729 Whirlpool Refrigerator Door Screw
19WP488921 Whirlpool Refrigerator Screw
